Electrical Inspection Tools Every Pro Should Carry

Electrical inspection requires a layered set of tools because no single instrument tells the whole story. A loose connection looks normal in voltage testing but reads hot on a thermal camera. A failing breaker passes a continuity check but draws too much current under load. Carrying the right combination of instruments gets you from "looks fine" to "actual condition" in minutes.

Tier 1: The Essentials

1. True RMS Clamp Meter

The clamp meter measures current without breaking the circuit. Must be true RMS to read accurately on harmonic loads (electronics, VFDs, computer power supplies). Average sensing meters are 10 to 50 percent off on modern non resistive loads.

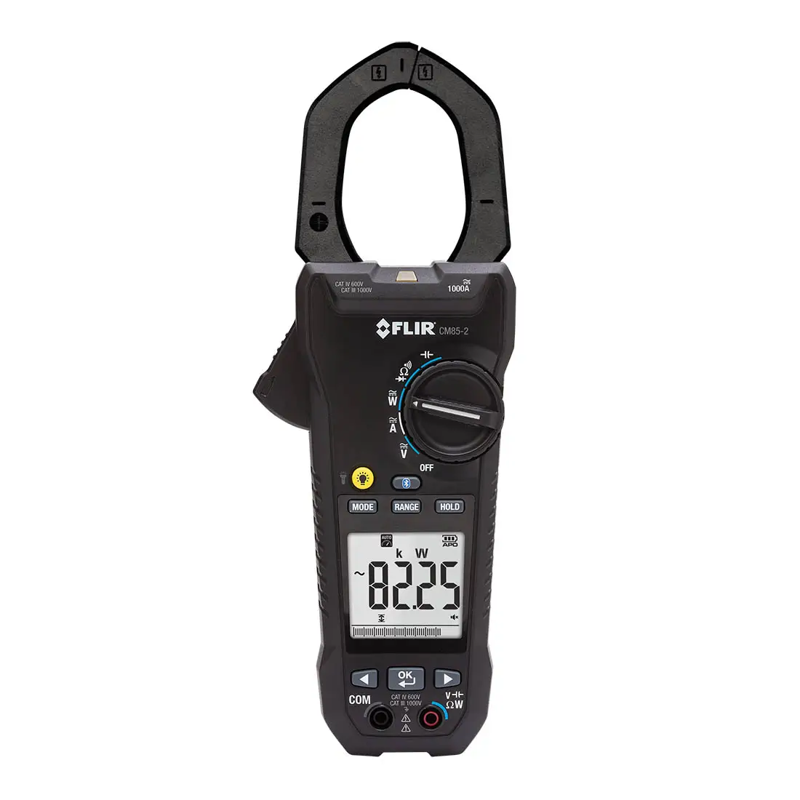

Browse true RMS clamp meters from Extech and FLIR.

2. Non Contact Voltage Tester

A NCV tester glows when held near a live wire. Useful for confirming a circuit is dead before working on it. Tests pass through insulation so no contact required.

3. Multimeter

For voltage and resistance readings. Most quality clamp meters include multimeter functions, but a dedicated DMM has higher resolution for precise work.

Tier 2: Thermal Imaging

A thermal camera reveals overheating connections, overloaded breakers and bad joints from across the room. Look for a temperature differential of 15 to 30 degrees Fahrenheit between adjacent breakers as the warning sign.

Resolution recommendations:

• 160 by 120 entry level (residential service)
• 320 by 240 professional (commercial inspection)
• 640 by 480 industrial (large facility, R&D)

Tier 3: Inspection Cameras

A borescope with a flexible camera tip slides into electrical enclosures, behind panels and into conduit runs. Useful for finding the cause of a short, inspecting wire condition without dismantling and documenting hidden damage for reports.

Tier 4: Specialized

• Insulation resistance tester (megger). Tests cable insulation under high voltage stress.
• Power quality analyzer. Logs harmonics, voltage sags and current imbalance.
• Ground impedance tester. Verifies the resistance of grounding conductors.
• Phase rotation meter. Confirms three phase rotation direction.

Personal Protective Equipment

• Voltage rated gloves (Class 0 for 1000V or less)
• Safety glasses with side shields
• Arc rated face shield for panel work
• Insulated tools rated for the working voltage
• Non conductive footwear

How to Use the Combination

The most efficient inspection workflow is:

1. Walk the panel with the thermal camera (find hot spots)
2. Confirm the load on each hot circuit with the clamp meter
3. Verify dead state with the NCV tester before opening
4. Open the panel and inspect with eyes plus borescope
5. Document findings with thermal + visible image pairs

This sequence finds bad connections, overloaded circuits and hot breakers in 5 to 10 minutes per panel vs hours of manual inspection.

Calibration Schedule

Common Mistakes

• Using an average sensing meter on harmonic loads (incorrect readings)
• Skipping the thermal scan (missing failing connections)
• Not verifying dead state before opening
• Inadequate PPE for panel work
• Tools not calibrated (data not defensible)

The cost of a complete electrical inspection kit is 2,000 to 5,000 dollars. The savings on a single missed loose connection (which causes a fire) covers the kit ten times over. The right tools turn electrical inspection from guesswork into evidence.
