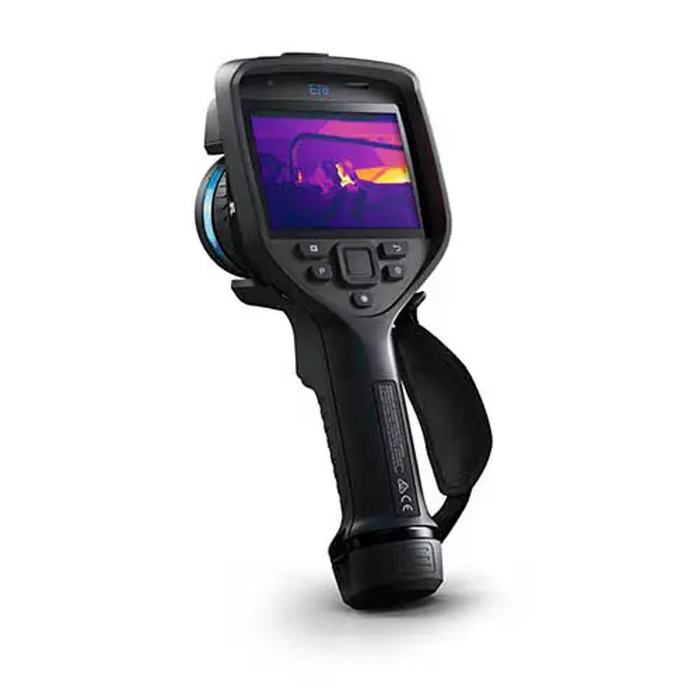

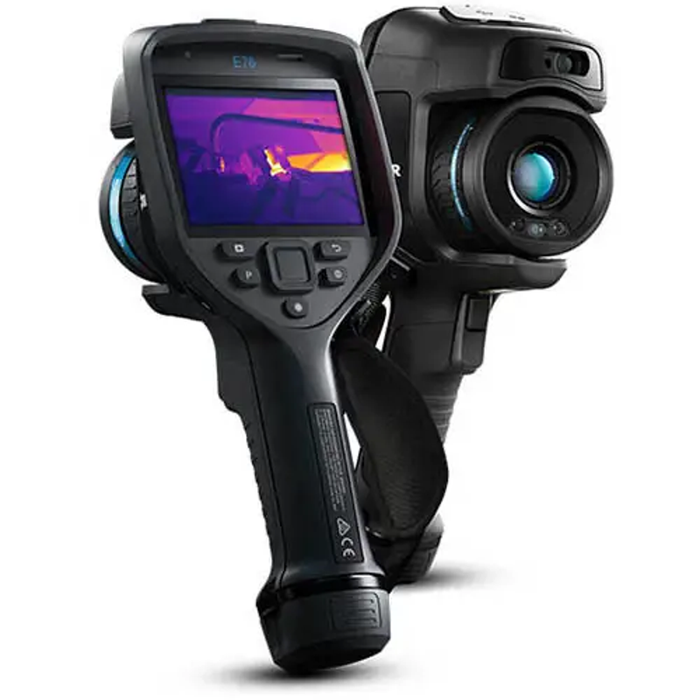

The Teledyne FLIR E76-24-14 Advanced Thermal Imaging Camera delivers unmatched flexibility and clarity for professional thermal inspections. Equipped with interchangeable AutoCal lenses, including both 24° and 14° options, it ensures optimal focus whether you're conducting wide-area roof scans or zooming in on distant electrical components. Its 320 x 240 resolution provides detailed imagery, further enhanced with MSX and UltraMax technologies for improved definition and analytical depth.

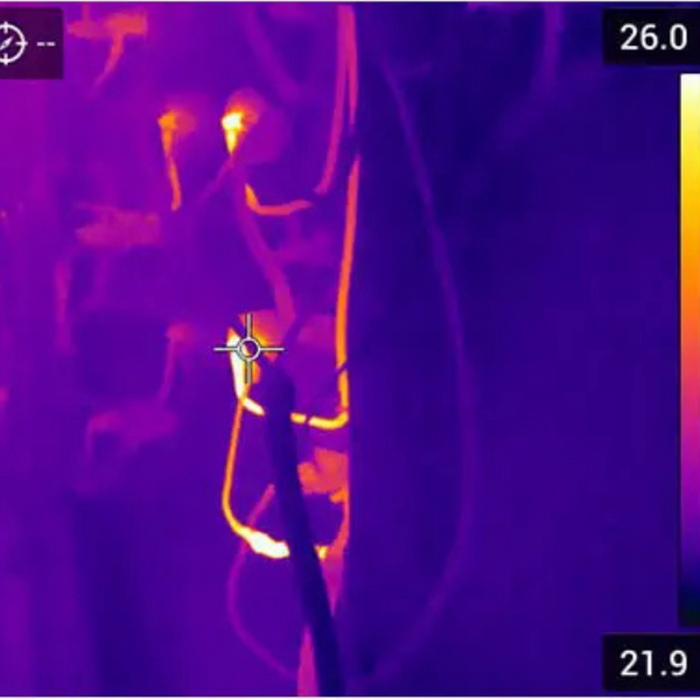

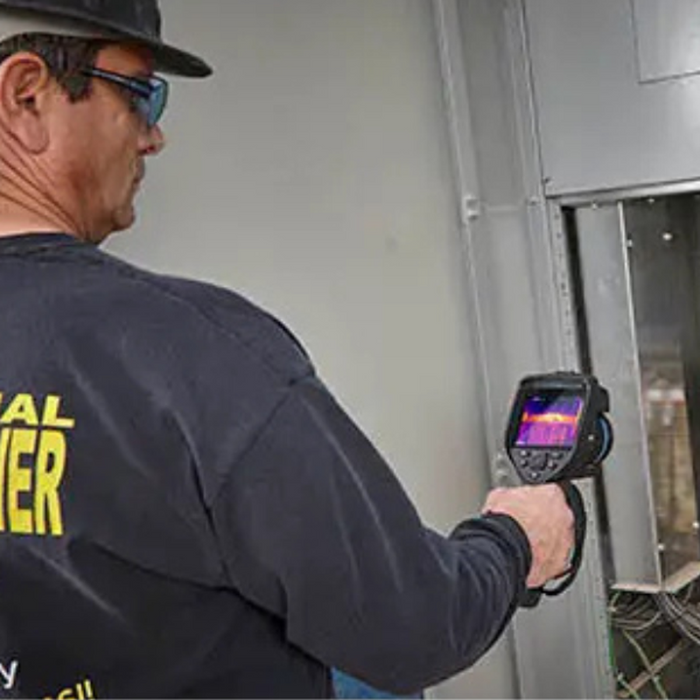

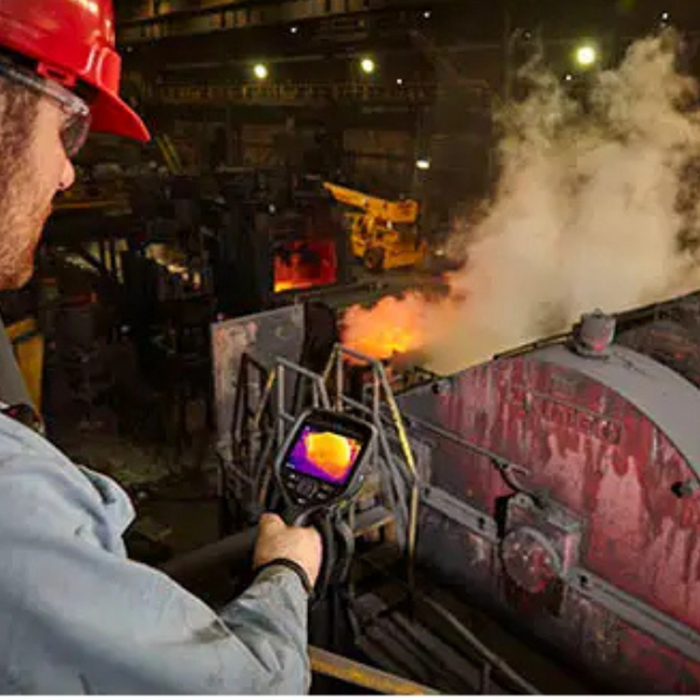

The E76 features laser-assisted autofocus, on-screen area measurement, and optional high-temperature measurement capabilities up to 1000°C (1832°F), making it highly effective across building diagnostics, electrical evaluations, and mechanical inspections. The user-friendly interface, intuitive controls, and large 4-inch touchscreen offer seamless operation in demanding environments.
MSX (Multi-Spectral Dynamic Imaging) enhances thermal images by overlaying visible spectrum details, while UltraMax creates ultra-sharp visuals by combining multiple frames to boost resolution and reduce noise. Teledyne FLIR’s AutoCal lens system ensures consistent, high-precision performance without service interruptions.
Included with the E76 is access to the powerful FLIR Thermal Studio Pro software, designed for managing and reporting thousands of thermal images efficiently. Coupled with the Inspection Route Creator plugin, this camera allows users to streamline data collection through pre-defined paths, enhancing both inspection speed and data organization.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° (17 mm) Standard Lens
- 14° (29 mm) Telephoto Lens
- Rechargeable Li-ion Battery
- SD Card for Image Storage
- FLIR Thermal Studio Pro Software Access
- USB-C Cable with Video Output Support
- Built-in Microphone and Speaker
Features
Dual Lens Options for Versatile Imaging
Includes both a 24° wide-angle lens for general use and a 14° telephoto lens for long-range precision imaging.
Enhanced Image Clarity with MSX and UltraMax
MSX provides visible detail overlay on IR images, while UltraMax quadruples the effective resolution through image fusion.
AutoCal Lens Compatibility
Camera automatically recognizes and calibrates new lenses without needing service intervention.
Integrated Inspection Route Support
Built-in FLIR Inspection Route streamlines field inspections with predefined checklists and paths.
Robust Imaging and Recording Features
Records infrared, visual, MSX, and radiometric video with real-time tagging and voice annotations.
Reliable Performance Across Conditions
Withstands temperatures from -15 to 50°C and meets IP54, shock, and vibration standards.
Large Touchscreen Interface
4-inch, high-resolution touchscreen display enables intuitive menu navigation and image review.
Advanced Connectivity Options
Supports USB, Bluetooth, Wi-Fi, and DisplayPort over USB-C for flexible data transfer and sharing.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° (17 mm) Standard Lens
- 14° (29 mm) Telephoto Lens
- Rechargeable Li-ion Battery
- SD Card for Image Storage
- FLIR Thermal Studio Pro Software Access
- USB-C Cable with Video Output Support
- Built-in Microphone and Speaker
Specifications
-
IR Resolution: 320 x 240 pixels
-
Thermal Sensitivity: <50 mK at 30°C (86°F)
-
Field of View: 24° x 18° (standard), 14° x 10° (telephoto)
-
Image Frequency: 30 Hz
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4" LCD, 640 x 480 pixels, touchscreen with auto-rotation
-
Battery Life: Over 2.5 hours
-
Storage: Removable SD card
-
Digital Camera: 5 MP with LED lamp
-
Connectivity: USB 2.0, Wi-Fi, Bluetooth, DisplayPort (USB-C)
-
GPS: Automatic image tagging
-
Measurement Accuracy: ±2°C or ±2% of reading
-
Temperature Ranges: -20 to 120°C, 0 to 650°C, optional up to 1000°C
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
Protection Rating: IP54
-
Shock/Vibration: 25g/2g
FAQ
Q: Can the E76 capture both thermal and visible images?
A: Yes, it supports thermal, MSX, visual, and Picture-in-Picture image modes.
Q: What’s the purpose of UltraMax?
A: UltraMax increases thermal image resolution and reduces noise by fusing multiple frames.
Q: Is the camera suitable for high-temperature measurements?
A: Yes, it can measure up to 1000°C (1832°F) with an optional range.
Q: Does the E76 support wireless file transfers?
A: Yes, it includes Wi-Fi and Bluetooth for wireless connectivity.
Q: How long does the battery last?
A: The battery provides over 2.5 hours of typical use at 25°C (68°F).
