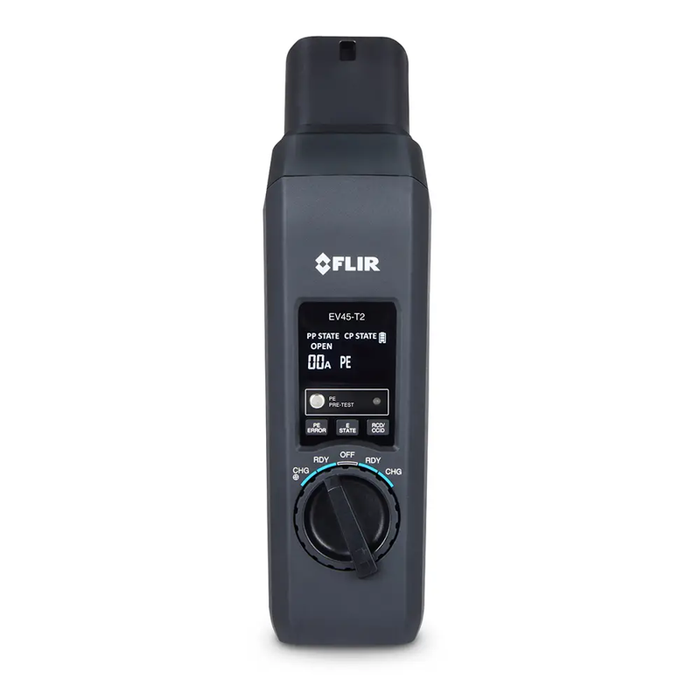

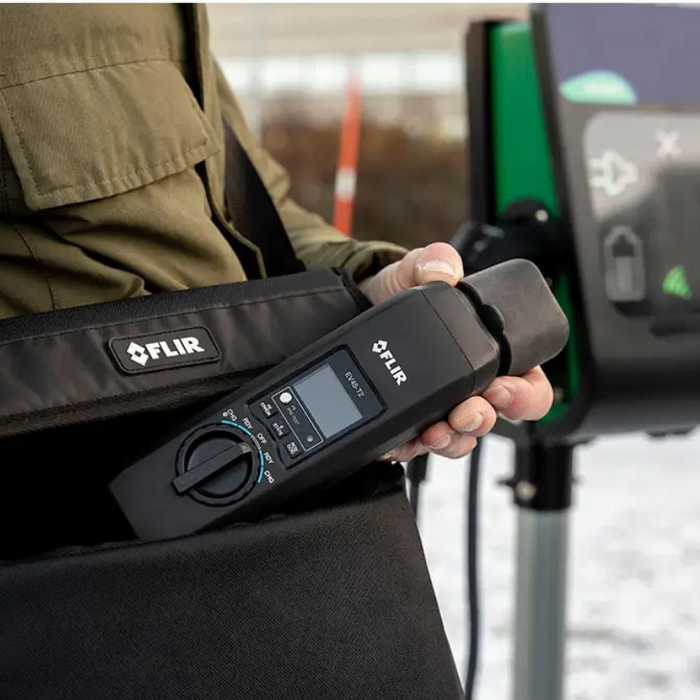

The Teledyne FLIR EV45-T2 EV Charger Test Adapter is a specialized tool designed to test both Type 2 and Type 1 electric vehicle charging connectors, with a converter included for full compatibility. It provides essential testing for EV charging station safety by verifying the integrity of Protective Earth (PE) connections and other electrical wiring standards.
With the ability to simulate different states of the charging protocol (CP and PP states), the EV45-T2 also enables testing of Residual-Current Devices (RCD) and determines the maximum current output of EV chargers. It pairs with FLIR Digital Multimeters (sold separately) for voltage and frequency measurement, supporting compliance with industry safety standards.
What's Included:
- 1 - EV Charger Test Adapter with Type 2 Plug (EV45-T2)
- 1 - Type 1 Converter
- 1 - Test Lead Set
- 4 - AA Batteries
- 1 - Carrying Pouch
- 1 - User Manual
Features

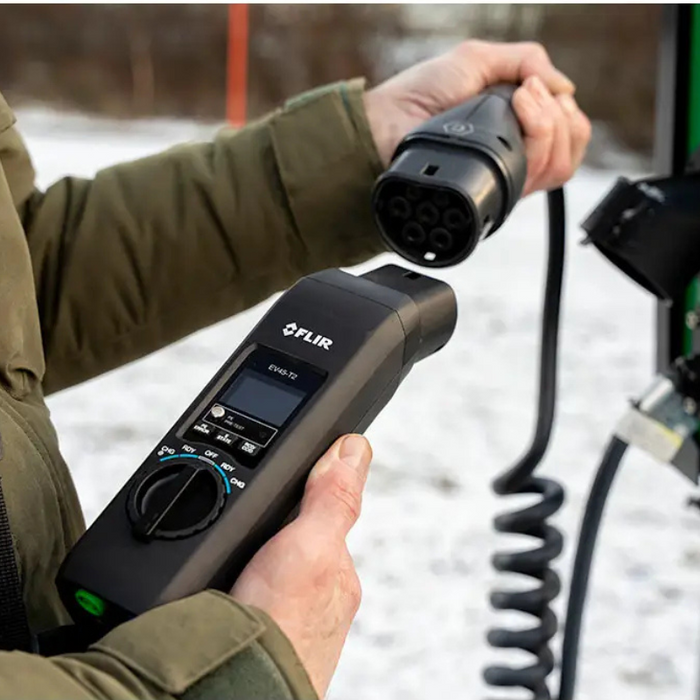

Type 1 and Type 2 Compatibility
Includes a Type 1 converter, making the adapter suitable for both Type 2 and Type 1 EV chargers.
Protective Earth and Wiring Integrity Verification
Ensures the safety of charging stations by verifying PE conductor continuity and wiring configuration.
RCD and CCID Testing
Allows you to test RCD/CCID response to simulated fault conditions for electrical safety compliance.
CP and PP Simulation
Simulates various Control Pilot (CP) and Proximity Pilot (PP) states to test charger functionality across charging scenarios.
Voltage and Frequency Measurement
Measures charging voltage and frequency when used with compatible FLIR Digital Multimeters (sold separately).
Clear Current Output Indication
Displays the EV charger's maximum current output to assist with capacity and safety checks.
Rugged and Certified
Complies with CAT II 300V and IEC 61851-1 standards for EV charging safety and features a 3-year warranty against manufacturing defects.
What's Included

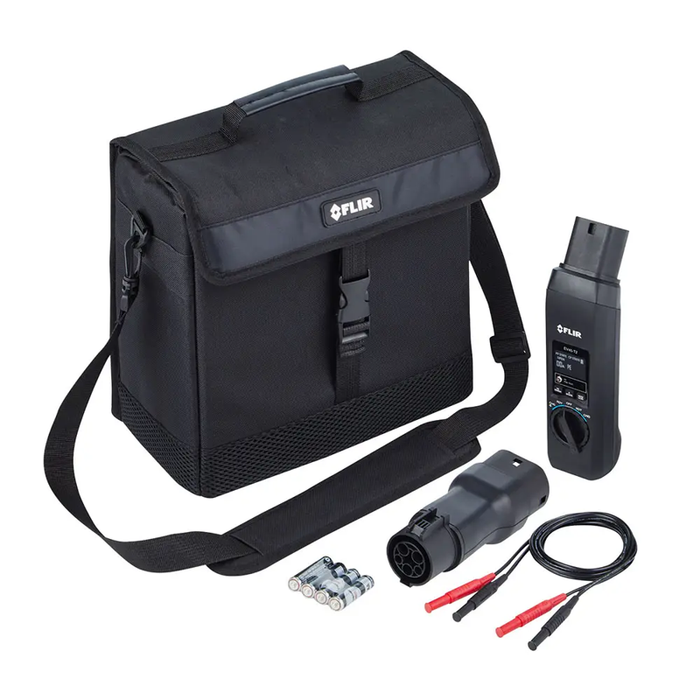

Included with Your Purchase:
- 1 - EV Charger Test Adapter with Type 2 Plug (EV45-T2)
- 1 - Type 1 Converter
- 1 - Test Lead Set
- 4 - AA Batteries
- 1 - Carrying Pouch
- 1 - User Manual
Specifications
-
PE Pre-Test: Pass/Fault (>50 VAC/DC between PE conductor and touch sensor)
-
PP State Indication: Open, 13A, 20A, 32A, 63A
-
CP State Simulation: A (Disconnected), B (Connected), C (Charging), D (Charging with Ventilation), E (Error)
-
Voltage Phase Indication: L1, L2, L3
-
CP Error Simulation: Pass/Fault (CP signal short-circuited to PE)
-
PE Error Simulation: Pass/Fault (Interruption of PE conductor)
-
RCD/CCID Trip Test: Pass/Fault (Tests RCD/CCID activation when tripped)
-
Measuring Terminals: L1, L2, L3, PE, N - Max. 250V (Single Phase)/430V (3-Phase), 50/60 Hz, CAT II 300V, Max. 10A
-
Battery: 4x AA alkaline batteries
-
Battery Life: Approximately 100 hours
-
Certifications: ETL, CE, RCM
-
Safety Standards: IEC 61010-1 CAT II 300V
-
EMC Standards: EN61326-1
FAQ
Q: Can this adapter test both Type 2 and Type 1 EV connectors?
A: Yes, the adapter includes a Type 1 converter, making it compatible with both Type 2 and Type 1 chargers.
Q: Does the device test for RCD/CCID faults?
A: Yes, it simulates fault conditions to verify the proper function of RCDs and CCIDs.
Q: How does it measure voltage and frequency?
A: When connected to a FLIR Digital Multimeter (sold separately), it can measure voltage and frequency during EV charger testing.
Q: Is it compliant with international safety standards?
A: Yes, it complies with CAT II 300V, IEC 61010-1, and IEC 61851-1 safety standards.
