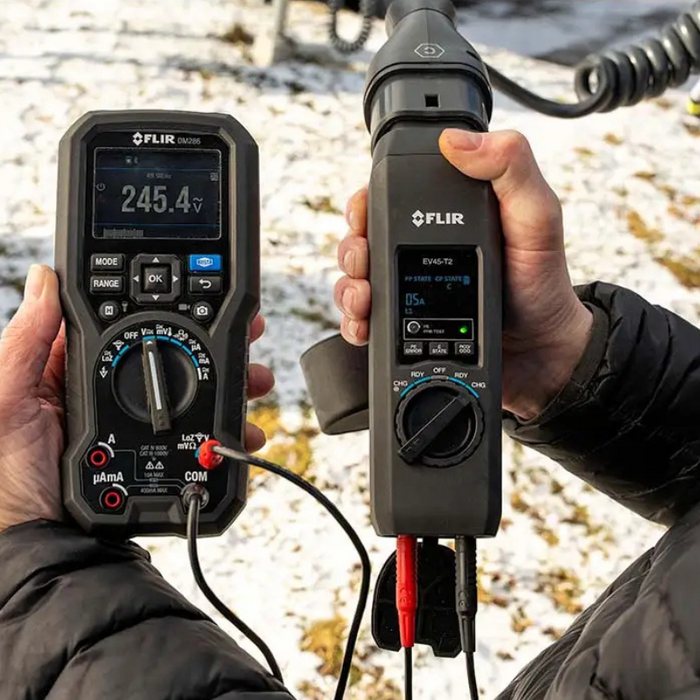

The Teledyne FLIR EV-KIT-2 EV Charger Test Kit is an advanced diagnostic and testing solution tailored for electric vehicle service equipment (EVSE). It includes the EV45-T2 Test Adapter with a Type 2 plug and Type 1 converter, the DM286 Industrial Thermal Imaging Multimeter, and essential test leads for comprehensive evaluations.

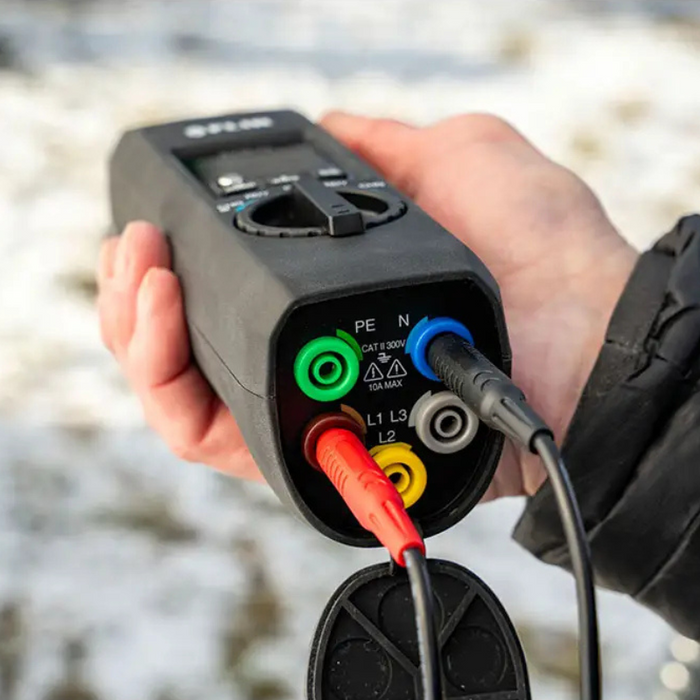

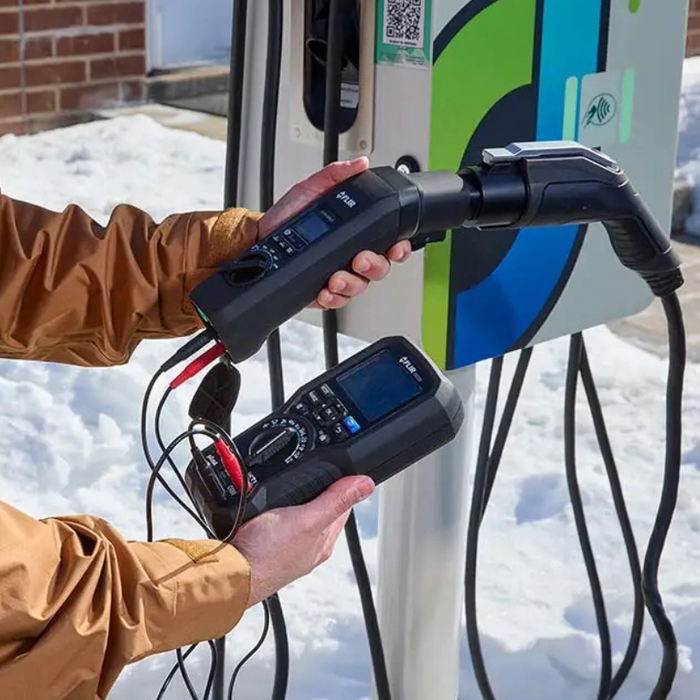

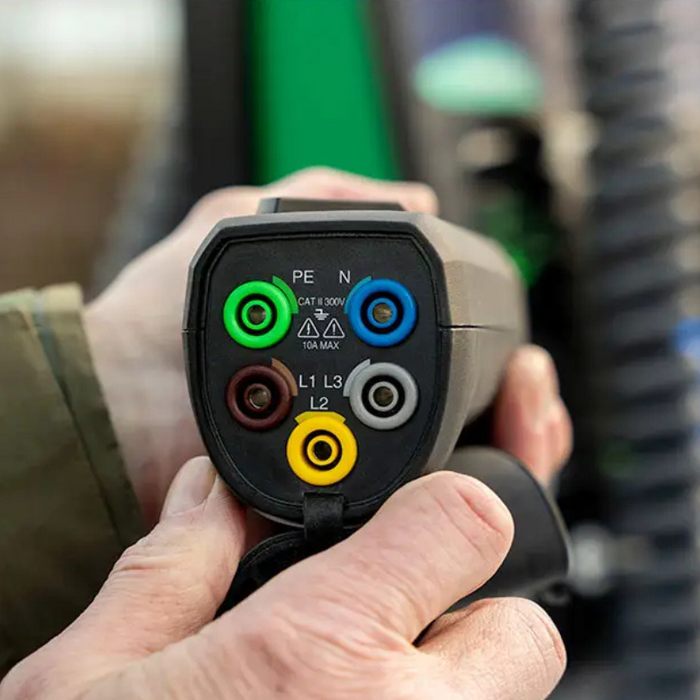

Engineered for safety and versatility, the EV45-T2 adapter checks electrical integrity, verifies Protective Earth (PE), and tests Residual-Current Devices (RCDs). Paired with the DM286, users can assess charging voltage and frequency, ensuring EV chargers perform reliably and safely.

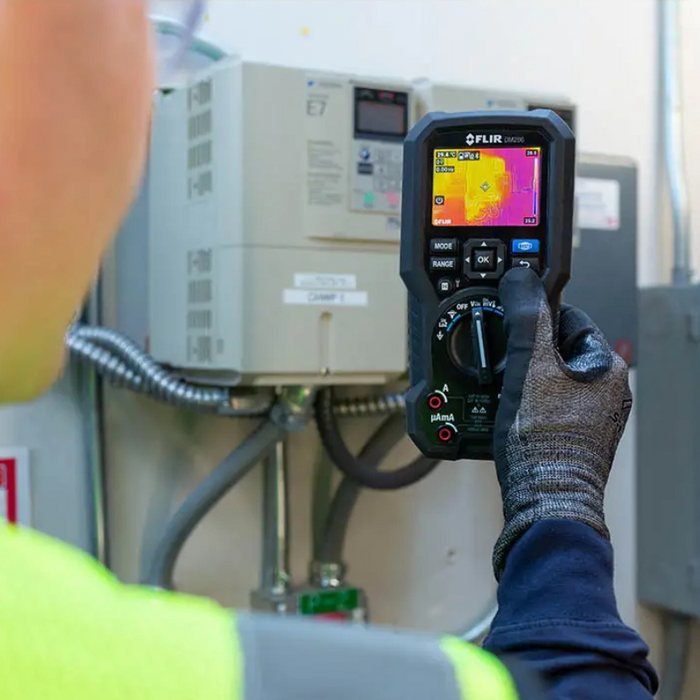

The DM286 multimeter enhances safety with non-contact infrared thermal inspections, combining IGM and MSX imaging for precise troubleshooting. It captures up to 30,000 images and supports thermal and visual video recordings, ideal for real-time analysis and long-term monitoring through the METERLiNK app.

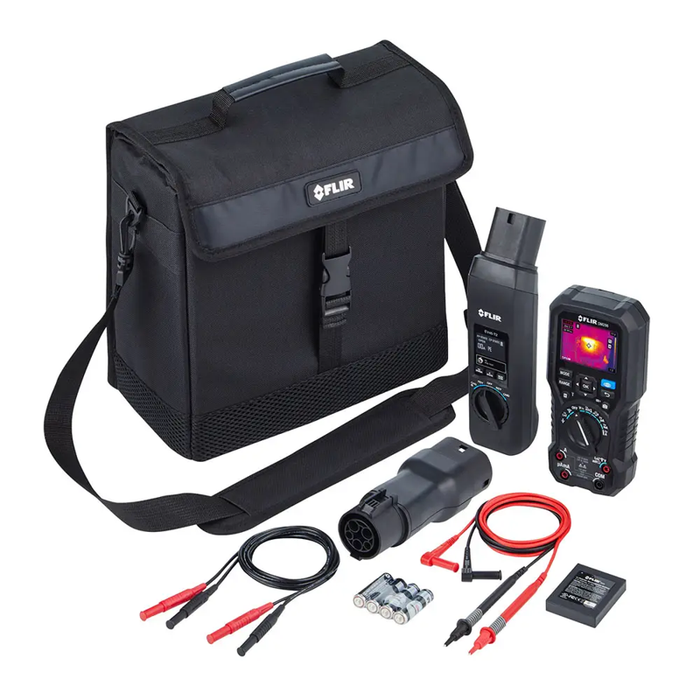

What's Included:
- 1 - EV Charger Test Adapter with Type 2 Plug (EV45-T2)
- 1 - Type 1 Converter
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Test Lead Set
- 1 - Type A-to-Type C USB Cable
- 4 - AA Batteries
- 1 - Rechargeable Lithium-Polymer Battery, 3V/3050 mAh (TA04)
- 1 - Carrying Pouch
- 1 - User Manual
Features
Comprehensive Testing Kit
Combines EV45-T2 Test Adapter, DM286 Multimeter, and leads for full EVSE diagnostics.
Adapter Compatibility and Safety
Works with both Type 2 and Type 1 EV chargers; verifies PE, wiring integrity, and tests RCDs.
Thermal Imaging Multimeter
Detects hot spots and hidden issues with infrared imaging and electrical measurement functions.
Data Logging and Storage
Stores up to 30,000 images and 100 logs; records thermal and visual videos.
Mobile Integration
Seamless pairing with the METERLiNK app for real-time data sharing and analysis.
Durable and Certified
Certified to ETL, CE, RCM standards with CAT II and CAT IV safety compliance for professional use.
What's Included
Included with Your Purchase:
- 1 - EV Charger Test Adapter with Type 2 Plug (EV45-T2)
- 1 - Type 1 Converter
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Test Lead Set
- 1 - Type A-to-Type C USB Cable
- 4 - AA Batteries
- 1 - Rechargeable Lithium-Polymer Battery, 3V/3050 mAh (TA04)
- 1 - Carrying Pouch
- 1 - User Manual
Specifications
-
IR Resolution: 160 x 120 px (19,200 pixels)
-
Thermal Sensitivity: 150 mK
-
IR Field of View: 57° x 44°
-
Temperature Range: 23°F to 572°F (-5°C to 300°C)
-
Image Capture Rate: 9 Hz
-
Visual Camera: 2 MP, fixed focus
-
Display Size: 2.8 in.
-
Multimeter Voltage: 1000V AC/DC
-
Current Range: Up to 10A AC/DC
-
Resistance Range: Up to 60 MΩ
-
Capacitance: 10 mF
-
Adapter Voltage Rating: Max. 250V (Single Phase)/430V (3-Phase)
-
Power Source: 4x AA batteries and 3V Li-Polymer (TA04)
-
Certifications: ETL, CE, RCM, FCC, UKDA, FDA
-
Safety Standards: IEC 61010-1 CAT IV 600V, CAT III 1000V
FAQ
Q: What types of EV chargers does this kit support?
A: It supports Type 2 chargers and, with the included converter, Type 1 chargers as well.
Q: Can the DM286 multimeter store thermal videos?
A: Yes, it can capture both thermal images and video clips.
Q: Is the adapter safe for high-voltage EVSE testing?
A: Yes, it is rated for CAT II 300V and meets IEC 61851-1 standards.
Q: Does the DM286 integrate with any mobile apps?
A: Yes, it integrates with the METERLiNK app for data syncing, sharing, and analysis.
