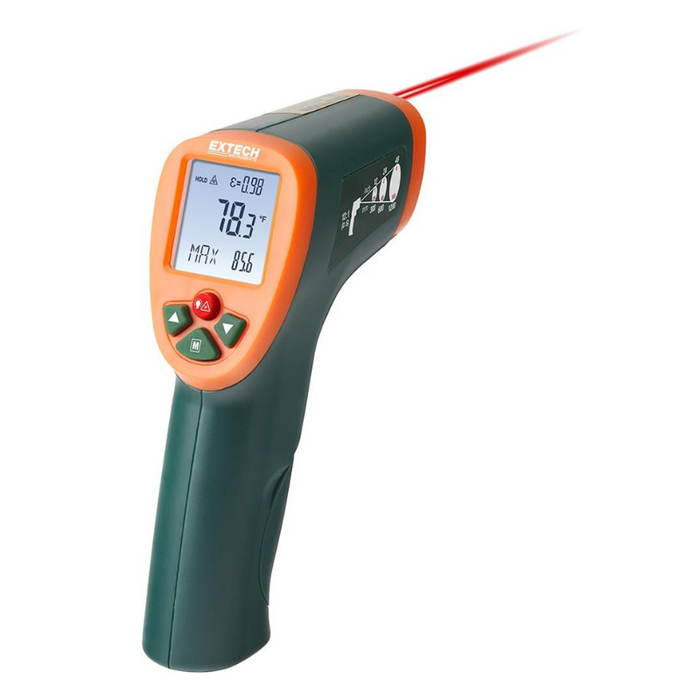

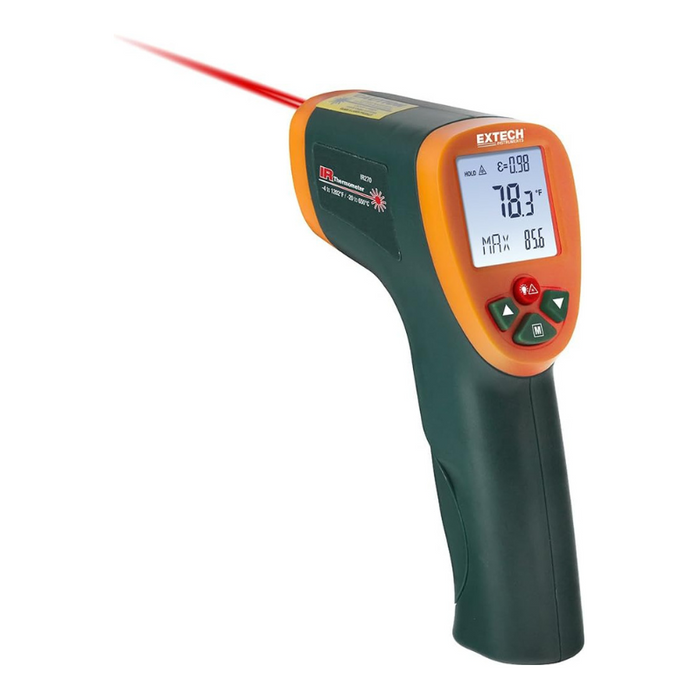

The Extech IR270-NIST is a professional-grade infrared thermometer designed for accurate, non-contact temperature measurement across a wide range of applications. It provides quick readings without physical contact, making it ideal for environments where surface temperature checks must be done safely and efficiently.
Equipped with a built-in laser pointer, the IR270-NIST ensures accurate targeting of measurement areas. Its adjustable emissivity feature enhances precision by allowing adaptation to different material surfaces. The unit offers a wide temperature range from -4 to 1202°F (-20 to 650°C), and features a high-resolution, tri-color LCD display that visually alerts users when readings fall outside set thresholds.
Whether you’re in HVAC, electrical diagnostics, food safety, or industrial maintenance, the IR270-NIST delivers reliability and compliance, thanks to its included NIST calibration.
What's Included:
Features
NIST-Traceable Calibration
Comes with NIST calibration for validated measurement accuracy and compliance in regulated environments.
Wide Temperature Range
Measures non-contact surface temperatures from -4 to 1202°F (-20 to 650°C), suitable for a variety of materials and applications.
Laser Targeting System
Built-in laser pointer with on/off switch identifies exact measurement spot for greater accuracy.
Tri-Color Alert Display
Backlight changes color based on temperature threshold settings—blue for below low alarm, red for above high alarm.
Adjustable Emissivity
Ranges from 0.10 to 1.00, enabling improved accuracy across different surfaces and finishes.
Memory Functions
Stores and recalls up to 20 readings, along with MAX/MIN/AVG/DIF measurement tracking.
User-Friendly Operation
Automatic data hold, bright white backlight for dim settings, and low battery indicator ensure ease of use.
Compact and Portable
Weighing only 5.3oz, it's lightweight and ergonomic for one-handed operation in any field setting.
What's Included
Included with Your Purchase:
Specifications
-
Temperature Range: -4 to 1202°F (-20 to 650°C)
-
Resolution: 0.1°F/°C
-
Accuracy: ±(1% of reading + 2°F/1°C)
-
Distance to Spot Ratio: 12:1
-
Emissivity: Adjustable from 0.10 to 1.00
-
Display: Tri-color LCD with white backlight
-
Memory: 20 readings recall
-
Functions: MAX/MIN/AVG/DIF
-
Power Source: 1 x 9V battery
-
Auto Power Off: Yes
-
Battery Indicator: Yes
-
Dimensions: 7.1 x 4.2 x 1.6 in. (180 x 107 x 40 mm)
-
Weight: 5.3 oz (150 g)
FAQ
Q: What is the benefit of the NIST calibration?
A: NIST calibration certifies that the thermometer meets traceable measurement standards, ensuring consistent and accurate readings.
Q: Can this thermometer be used in low-light environments?
A: Yes, it features a bright white backlight for visibility in dark or poorly lit areas.
Q: How does the color alert system work?
A: The display changes to blue when the temperature is below the low alarm threshold and red when it exceeds the high set point.
Q: Is the emissivity adjustable?
A: Yes, it can be adjusted from 0.10 to 1.00 for improved accuracy on different surfaces.
Resources
Documents:
