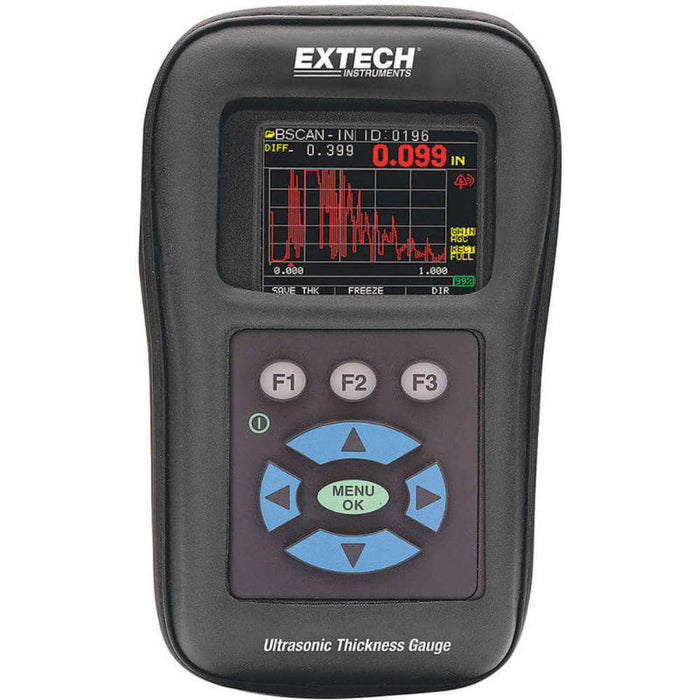

The Extech TKG250 Color Waveform Ultrasonic Thickness Gauge/Datalogger is a rugged, handheld instrument designed for non-destructive wall thickness measurements, primarily in steel and metal structures. With advanced features like a vibrant color LCD, A-scan live waveform display, and B-scan capabilities, it provides reliable and detailed thickness readings in real time.
It builds upon the TKG150 model by adding enhanced data review tools including file comparison and a grid-based review of saved readings. Ideal for quality control and maintenance applications, the TKG250 helps detect thinning due to corrosion or erosion without needing access to both sides of a surface. The built-in non-contact voltage detector adds another layer of functionality and safety for field technicians.
What's Included:
- 1 - 2oz Bottle Couplant
- 2 - AA Batteries
- 1 - Transducer (5MHz, 0.375" diameter)
- 1 - Potted Cable
- 1 - Hard Case
- 1 - Holster
- 1 - USB Cable
Features
Color LCD Display
Provides a crisp, clear view of measurements and waveforms, improving readability in various lighting conditions.
Non-Destructive Wall Thickness Measurements
Enables inspection without damaging the material, ideal for metal structures and pipelines.
Echo-to-Echo Mode
Accurately measures true wall thickness while ignoring coatings and paint layers.
B-scan Imaging
Creates a cross-sectional view of the material thickness, making it easier to detect internal flaws.
Live Waveform (A-scan)
Displays ultrasonic waveforms in real time for verification of proper coupling and measurement accuracy.
Datalogging and Vibration Feedback
Stores readings with timestamp data and vibrates to confirm measurement capture, improving workflow and accuracy.
Built-in Non-Contact Voltage Detector
Enhances safety by detecting electrical fields without contact, helping avoid hazards in the field.
What's Included
Included with Your Purchase:
- 1 - 2oz Bottle Couplant
- 2 - AA Batteries
- 1 - Transducer (5MHz, 0.375" diameter)
- 1 - Potted Cable
- 1 - Hard Case
- 1 - Holster
- 1 - USB Cable
Specifications
-
Brand: Extech
-
Condition: NEW
-
UPC: 793950152508
-
Model Number: TKG250
FAQ
Q: Can the Extech TKG250 measure through paint and coatings?
A: Yes, its Echo-to-Echo feature allows for accurate readings while ignoring paint or coating layers.
Q: Does the TKG250 save readings for later analysis?
A: Yes, it supports datalogging and grid review, and includes Extech XPorter software for data management.
Q: Is the TKG250 suitable for fieldwork?
A: Absolutely. It comes with a holster, hard case, and built-in non-contact voltage detector, making it highly practical for on-site inspections.
Q: What is the function of the live waveform display?
A: The A-scan live waveform helps verify proper probe placement and material coupling during measurement.
