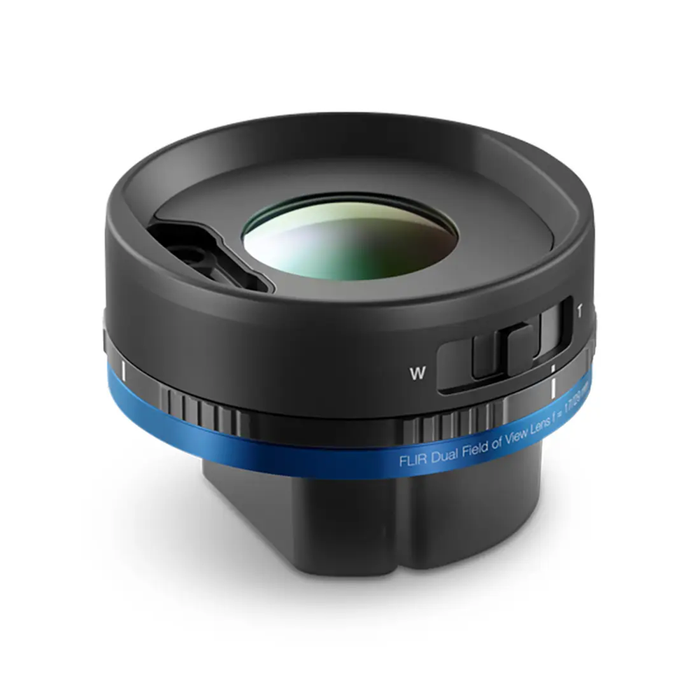

The Teledyne FLIR Lens-IR-17mm-DFOV FlexView Dual FOV 42°/24° Lens is engineered to optimize the capabilities of Exx, Txxx, and Axxx Series Thermal Imagers. Designed to enhance image detail and measurement precision without the hassle of changing lenses, this innovative dual field of view solution ensures quick scanning with a wide angle and precise inspection with a narrower standard view.
With the simple push or pull of a toggle, users can instantly switch between a 42° wide FOV and a 24° standard FOV, improving workflow efficiency and operator safety. Lightweight and durable, the Lens-IR-17mm-DFOV minimizes the risk of lens contamination and damage, especially in challenging environments, and offers greater versatility for a wide range of industrial and building applications.
What's Included:
- 1 - FlexView Dual FOV 42°/24° Lens (T300953)
Features
Dual Field of View Convenience
Switch instantly between wide and standard FOVs with a simple push or pull mechanism, saving time and improving efficiency.
Enhanced Image Accuracy

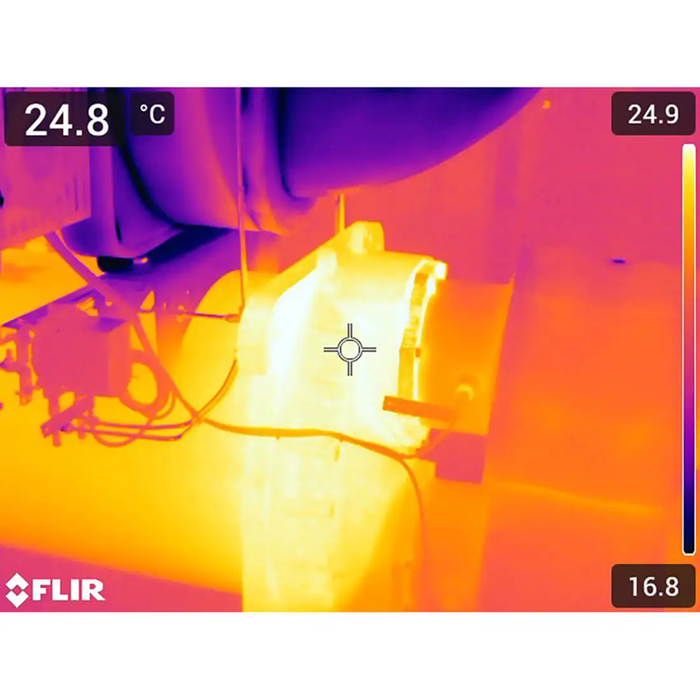

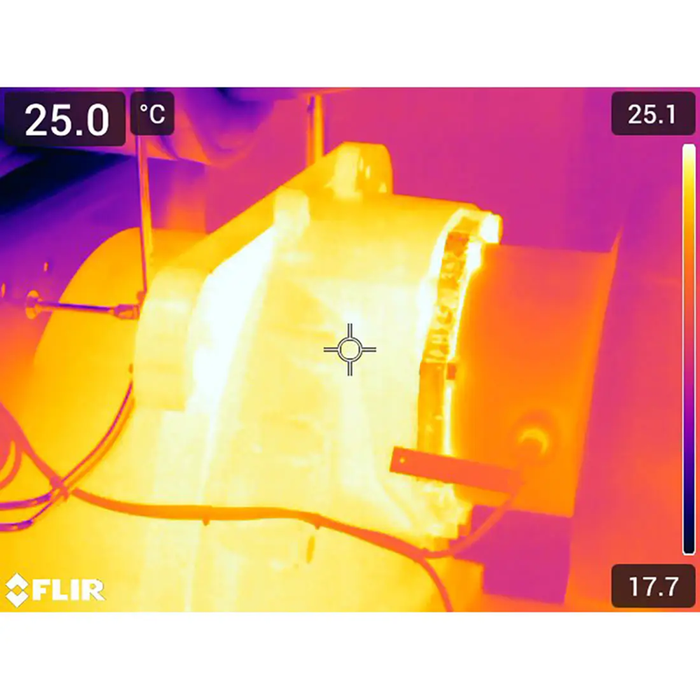

Wide angle for rapid area scans and a narrow angle to maximize pixel density and pinpoint issues accurately.
Increased Worker Safety
Inspect hazardous areas like arc flash zones from a safer distance using the narrow FOV.
Improved Workflow
Eliminates the need to swap lenses in the field, reducing downtime and potential contamination of sensitive components.
Optimized for Versatile Applications
Wide angle covers large assets efficiently, while the standard angle localizes problems effectively.
Lightweight Design
Engineered for easy portability around large or complex job sites.
Reliable Performance in Harsh Conditions
No compromise on visual camera performance even in dusty or wet environments.
Fast Toggle Time
Switch between fields of view in just one second for seamless operations.
What's Included
Included with Your Purchase:
- 1 - FlexView Dual FOV 42°/24° Lens (T300953)
Specifications
-

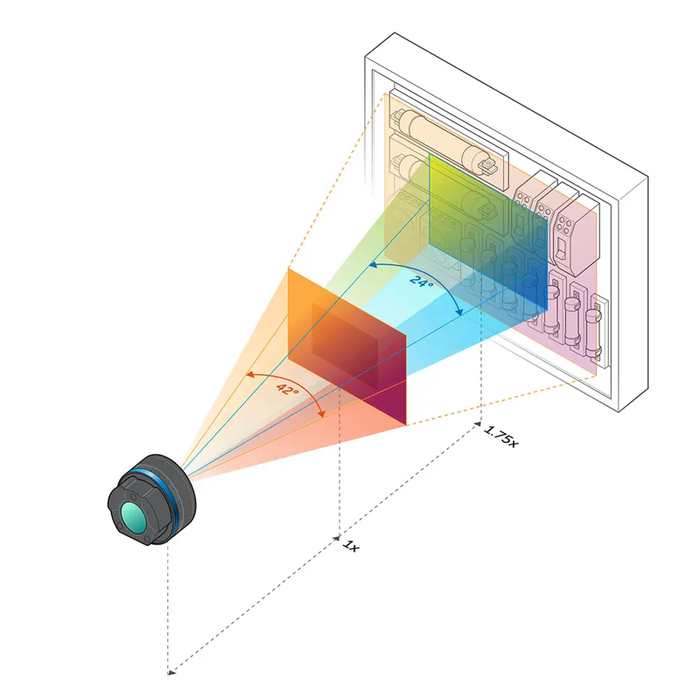

Field of View (FOV): 42° x 32°, 24° x 18°
-
Focal Length: 0.39 in. (42°), 0.67 in. (24°)
-
Minimum Focus Distance: 0.82 ft. (42°), 1.64 ft. (24°)
-
Spatial Resolution (IFOV) at 42°:
- 320 × 240 pixels, 2.4 mrad/pixel
- 464 × 348 pixels, 2.4 mrad/pixel
- 640 × 480 pixels, 2.4 mrad/pixel
-
Spatial Resolution (IFOV) at 24°:
- 320 × 240 pixels, 1.4 mrad/pixel
- 464 × 348 pixels, 1.0 mrad/pixel
- 640 × 480 pixels, 0.7 mrad/pixel
FAQ
Q: What thermal imagers is this lens compatible with?
A: It is compatible with the T5xx/T8xx, E76/E86/E96, and Axxx Series Thermal Imagers.
Q: How fast can I switch between the wide and standard field of view?
A: Switching takes approximately 1 second using the push/pull toggle mechanism.
Q: Does switching between FOVs impact the visual camera performance?
A: No, there is no impact on the visual camera image quality.
Q: Why would I use the wide angle versus the standard angle?
A: Use the wide 42° angle for scanning large areas quickly and the 24° standard angle for detailed inspections and pinpointing specific issues.
Q: What are some common applications for each field of view?

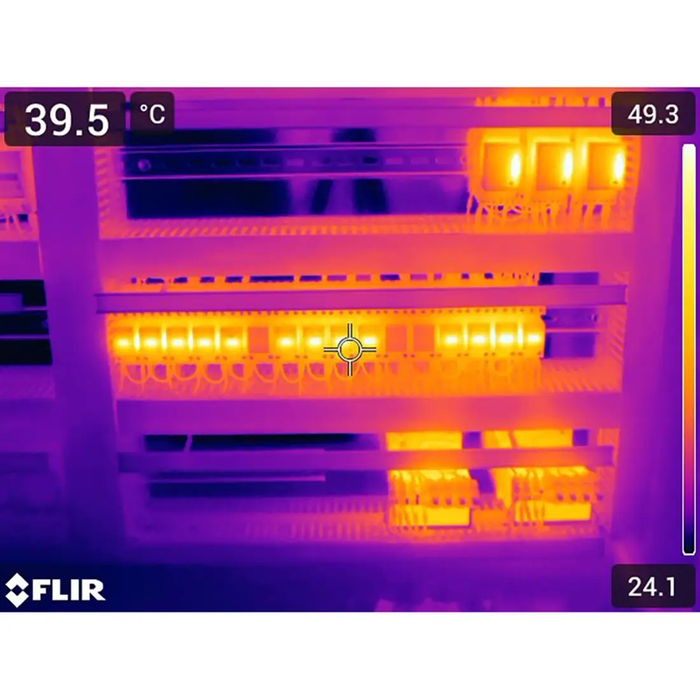

A: Wide Angle (42°) is ideal for tank levels, refractory, ovens, heat exchangers, large motors/pumps, and building envelope inspections. Standard Angle (24°) is suited for general electrical inspections and small motors/pumps.
