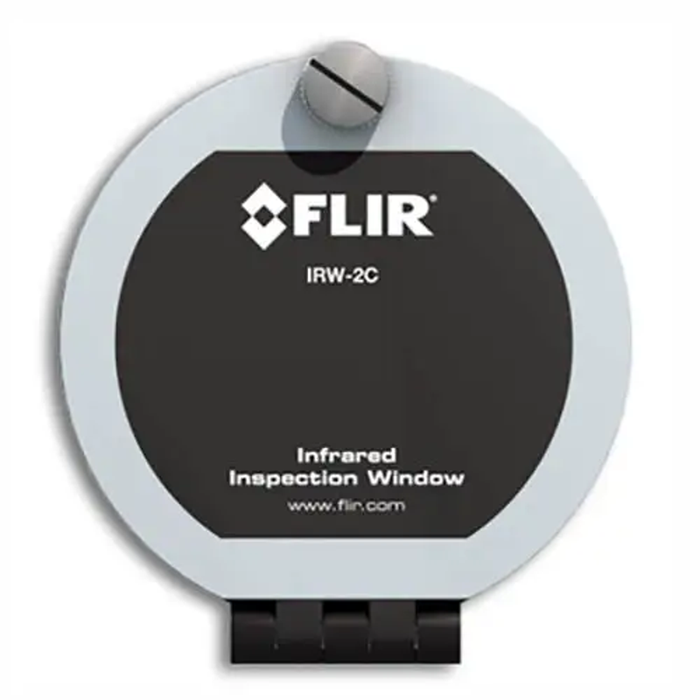

The Teledyne FLIR IRW-2C Infrared (IR) Inspection Window, 2 in. features a secure, permanently-hinged cover that opens easily with one hand, eliminating the risk of dropping, misplacing, or losing components. The broadband crystal allows cameras to capture both visible light and thermal images, while also permitting LED and laser illumination to pass through for enhanced visual assessments.
Opening electrical cabinets for IR and visual inspections of live components presents serious risks, including exposure to arc flash incidents. The Teledyne FLIR IR Window provides a protective barrier, enabling safer and faster inspections without the need to open enclosures. By using the IRW-2C, users can boost productivity, maintain NFPA 70E compliance, and minimize the risk of arc flash injuries.
What's Included:
- 1 - Infrared (IR) Inspection Window, 2 in.
Features
Single Hole Installation
Only one hole is needed per window, simplifying the installation process.
Secure PIRma-Lock Ring
Features a simple ring nut that locks tightly without the need for screws.
Standard Punch Tool Compatibility
Compatible with standard US punch tools for efficient hole knockouts.
Robust Panel Connection
Teeth lock tightly inside the panel for a secure fit.
Automatic Grounding
Metal components are automatically grounded upon installation.
No Screw Holes Required
Eliminates the risk of stripping screw holes over time.
Convenient Flip-Open Hatch
Hatch opens easily, speeding up inspections.
Prevents Component Loss
Design prevents dropping, misplacement, and mix-ups.
Permanent Identification
Features an internal label for easy identification.
Broadband IR Transmission
Transmits short, mid, and longwave infrared images.
Supports Visual and Fusion Inspections
Enables visual inspections and fusion imaging features.
Laser and Illumination Friendly
Allows laser pointers and illumination to pass through easily.
Single-Person Operation
Streamlines inspections, requiring only one person.
Minimizes PPE Needs
Reduces or eliminates the need for cumbersome personal protective equipment.
Arc Flash Risk Reduction
Helps to significantly lower the risk of arc flash incidents.
Compliance with Standards
Meets UL, CSA, IEC, and IEEE standards and ratings.
Durability Tested
Withstands arc flashes, vibration, and extreme humidity conditions.
Limited Lifetime Warranty
Backed by a limited lifetime warranty against manufacturing defects.
What's Included
Included with Your Purchase:
- 1 - Infrared (IR) Inspection Window, 2 in.
Specifications
-
Hole Diameter (Nominal): 2-3/8 inches
-
Body Material: Anodized Aluminum
-
Maximum Operating Temperature: 500°F
-
Brand: FLIR
-
Condition: New
FAQ
Q: What size hole is required for installation?
A: The window requires a nominal 2-3/8 inch diameter hole for installation.
Q: Does the IRW-2C require screws for installation?
A: No, it uses a PIRma-Lock ring nut and does not require screws, reducing installation complexity and risk of stripped holes.
Q: What types of inspections is the IRW-2C suitable for?
A: It supports thermal imaging, visual inspections, and fusion features, with the ability to transmit LED and laser illumination.
Q: Is this IR window compliant with safety standards?
A: Yes, it meets relevant UL, CSA, IEC, and IEEE standards and has been tested against arcs, vibration, and extreme humidity.
Q: Can using this window reduce PPE requirements?
A: Yes, it can minimize or eliminate the need for cumbersome PPE by allowing inspections without opening energized equipment.
