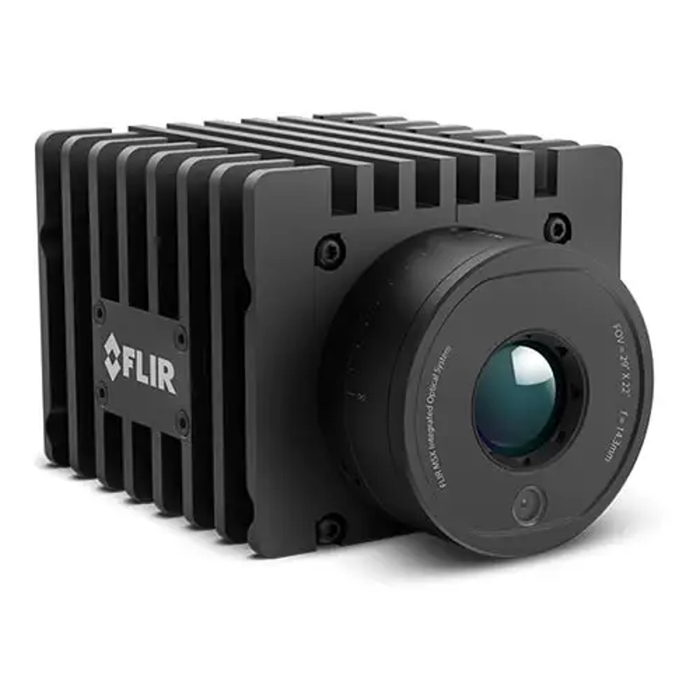

The Teledyne FLIR A50-RD-KIT-95 A50 Image Streaming Camera Research and Development (R&D) Kit with 95° Lens, 464 x 348, 30 Hz is a complete, ready-to-use solution for thermal imaging analysis in proof-of-concept, electronics testing, and R&D applications. Delivering thousands of temperature measurement points, it eliminates thermal guesswork, reduces product development time, and enhances product efficiency and reliability.
Designed for engineers and technicians who demand precise thermal profiling, the A50-RD-KIT-95 supports critical decision-making with defensible thermal data. Simple connectivity options and manual focus lenses offer maximum flexibility. Users can quickly view, record, analyze, and share thermal data using the included Teledyne FLIR Research Studio software or integrate the camera into custom software applications through standard interfaces.
When mobility is needed, the A50-RD-KIT-95 leverages compressed radiometric data over Wi-Fi to free users from workstation tethering.
What's Included:
- 1 - A50 Camera with Image Streaming Configuration and 95° Lens
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Features
Rapid Thermal Insights
Quickly reveal thermal characteristics to eliminate guesswork and accelerate product development cycles.
High-Quality Infrared Imaging
Identify unknown thermal anomalies faster with sharp and accurate infrared imagery.
Integrated Visible Camera
Easily distinguish between features and components using the built-in visible camera.
Enhanced Imaging with MSX
Teledyne FLIR MSX technology overlays visual detail onto infrared images for clearer interpretation.
Simple Integration
Start testing quickly with industry-standard interfaces and minimal setup.
Flexible Data Streaming
Stream full radiometric image data via standard Gigabit Ethernet or Wi-Fi connections.
Comprehensive Thermal Analysis
Perform both qualitative and quantitative thermal assessments with Teledyne FLIR Research Studio software.
Multi-Platform Sharing
Effortlessly view, record, analyze, and share thermal data across various platforms and languages.
Multiple Camera Support
Simultaneously compare thermal data from multiple cameras and recorded data files.
Rugged Build Quality
Meet challenging application environments with rugged M-style connectors and IP66-rated protection.
Compact and Versatile Installation
Install the compact camera virtually anywhere with multiple mounting options.
Streamlined Cabling
Eliminate multiple cables using Power over Ethernet and built-in Wi-Fi connectivity.
Seamless Transition to Production
Utilize non-proprietary GigE Vision and GenICam protocols for easy transition from R&D to process control.
What's Included
Included with Your Purchase:
- 1 - A50 Camera with Image Streaming Configuration and 95° Lens
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Specifications
-
Detector Type: Uncooled microbolometer
-
Dynamic Range: 16-bit
-
Standard Temperature Range: -20°C to 175°C; 175°C to 1000°C
-
Connections: Gigabit Ethernet, Wi-Fi
-
Digital Inputs: 2x opto-isolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V
-
Digital Outputs: 3x opto-isolated, 0 to 48 V DC, max 350 mA
-
Ethernet Standards: GigE Vision 1.2, GenICam compliant
-
Wi-Fi: Yes, Peer-to-Peer or Infrastructure Mode
-
Environmental Protection: IP66
-
Operating Temperature: -20°C to 50°C (with included cooling plate)
-
Storage Temperature Range: -40°C to 70°C
-
Shock Resistance: 25 g
-
Vibration Resistance: 0.15 mm at 10 Hz to 58 Hz and 2 g at 58 Hz to 500 Hz
-
IR Resolution: 464 x 348
-
Frame Rate: 30 Hz
-
Detector Pitch: 17 µm
-
Focus: Adjustable with included focus tool
-
Image Modes: Thermal, Visual, MSX, FSX
-
Lens: 95° Fixed
-
Minimum Focus Distance: 0.1 m
-
Spectral Range: 7.5 - 14.0 µm
-
Thermal Sensitivity/NETD: <45 mK
-
Visible Camera: 1280 x 960 resolution
-
Accuracy: ±2°C or ±2% of reading
-
External Power: 24/48 V DC, 8 W max
-
Power Connection: Power over Ethernet or external via M12 connector
FAQ
Q: Can the A50-RD-KIT-95 stream radiometric thermal data over Wi-Fi?
A: Yes, it supports compressed radiometric data transmission via Wi-Fi for mobile flexibility.
Q: What software is included with the kit?
A: The Teledyne FLIR Research Studio software with a 1-year subscription is included.
Q: Is the A50-RD-KIT-95 suitable for harsh environments?
A: Yes, it is IP66-rated for protection against dust and water and built with rugged M-style connectors.
Q: What is the frame rate of the camera?
A: The frame rate is 30 Hz.
Q: Can I use the camera for both lab research and production process monitoring?
A: Absolutely, the camera supports GigE Vision and GenICam standards for seamless transition from lab to production.
