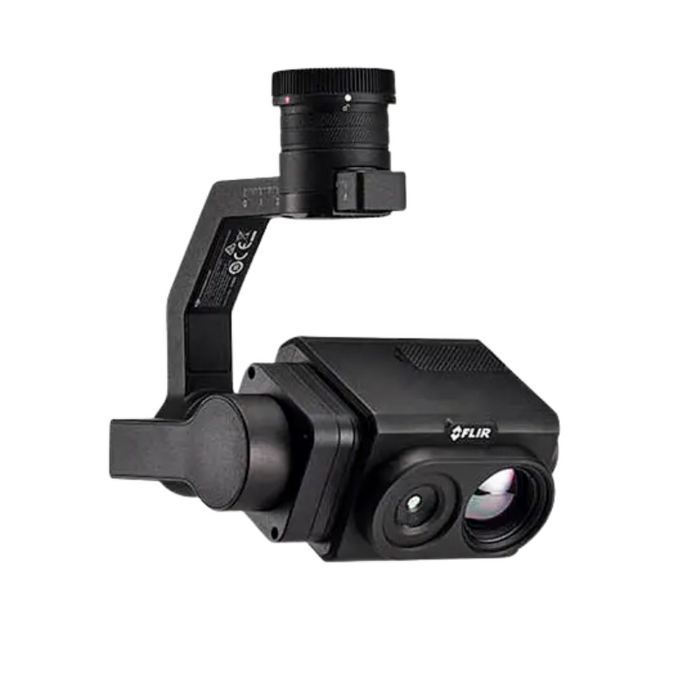

The Teledyne FLIR VUE-TZ20-60HZ High-Resolution Gimbalized Dual Thermal Zoom Payload Camera is engineered for drone operators seeking unmatched thermal imaging precision and versatility. Featuring dual Boson thermal sensors with 640 x 512 resolution and operating at 60 Hz, this payload offers both wide-angle situational awareness and narrow field zoom for detailed target inspection. Its 20x zoom capability—ranging from 95° to 4.5° HFOV—lets operators instantly adjust perspectives for maximum clarity and insight.
Fully integrated with DJI’s Matrice 200 V2 and Matrice 300 platforms, the VUE-TZ20-60HZ is a plug-and-play solution ideal for public safety, industrial inspection, and critical decision-making scenarios. Its IP44 environmental sealing, factory calibration, and reliable performance in harsh conditions ensure mission readiness in every deployment.
What's Included:
- 1 - High-Resolution Gimbalized Dual Thermal Zoom Payload Camera, 640 x 512, 60 Hz
Features
Dual Boson 640 x 512 Cameras
Equipped with two high-resolution non-radiometric Boson thermal cameras to deliver detailed, crisp imagery.
Wide-to-Narrow Field Zoom
Switch between 95° wide field of view and 18° narrow field of view for both situational awareness and detailed inspections.
20x Zoom Flexibility
Utilizes a combination of 5x optical and 4x digital zoom to reach up to 20x magnification, enabling pixel-precise targeting.
Skyport V2.0 Integration
Seamlessly connects with DJI Matrice 200 V2 and 300 via Skyport 2.0 for fast deployment and power compatibility.
Mission-Ready Storage
Records imagery directly to two included micro SD cards during flight for efficient data capture and analysis.
Thermal Sensitivity
Detects subtle differences in temperature with 85 mK sensitivity at F/1.0, allowing for fine detail detection.
Durable and Sealed
Built with an IP44-rated enclosure and operational across extreme temperatures to ensure reliable performance in the field.
Full Gimbal Control
Offers 3-axis stabilization with pitch from 30° to -120° and yaw ±320°, allowing for fluid maneuverability and tracking.
What's Included
Included with Your Purchase:
- 1 - High-Resolution Gimbalized Dual Thermal Zoom Payload Camera, 640 x 512, 60 Hz
Specifications
-
Camera Resolution: 640 x 512 (dual Boson sensors)
-
Zoom: 5x optical, 4x digital; Effective up to 20x
-
Field of View: Wide 95° HFOV (4.9 mm EFL); Narrow 18° HFOV (24 mm EFL)
-
Thermal Sensitivity: 85 mK @ F/1.0
-
Pixel Pitch: 12 μm LWIR
-
Streaming: 640 x 512 @ 30 Hz
-
Recording Format: Still: TIFF; Video: MPEG
-
Storage: 2 micro SD cards
-
Gimbal: 3-axis; Pitch: 30° to -120°; Yaw: ±320°
-
Electrical Interface: Skyport 2.0, 13.6 V/4 A
-
Mechanical Interface: Skyport 2.0
-
Ground Control: DJI Pilot App
-
Operating Temperature: -20°C to 45°C (-4°F to 113°F)
-
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
-
Environmental Sealing: IP44
-
Compatible Airframes: DJI Matrice 200 V2, Matrice 300
-
Payload Dimensions: 75 x 70 x 55 mm (2.95 x 2.75 x 2.17 in)
-
With Gimbal Dimensions: 128 x 154 x 141 mm (5.04 x 6.06 x 5.55 in)
FAQ
Q: What drones is the VUE-TZ20-60HZ compatible with?
A: It is designed for use with DJI Matrice 200 V2 and Matrice 300 platforms.
Q: How far can I zoom with this camera?
A: The camera supports up to 20x effective zoom using 5x optical and 4x digital zoom capabilities.
Q: Does it record during flight?
A: Yes, it can record directly to the two included micro SD cards.
Q: Is this camera weather resistant?
A: Yes, it features IP44 environmental sealing for use in challenging weather conditions.
