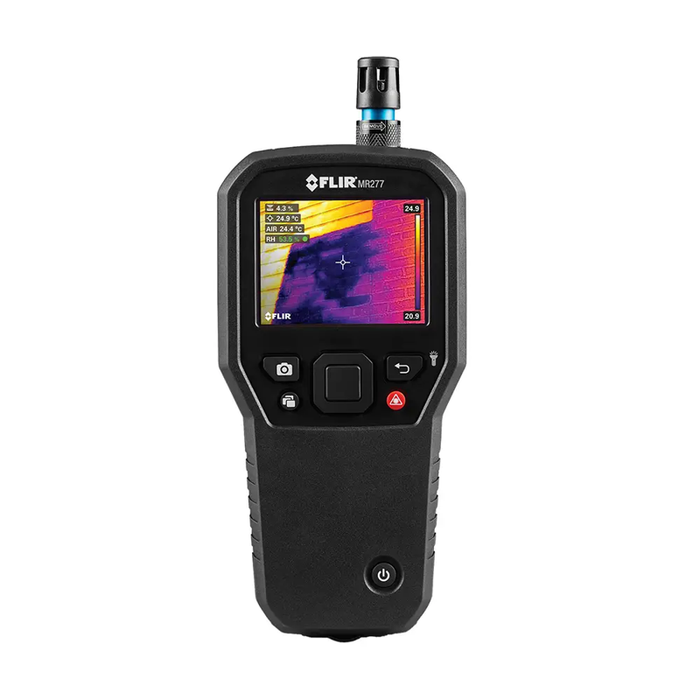

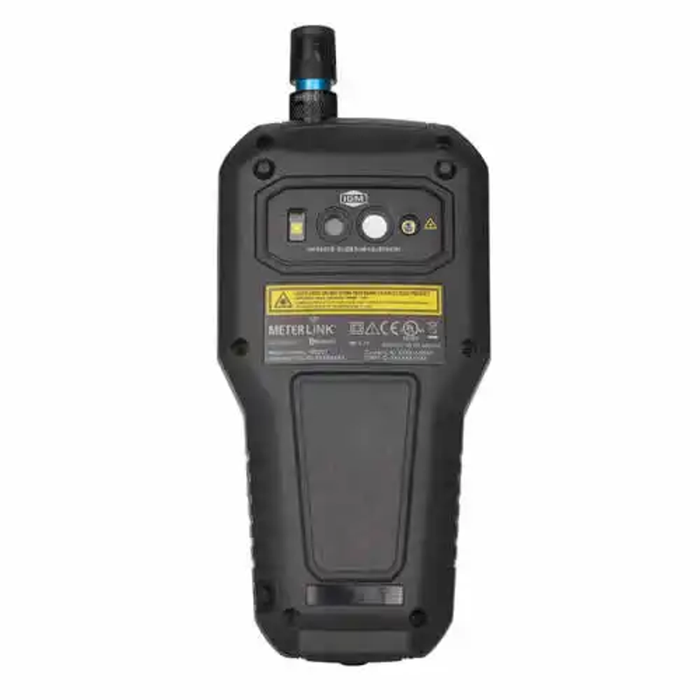

The Teledyne FLIR MR277 Moisture Meter/MSX Infrared (IR) Camera and Hygrometer for Building Inspection is a professional-grade, all-in-one solution designed for quickly locating moisture and building envelope issues. Featuring a high-resolution thermal imaging sensor, Infrared Guided Measurement (IGM), and advanced Multi-Spectral Dynamic Imaging (MSX) technology, the MR277 delivers superior problem identification and documentation capabilities.
With an integrated laser pointer and non-invasive pinless sensor, users can accurately target and verify sources of moisture. The external pin probe enables precise moisture readings when needed. Additional features like a built-in hygrometer, field-replaceable temperature/humidity sensor, and METERLiNK wireless connectivity make the MR277 an indispensable tool for building inspectors and remediation specialists.
What's Included:
- 1 - Moisture Meter/MSX Infrared (IR) Camera and Hygrometer for Building Inspection
- 1 - Replaceable Temperature and Relative Humidity Sensor
- 1 - Standard Moisture Pin Probe
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Lanyard
- 1 - Quick Start Guide
Features
Locate Moisture and Building Issues Efficiently
Easily investigate sources of moisture build-up and building envelope problems with integrated tools and technologies.
High-Performance Thermal Imaging
Features a 160 x 120 resolution thermal imaging sensor to clearly visualize areas of concern.
Infrared Guided Measurement (IGM) Technology
Quickly find suspected problems without direct contact using IGM technology.
Multi-Spectral Dynamic Imaging (MSX) Technology
Embosses visual details onto thermal images for enhanced context and clarity.
Precision Targeting with Laser Pointer
Pinpoints the exact location of issues, ensuring precise measurements.
Comprehensive Moisture Analysis
Take full moisture readings with both non-invasive and invasive measurement options.
Non-Invasive Pinless Sensor
Quickly scan large areas without damaging surfaces.
External Pin Probe Compatibility
Capture exact readings with the included standard pin probe and optional specialized probes.
Field-Replaceable Humidity Sensor
Minimize downtime with a replaceable temperature and humidity sensor.
Advanced Environmental Parameters
Calculates grains per pound, vapor pressure, grams per kilogram, and dew point based on multi-sensor input.
Integrated Documentation Features
Create single files documenting thermal images, visual context, laser location, and hygrometer readings.
Wireless Data Management
Download images and data wirelessly or via included USB cable for fast analysis.
Free Reporting Software
Use Teledyne FLIR Tools software to generate detailed reports quickly.
Intuitive Interface
Designed for ease of use with a simple, user-friendly interface.
What's Included
Included with Your Purchase:
- 1 - Moisture Meter/MSX Infrared (IR) Camera and Hygrometer for Building Inspection
- 1 - Replaceable Temperature and Relative Humidity Sensor
- 1 - Standard Moisture Pin Probe
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Lanyard
- 1 - Quick Start Guide
Specifications
-
Thermal Imaging Resolution: 160 x 120 pixels
-
Relative Humidity Range: 10% to 90%
-
Relative Humidity Accuracy: ±2.5% RH
-
Temperature Measurement: Integrated sensor with replaceable module
-
Measurement Methods: Non-invasive (pinless) and invasive (pin probe)
-
Wireless Connectivity: METERLiNK for data transfer
-
Reporting Software: Teledyne FLIR Tools
-
Display: 3-inch color display with MSX overlay
-
Data Capture: Thermal images, visual images, and measurement readings combined in single file
-
Charging Method: USB Cable and International Charger
FAQ
Q: Can I replace the humidity sensor if it gets damaged?
A: Yes, the MR277 features a field-replaceable temperature and humidity sensor module.
Q: Does the device support both invasive and non-invasive moisture measurements?
A: Yes, it includes a non-invasive pinless sensor and a standard external pin probe.
Q: How does MSX technology improve thermal images?
A: MSX technology overlays visual scene details onto thermal images for enhanced clarity and easier identification of problem areas.
Q: What software can I use to create reports?
A: The free Teledyne FLIR Tools software allows you to analyze images and generate professional reports.
Q: Can I transfer data wirelessly?
A: Yes, you can transfer images and data wirelessly via METERLiNK or use the included USB cable.
