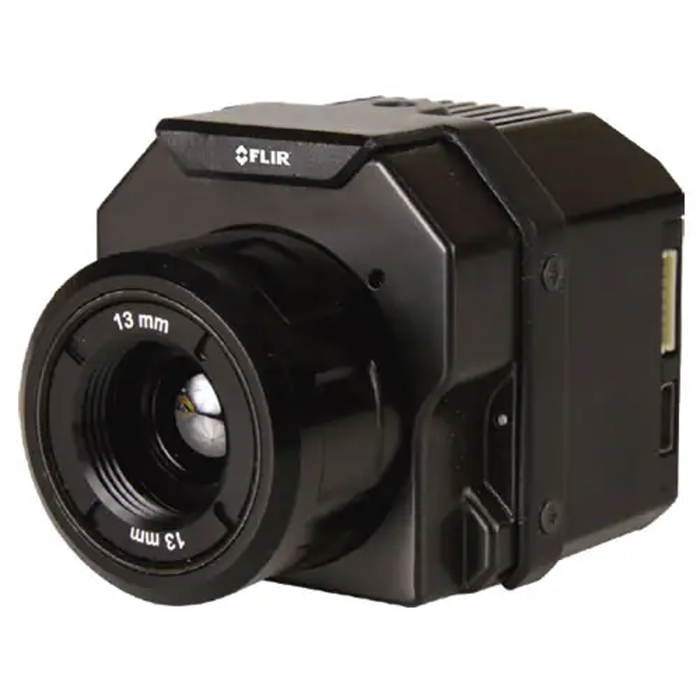

The Teledyne FLIR VUE-PRO-R-640-13MM-30HZ Radiometric Thermal Imager for Drones (sUAS) delivers advanced thermal imaging technology in a compact, airborne-ready form. Designed for integration with small unmanned aerial systems, this camera enables precise, non-contact temperature measurements from the air. With a high-resolution 640 x 512 sensor and 13mm lens, it provides wide coverage and accurate temperature readings embedded in every still image.
Ideal for applications including roof inspections, infrastructure analysis, agriculture, and public safety, the VUE-PRO-R combines radiometric accuracy with FLIR’s proven thermal imaging quality. Its simple power/video interface, onboard recording, and compatibility with MAVLink and PWM inputs make it easy to deploy and operate. Post-flight analysis is seamless with support from Teledyne FLIR Tools and the dedicated mobile app.
What's Included:
- 1 - Radiometric Thermal Imager for Drones (sUAS) with 13mm Lens, 640 x 512, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Sensor
Captures detailed thermal data with 640 x 512 resolution for precise measurement and analysis.
Radiometric Imaging Capability
Each still image contains calibrated temperature data embedded in every pixel.
30 Hz Full Frame Rate
Supports smooth video recording with 30 Hz (NTSC) or 25 Hz (PAL) output options.
Compact 13mm Lens
Provides a 45° x 37° field of view, optimized for aerial thermal surveillance.
Uncooled VOx Microbolometer
Reliable thermal imager technology ensures stable, consistent performance in varying conditions.
Onboard Media Storage
Records stills as Radiometric JPEG or 14-bit TIFF and real-time thermal video in MOV format on microSD.
Flexible Integration Options
Features simple analog video-out via 10-pin mini-USB, and supports MAVLink and PWM controls.
Mobile App and Software Support
Compatible with Teledyne FLIR’s UAS app for camera settings and with FLIR Tools for in-depth post-flight analysis.
Customizable In-Flight Controls
Adjust palettes, zoom, and camera functions using PWM inputs from your controller.
Field-Ready and Upgradeable
Designed for rugged field use with support for future firmware upgrades.
What's Included
Included with Your Purchase:
- 1 - Radiometric Thermal Imager for Drones (sUAS) with 13mm Lens, 640 x 512, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 640 x 512
-
Lens: 13mm
-
Field of View: 45° x 37° (Digital); 45° x 35° (Analog NTSC)
-
Frame Rate: 30 Hz (NTSC); 25 Hz (PAL)
-
Spectral Band: 7.5 μm to 13.5 μm
-
Imager Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: ±5°C or 5% of reading
-
Image Output Formats: Radiometric JPEG, 14-bit TIFF
-
Video Output Format: MOV
-
Storage: Onboard microSD
-
Interface: 10-pin mini-USB (Power-in / Analog Video-out)
-
Software Compatibility: Teledyne FLIR Tools, FLIR UAS mobile app
-
Control Options: PWM inputs, MAVLink integration
-
Upgradeability: Field-upgradeable firmware
FAQ
Q: Can this camera provide accurate temperature data in images?
A: Yes, every still image includes calibrated radiometric temperature data embedded in each pixel.
Q: What storage format does the camera use?
A: It records stills in Radiometric JPEG or 14-bit TIFF and videos in MOV format to a microSD card.
Q: Can I control the camera functions in-flight?
A: Yes, it supports PWM inputs for in-flight control over zoom, palettes, and other settings.
Q: Is the system compatible with analysis tools?
A: Yes, it works with Teledyne FLIR Tools and the FLIR UAS mobile app for full post-mission review.
