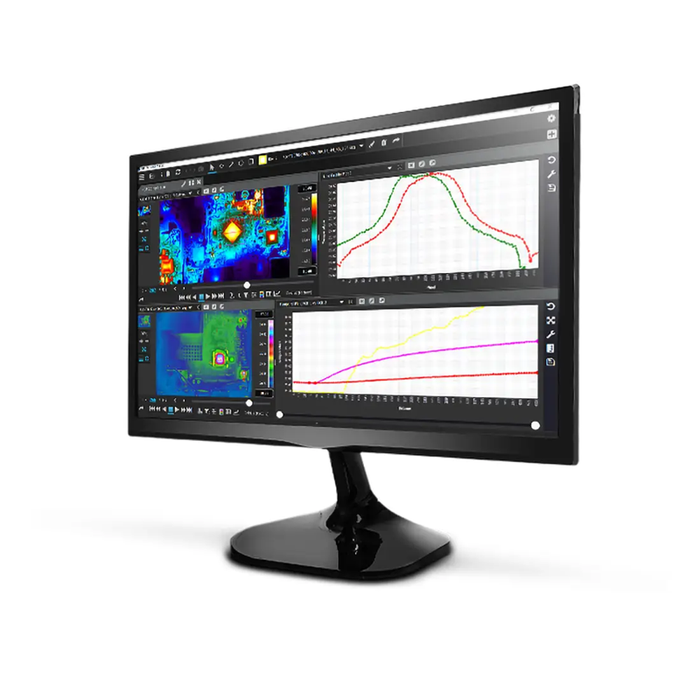

The Teledyne FLIR 4248316 Research Studio Pro Edition is a powerful software solution designed for critical thermal measurement interpretation. With a simple and efficient Connect, View, Record, Analyze, and Share workflow, it offers researchers an intuitive way to manage and evaluate thermal data.
Equipped with a 3-year license activated via a USB dongle, the Professional Edition provides a comprehensive suite of tools, including sophisticated image filters, multiple region-of-interest types, and advanced data plotting capabilities. It enhances collaboration by supporting standard file, image, and video formats across multiple operating systems and in 22 different languages.
What's Included:
- 1 - Research Studio Pro Edition, 3 Year License, USB Dongle (4248316)
Features
Comprehensive Thermal Analysis Tools
Features multiple region-of-interest types, image filters, isotherms, and advanced data plotting to capture meaningful insights.
Collaborative Data Sharing
Supports sharing in standard file, image, and movie formats across Windows, Linux, and MacOS systems, available in 22 languages.
Flexible Camera Interface
Compatible with USB, GigE, Camera Link (Eurosys/Dalsa), CXP (Eurosys/Dalsa), and Radiometric Wifi connections.
Advanced Imaging Capabilities
Offers 21 color palettes with live previews, manual level-span adjustments, and camera-dependent IR, Visible, and MSX image displays.
Optimized File Management
Provides file extraction and trimming based on playbounds and supports formats like MP4, WebM, TIFF, and TIFF (32-bit floating point).
Enhanced Measurement and Analysis
Supports full-image and per-ROI emissivity correction, along with versatile stats analysis across videos, images, and live camera streams.
Broad Device Compatibility
Works seamlessly with a wide range of Teledyne FLIR thermal cameras including models like A35sc, A65sc, T1k Series, X8500, RS8500, and more.
What's Included
Included with Your Purchase:
- 1 - Research Studio Pro Edition, 3 Year License, USB Dongle (4248316)
Specifications
-
Software Edition: Professional Edition
-
License Duration: 3 Years
-
Activation Method: USB Dongle
-
Supported Operating Systems: Windows 10/8.x/7 (64-bit), Linux Ubuntu 16.04, RHEL/CentOS 7, Fedora 31, Mint 19.3, MacOS High Sierra - Catalina
-
Camera Interfaces: USB, GigE, Camera Link (Eurosys/Dalsa), CXP (Eurosys/Dalsa), Radiometric Wifi
-
Image Display Options: IR, Visible, MSX (camera dependent)
-
Color Palettes: 21 available with live preview
-
Video Formats Supported: MP4, WebM, TIFF, TIFF (32bit floating point)
-
File Formats Supported: RJPEG, SEQ, ATS, PTW, SFMOV (read only), FRS (read only)
-
Emissivity Correction: Full image and per ROI
-
Measurement Regions of Interest: Spot, Box, Line (simple/multi-segment), Ellipse, Delta, Crosshairs, Circle, Square, Freeform, Polygon
-
Data Language Support: 22 languages including English, French, Spanish, Chinese, Japanese, and more
-
Image Rotation Capability: Yes
-
Record Rate Control: Yes, for optimized performance
FAQ
Q: What operating systems are compatible with the Research Studio Pro Edition?
A: It is compatible with Windows 10/8.x/7 (64-bit), various Linux distributions, and MacOS from High Sierra to Catalina.
Q: How is the license activated?
A: The license is activated via a USB dongle included with your purchase.
Q: Can I use this software with multiple thermal cameras?
A: Yes, it supports a wide range of FLIR thermal cameras across different models and connection types.
Q: Does it allow sharing of thermal data with others?
A: Absolutely, it supports exporting in common file, image, and video formats, facilitating easy collaboration across systems and languages.
