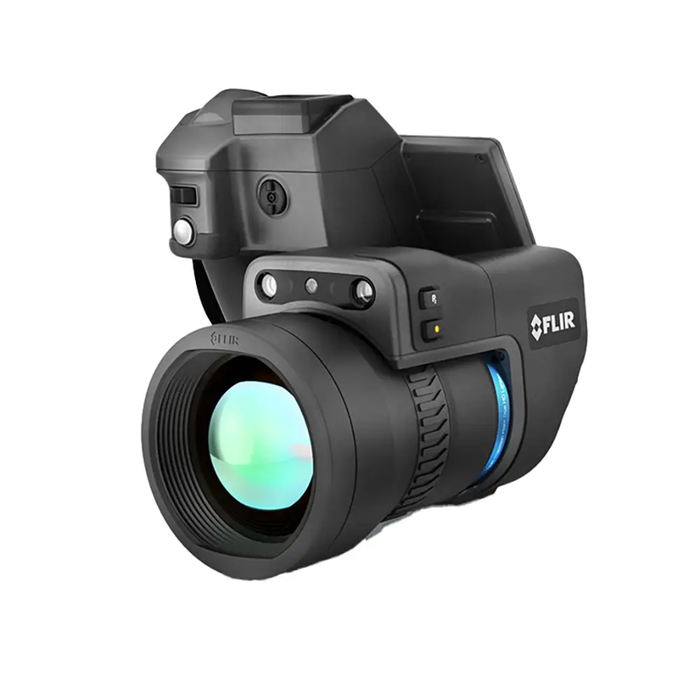

The Teledyne FLIR T1020-45-NIST HD Thermal Imaging Camera is the pinnacle of precision, clarity, and performance in infrared imaging. Built with over five decades of infrared innovation, this model brings exceptional thermal accuracy and usability to professionals demanding the highest standards.
Equipped with a 45° lens and a 1024 x 768 HD detector, the T1020-45-NIST offers detailed, high-fidelity thermal imagery, enhanced further by MSX and UltraMax technologies. The OSX Precision HDIR lens system delivers unmatched visual clarity, allowing for easy detection of small temperature anomalies even at longer distances. A rugged, rotating optical block and ergonomic grip design ensure comfortable, efficient use throughout long inspection routines.
With Teledyne FLIR’s powerful Vision Processing features—including adaptive filtering, dynamic focus control, and 1-Touch Level/Span—the camera delivers superior image enhancement for faster, more accurate diagnostics. Analyze thermal images and generate reports seamlessly using the included FLIR Tools+ software, and ensure measurement precision with the included NIST Certificate of Calibration.
What's Included:
- Teledyne FLIR T1020-45-NIST Thermal Imaging Camera
- Built-in 45° OSX HDIR Lens
- FLIR Tools+ Software
- NIST Certificate of Calibration
Features
HD Thermal Resolution
Offers 1024 x 768 pixel resolution to capture sharp, detailed thermal images for critical diagnostics.
UltraMax Super Resolution
Enhances images up to 3.14 megapixels by compiling 16 subframes, improving clarity and spot-size ratio.
MSX Imaging Technology
Blends visible edges with thermal imagery for improved context and detail without separate visual images.
Built-In Viewfinder
High-resolution 800 x 480 pixel viewfinder ensures visibility in bright environments.
Wide Field of View
45° x 34° angle lens allows users to capture large areas in a single image.
Advanced Measurement Modes
Multiple temperature ranges from -40°C to 2000°C with high accuracy of ±1°C or ±1% at 25°C.
Robust Onboard Analysis Tools

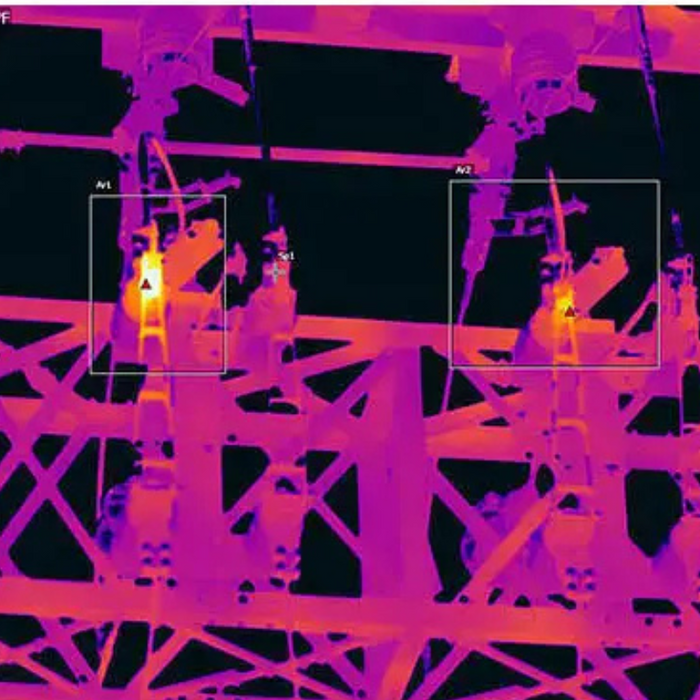

Includes 10 spotmeters, 10 measurement areas with max/min/avg, and visual/audible alarms.
Infrared Time-Lapse
Programmable from 15 seconds to 24 hours for extended thermal observation.
Precision HDIR Optics
OSX lens enables detailed imaging across wide and telephoto ranges with minimal distortion.
Radiometric Video Capture
Records full-frame, full-resolution thermal video with complete measurement data.
Intuitive Interface
Features rapid GUI navigation and work folder setup for streamlined operation.
Teledyne FLIR Tools+ Software
Allows in-depth image analysis and reporting for advanced inspection workflows.
Built-in GPS Tagging
Automatically embeds location data into each thermal image for efficient documentation.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-45-NIST Thermal Imaging Camera
- Built-in 45° OSX HDIR Lens
- FLIR Tools+ Software
- NIST Certificate of Calibration
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 Mpixels
-
Thermal Sensitivity (NETD): < 20 mK @ 30°C
-
Field of View: 45° x 34° (21 mm lens)
-
Viewfinder: Built-in, 800 x 480 pixels
-
Picture-in-Picture: Resizable and movable
-
IR Time-Lapse: 15 seconds to 24 hours
-
Temperature Ranges: -40°C to 150°C, 0°C to 650°C, 300°C to 2000°C
-
Accuracy: ±1°C or ±1% at 25°C (for 5°C to 150°C)
-
Alarms: Above, below, interval, moisture, insulation
-
Measurement Alarms: Audible/visible alerts on any function
-
GPS: Automatic image geotagging
-
METERLiNK: Integrated reading capture
-
Spotmeters: 10
-
Measurement Areas: 5 boxes + 5 circles (max/min/avg)
FAQ
Q: What is UltraMax and how does it enhance imaging?
A: UltraMax captures and merges 16 subframes into one high-resolution image, improving detail, clarity, and measurement precision.
Q: Can this camera capture radiometric video?
A: Yes, it records full-frame, full-resolution radiometric video with complete thermal data.
Q: What does the included NIST Certificate guarantee?
A: It verifies that the camera’s calibration meets traceable measurement standards for reliable inspection results.
Q: Is the camera suitable for both wide and close-up inspections?
A: Yes, the integrated 45° OSX HDIR lens offers wide FOV while maintaining sharp detail, even at distance.
Q: How does MSX improve image interpretation?
A: MSX overlays visual detail like text and edges directly onto thermal images, improving context and clarity.
