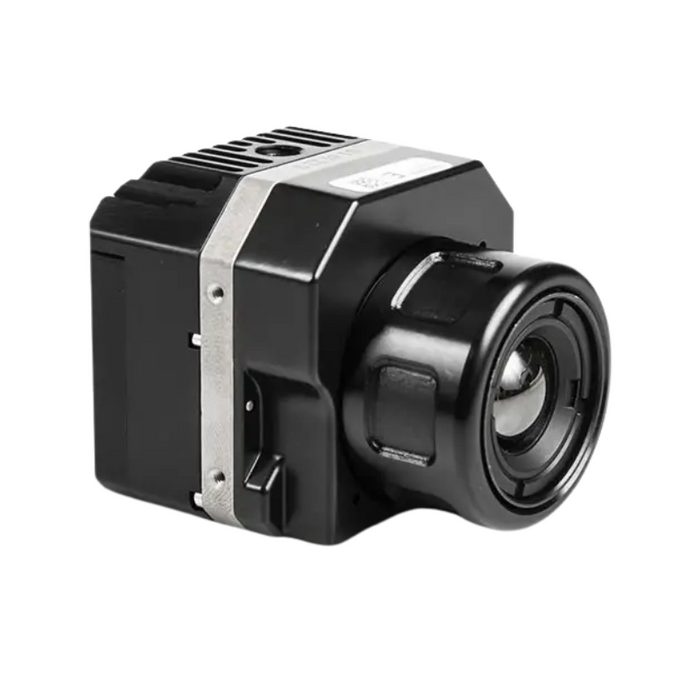

The Teledyne FLIR VUE-PRO-336-9MM-30HZ Thermal Imager for Drones (sUAS) with 9mm lens is a powerful thermal measurement instrument and data recorder designed for professional drone operations. Offering a resolution of 336 x 256 and a 30 Hz frame rate, it enables high-quality thermal video capture and 14-bit still imaging, ideal for applications in mapping, surveying, and precision agriculture.
Integrated with MAVLink and compatible with Teledyne FLIR Tools and the UAS mobile app, this imager supports in-flight camera control and advanced post-processing analysis. It features a simple power-in/analog video-out interface and allows real-time non-contact temperature measurement of critical infrastructure or equipment.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Sensor
Delivers clear imaging with 336 x 256 resolution for accurate thermal data analysis.
9mm Lens with Wide Field of View
Captures a 35° x 27° FOV for comprehensive scene coverage and spatial awareness.
Real-Time Video and Image Recording
Stores MOV format thermal videos and 14-bit still images on a microSD card.
MAVLink Integration
Supports telemetry and flight control system connections for enhanced automation.
In-Flight Camera Control
Adjust settings like color palette and zoom via PWM inputs from the drone’s controller.
FLIR Tools and UAS App Compatibility
Enables detailed post-flight analysis and easy configuration of camera settings.
Thermal Sensitivity and Accuracy
Offers +/-5°C or 5% of reading accuracy for dependable measurements.
Easy Drone Integration
Uses a 10-pin mini-USB for both power and analog video output, simplifying installation.
Field Upgradeable
Allows updates and upgrades without replacing hardware components.
Optimized for Airborne Use
Image settings are preconfigured for UAV-based inspections and operations.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 336 x 256
-
Lens: 9mm
-
Field of View: 35° x 27° (NTSC Analog: 34° x 26°)
-
Frame Rate: 30 Hz (NTSC), 25 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Thermal Imager Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: +/-5°C or 5% of reading
-
Video Output: Analog video over 10-pin mini-USB
-
Recording Format: MOV for video, 14-bit for stills
-
Software Compatibility: Teledyne FLIR Tools, FLIR UAS mobile app
-
Control Interface: PWM inputs, MAVLink protocol
-
Upgradeability: Field-upgradeable firmware
FAQ
Q: Can the VUE-PRO-336-9MM-30HZ record video onboard?
A: Yes, it records real-time thermal videos in MOV format to a microSD card.
Q: What field of view does the 9mm lens provide?
A: It offers a 35° x 27° FOV (34° x 26° for NTSC analog output).
Q: Is this camera compatible with MAVLink?
A: Yes, it integrates with MAVLink for telemetry and in-flight control.
Q: Can I control camera settings during flight?
A: Yes, using PWM inputs you can adjust features like color palette and zoom.
Q: Is software available for post-flight analysis?
A: The unit is compatible with Teledyne FLIR Tools and the FLIR UAS app for full analysis.
