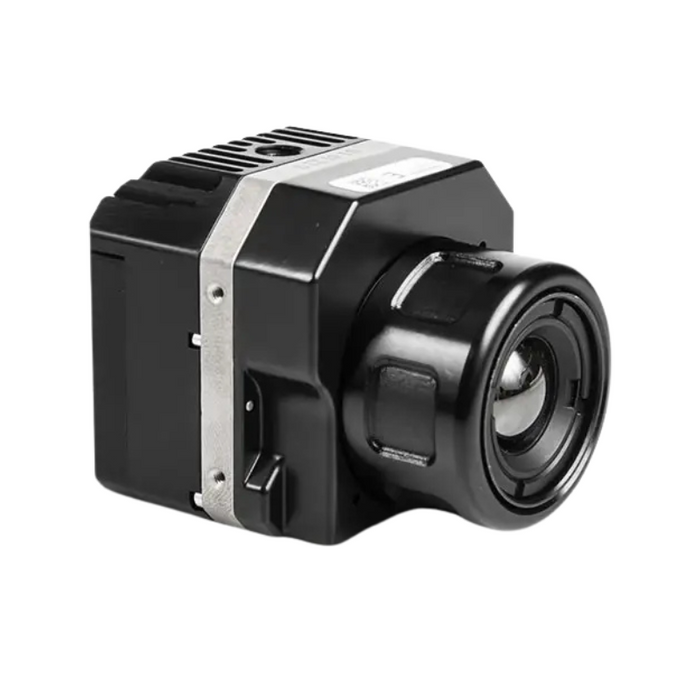

The Teledyne FLIR VUE-PRO-336-13MM-9HZ Thermal Imager for Drones (sUAS) with 13mm Lens delivers advanced thermal imaging for professionals requiring precise airborne thermal data. Designed as both a thermal measurement instrument and a data recorder, this unit enhances sUAS capabilities with robust thermal video and still image capture. It records directly to a removable micro-SD card, minimizing the risk of data loss even during demanding operations.
With full MAVLink compatibility and real-time image settings tailored for airborne use, the VUE-PRO integrates smoothly into your drone’s flight control system. Each captured image includes geo-location and flight data, making it ideal for mapping, surveying, and precision agriculture. Operators can also adjust camera features mid-flight via PWM inputs and Teledyne FLIR’s UAS mobile app.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 13mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Imaging
336 x 256 sensor resolution offers detailed thermal visuals suitable for professional aerial inspection and data capture.
Wide Field of View
13mm lens provides a 25° x 19° (digital) and 24° x 18° (NTSC output) field of view for expansive scene coverage.
Efficient Frame Rates
Supports 7.5 Hz for NTSC and 8.3 Hz for PAL, enabling fluid image updates while complying with export restrictions.
VOx Microbolometer Sensor
Utilizes an uncooled VOx microbolometer for reliable, maintenance-free thermal imaging.
Real-Time Thermal Recording
Captures thermal video in MOV format and still images to onboard microSD, ensuring mission-critical footage is always saved.
Geotagging Capability
Images include aircraft location and telemetry when connected to compatible systems, ideal for mapping and surveying.
In-Flight Camera Control
PWM inputs allow real-time adjustments to zoom, palettes, and recording modes without landing the drone.
Simple Integration
Uses a 10-pin mini-USB for streamlined power and analog video output connectivity.
Software Compatibility
Compatible with Teledyne FLIR Tools for post-flight analysis and with the Teledyne FLIR UAS app for configuration on the go.
Field-Upgradeable Design
Future-proof your investment with firmware upgrades that keep the system current.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 13mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 336 x 256
-
Lens: 13mm
-
Field of View: 25° x 19° (digital); 24° x 18° (NTSC analog)
-
Frame Rates: 7.5 Hz (NTSC); 8.3 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Sensor Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: +/-5°C or 5% of reading
-
Video Output: Analog via 10-pin mini-USB
-
Image Recording: Thermal video in MOV; still images on microSD
-
Integration: MAVLink compatible, PWM input capable
-
Mobile Control: Compatible with Teledyne FLIR’s UAS app
-
Software Support: Teledyne FLIR Tools
-
Upgradeability: Field-upgradeable
-
Condition: New
FAQ
Q: What is the resolution of the thermal imager?
A: It provides a thermal resolution of 336 x 256 pixels.
Q: Can this camera be controlled during flight?
A: Yes, it supports PWM inputs and works with the Teledyne FLIR UAS app for real-time adjustments.
Q: Does it support onboard recording?
A: Yes, it records both video and images directly to a microSD card.
Q: Is this model field-upgradeable?
A: Yes, it supports firmware upgrades for extended functionality.
