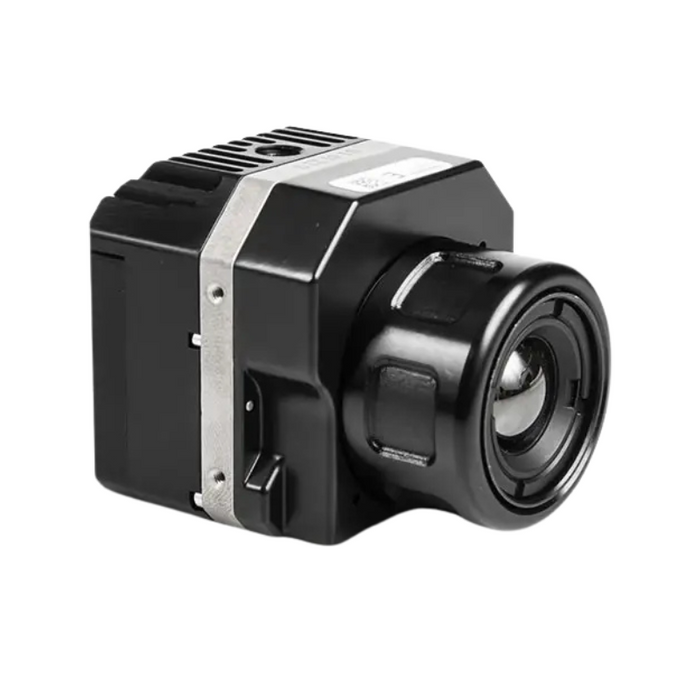

The Teledyne FLIR VUE-PRO-336-6.8MM-9HZ Thermal Imager is engineered for drone professionals who demand precision thermal data capture from the skies. Equipped with a 6.8mm lens and a 336 x 256 thermal resolution sensor, it delivers clear, detailed thermal imagery at a smooth 9 Hz frame rate. Designed for seamless drone integration, this unit supports PWM camera control, real-time analog video output, and records both 14-bit still images and thermal video directly to an onboard microSD card.
The VUE-PRO also supports MAVLink for in-flight metadata tagging and geo-referencing, making it perfect for surveying, inspections, and agriculture. With full compatibility with Teledyne FLIR Tools and mobile UAS apps, this field-upgradeable camera puts unmatched thermal imaging power in the hands of sUAS operators.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 6.8mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Imaging
336 x 256 thermal sensor delivers precise imaging for detailed temperature assessments and structural analysis.
Wide Field of View
6.8mm lens offers a 44° x 33° field of view for broad scene coverage in each frame.
Real-Time Analog Output
Provides live thermal video output over a 10-pin mini-USB interface for instant viewing and monitoring.
Reliable Thermal Measurement
Utilizes an uncooled VOx microbolometer and ensures measurement accuracy within +/-5°C or 5% of reading.
Versatile Recording Options
Supports onboard recording of 14-bit stills and MOV-format thermal video to a microSD card.
MAVLink Integration
Automatically embeds flight data into captured images for mapping and precision agriculture tasks.
Remote Camera Control
Control color palettes, zoom, and recording functions using PWM signals from the drone’s flight controller.
Compatible Analysis Software
Works with Teledyne FLIR Tools for post-flight image analysis and report creation.
Mobile App Configuration
Configure recording and camera settings with Teledyne FLIR’s UAS mobile app for added convenience.
Field-Upgradeable
Allows for easy updates and enhancements, keeping your system current with minimal downtime.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 6.8mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 336 x 256
-
Lens: 6.8mm
-
Field of View: 44° x 33° (NTSC)
-
Frame Rate: 9 Hz
-
Full Frame Rates: 7.5 Hz (NTSC), 8.3 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Thermal Imager Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: +/-5°C or 5% of reading
-
Output Interface: 10-pin mini-USB (power in / analog video out)
-
Recording Format: MOV video and 14-bit still images
-
Data Storage: MicroSD Card
-
Integration Protocol: MAVLink
-
Camera Control: PWM inputs for in-flight adjustments
-
Software Compatibility: Teledyne FLIR Tools, UAS Mobile App
-
Condition: New
FAQ
Q: What kind of thermal resolution does the VUE-PRO-336 offer?
A: It provides a resolution of 336 x 256, ideal for professional thermal analysis from drones.
Q: Can the thermal imager be integrated with a drone's flight controller?
A: Yes, it supports MAVLink integration for metadata tagging and camera control via PWM.
Q: How is the video recorded and stored?
A: Real-time thermal video is recorded in MOV format and stored on a microSD card.
Q: What’s the field of view with the 6.8mm lens?
A: The lens provides a 44° horizontal and 33° vertical field of view for wide area imaging.
