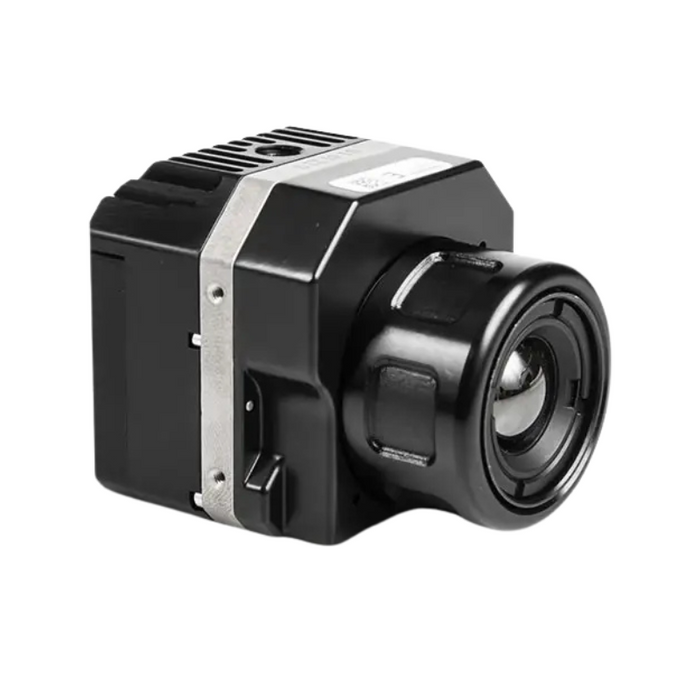

The Teledyne FLIR VUE-PRO-336-9MM-9HZ Thermal Imager is a powerful tool designed specifically for drone (sUAS) operations. Featuring a 336 x 256 resolution and a 9mm lens, this camera enables precise thermal imaging at a frequency of 9 Hz, delivering reliable thermal data from the air. It integrates seamlessly with drone systems, allowing users to capture video and 14-bit still images while embedding flight and geo-location data for post-flight analysis and mapping.
Ideal for industrial, agricultural, and inspection applications, this thermal imager supports real-time, non-contact temperature readings and records data onto an onboard microSD card. With features like MAVLink integration and the ability to control settings mid-flight via PWM or mobile app, the VUE-PRO offers unmatched control and functionality for aerial imaging professionals.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Sensor
Equipped with a 336 x 256 thermal sensor for capturing detailed thermal imagery during flight.
Wide Field of View
9mm lens provides a 35° x 27° (NTSC) or 34° x 26° (analog) field of view for broad coverage in aerial scans.
Real-Time Video and Image Capture
Captures thermal videos in MOV format and still images, storing them directly on an onboard microSD card.
Thermal Measurement Accuracy
Offers accurate temperature measurements within +/-5°C or 5% of the reading.
Simple Connectivity
Utilizes a 10-pin mini-USB connector for power input and analog video output, simplifying integration.
MAVLink and PWM Control
Enables integration with flight control systems and allows in-flight camera adjustments including zoom and color palettes.
Field-Optimized Settings
Pre-configured for aerial use, ensuring clear imaging from above.
Compatible Software
Works with Teledyne FLIR Tools and UAS app for post-flight data analysis and device configuration.
Field-Upgradeable Firmware
Futureproof your investment with support for field upgrades.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 336 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 336 x 256
-
Lens: 9mm
-
Field of View (Digital): 35° x 27°
-
Field of View (Analog): 34° x 26°
-
Frame Rate: 7.5 Hz (NTSC); 8.3 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Detector Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: +/-5°C or 5% of reading
-
Video Format: MOV
-
Storage: MicroSD card
-
Control Interface: PWM, MAVLink, FLIR UAS mobile app
-
Connectivity: 10-pin mini-USB (power and analog video)
-
Software Compatibility: Teledyne FLIR Tools
-
Upgradeability: Field-upgradeable firmware
FAQ
Q: What type of data can the camera record?
A: It records thermal videos in MOV format and still images in 14-bit format, all stored on a microSD card.
Q: Can the camera settings be changed mid-flight?
A: Yes, camera functions like zoom and color palette can be adjusted in-flight using PWM inputs or the FLIR UAS mobile app.
Q: Is the camera compatible with mapping and precision agriculture?
A: Yes, it supports geo-tagged image capture and is ideal for aerial mapping and precision agriculture applications.
Q: How is the camera powered and connected?
A: It uses a 10-pin mini-USB connector that supplies power and supports analog video output.
