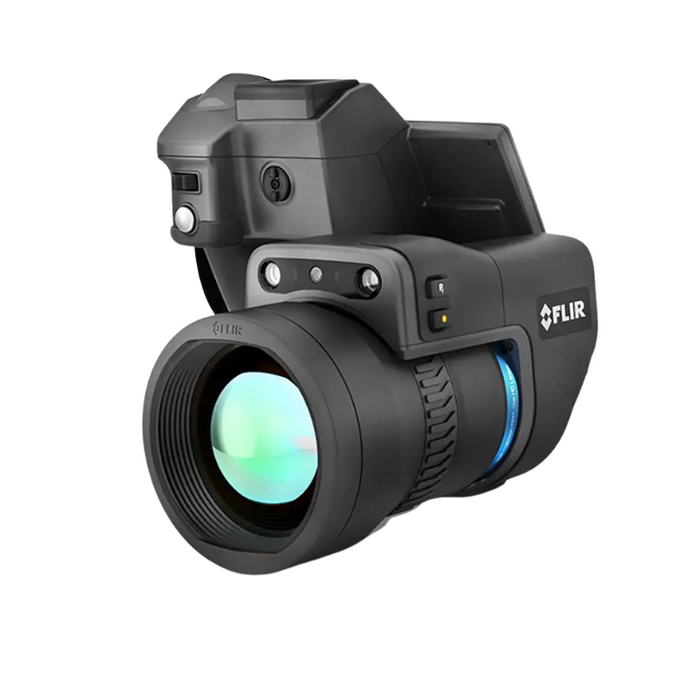

The Teledyne FLIR T1020-28 HD Thermal Imaging Camera delivers expert-level infrared imaging with unmatched clarity and precision. Built on decades of thermal innovation, this high-performance tool incorporates a 1024 x 768 detector, MSX and UltraMax technologies, and an integrated viewfinder to ensure the sharpest thermal detail and measurement accuracy. Whether assessing mechanical systems, inspecting electrical panels, or conducting R&D, the T1020-28 meets the demands of the most rigorous professionals.
Equipped with the OSX Precision HDIR optical system, this camera provides an ultra-clear thermal view across varying distances. Advanced features like 1-Touch Level/Span, intuitive GUI navigation, and full-frame radiometric video capture make operation seamless. With the benefit of Teledyne FLIR Tools+ software included, users can quickly analyze data and generate insightful reports.
What's Included:
- Teledyne FLIR T1020-28 HD Thermal Imaging Camera
- 28° Precision HDIR Lens
- Built-in Viewfinder
- Teledyne FLIR Tools+ Software
- Battery and Charger
- Carrying Case
- Calibration Certificate
- USB Cable and Video Output Accessories
Features
High-Resolution Thermal Imaging
Features a 1024 x 768 detector with UltraMax enhancement, delivering up to 3.1 MP thermal resolution for crisp image detail.
Enhanced Measurement Accuracy
UltraMax technology improves spot-size ratio, making temperature readings more precise, even on small targets.
Integrated MSX Technology
Multi-Spectral Dynamic Imaging (MSX) overlays visual edge detail onto thermal imagery for improved scene context.
Wide Object Temperature Range
Measures temperatures from -40°C to 2000°C, suitable for a broad spectrum of electrical, mechanical, and industrial applications.
Customizable PIP and Alarms
Includes resizable Picture-in-Picture and user-configurable alarms for above/below thresholds and insulation/moisture detection.
Full Radiometric Video Recording
Capture high-speed, full-resolution radiometric video for advanced diagnostics and reporting.
Built-In Viewfinder
800 x 480-pixel viewfinder enhances usability in bright conditions or detailed inspection tasks.

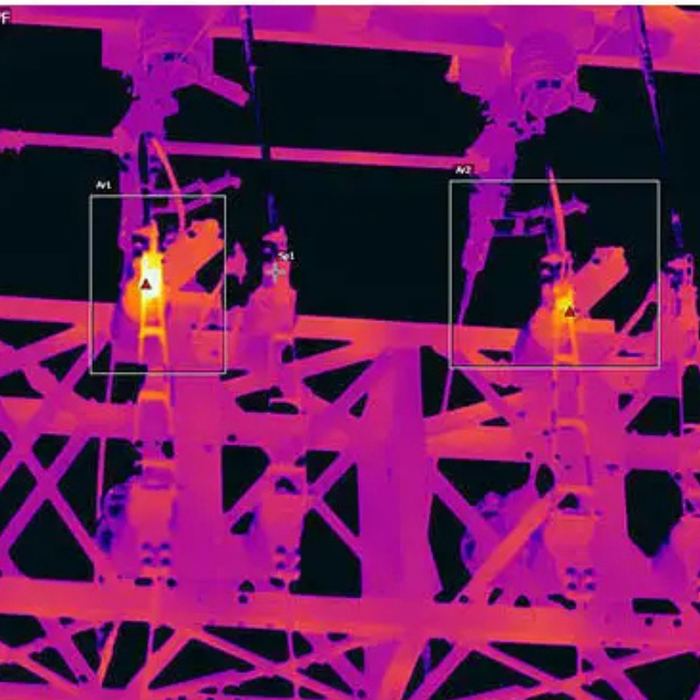

Advanced Analysis Tools
Up to 10 spotmeters and 5+5 area tools provide detailed temperature analysis with min/max/avg values.
GPS and Compass Tagging
Automatic geolocation for image logging and documentation in the field.
User-Friendly Interface
Intuitive touchscreen interface and dynamic focus control streamline workflows and reduce inspection time.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-28 HD Thermal Imaging Camera
- 28° Precision HDIR Lens
- Built-in Viewfinder
- Teledyne FLIR Tools+ Software
- Battery and Charger
- Carrying Case
- Calibration Certificate
- USB Cable and Video Output Accessories
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 MP
-
Thermal Sensitivity/NETD: < 20 mK @ 30°C
-
Field of View: 28° x 21° (36 mm lens)
-
Viewfinder Resolution: 800 x 480 pixels
-
Picture-in-Picture: Resizable and movable
-
IR Time-Lapse: 15 seconds to 24 hours
-
Temperature Ranges: -40°C to 150°C, 0°C to 650°C, 300°C to 2000°C
-
Accuracy: ±1°C or ±1% at 25°C for 5°C to 150°C range
-
Alarms: Above, below, interval, moisture, insulation
-
Alarm Output: Audible and visible triggers
-
GPS & Compass: Automatic image tagging
-
METERLiNK: Multiple sensor reading integration
-
Spotmeters: Up to 10
-
Measurement Areas: 5 boxes and 5 circles with max/min/avg
-
Display: Responsive GUI with 1-Touch Level/Span
-
Radiometric Video: Full-frame and full-resolution capability
FAQ
Q: What is UltraMax and how does it benefit thermal imaging?
A: UltraMax captures multiple images to enhance resolution and accuracy, resulting in clearer images and smaller spot sizes for more precise measurements.
Q: Can this camera be used in bright outdoor conditions?
A: Yes, the integrated high-resolution viewfinder enables effective use even in bright lighting environments.
Q: What software is included with the T1020-28?
A: It comes with Teledyne FLIR Tools+ software for thermal image analysis, video review, and professional reporting.
Q: Is the device suitable for high-temperature applications?
A: Yes, it measures up to 2000°C, making it ideal for industrial, power generation, and metallurgical tasks.
Q: Does the camera support radiometric video recording?
A: Yes, it captures full-frame radiometric video for in-depth post-capture analysis.
