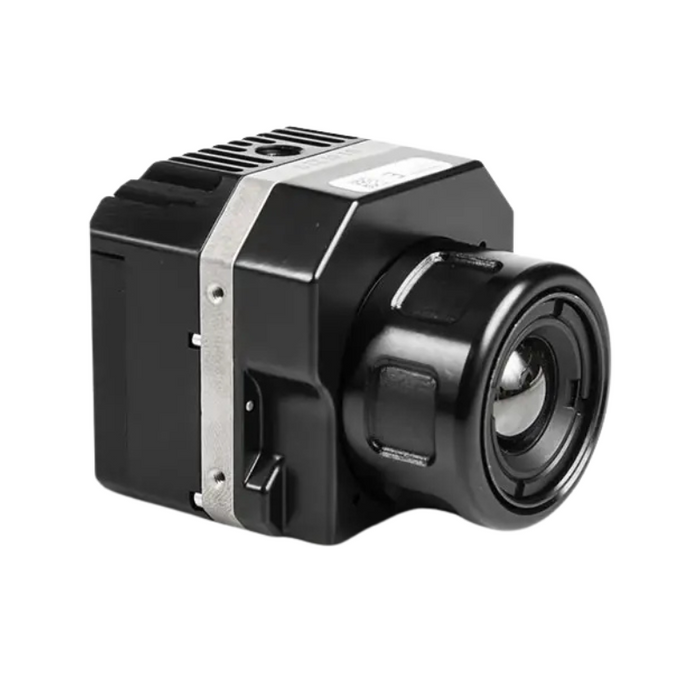

The Teledyne FLIR VUE-PRO-336-6.8MM-30HZ Thermal Imager for Drones (sUAS) is a high-performance thermal camera built for professional drone applications. With a compact design and a wide-angle 6.8mm lens, this imager captures 336 x 256 resolution thermal images at 30 Hz, providing clear, actionable visuals in real time. It records 14-bit still imagery and thermal video directly to an onboard microSD card, ensuring data integrity during flight operations.
Designed to seamlessly integrate with compatible flight control systems, the VUE-PRO can embed GPS and flight data into each captured image, making it ideal for mapping, inspections, and agricultural surveys. Users can control various camera functions mid-flight via PWM inputs or MAVLink, and analyze data post-flight using Teledyne FLIR Tools or the UAS mobile app for efficient mission planning and reporting.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 6.8mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
336 x 256 Sensor Resolution
Captures detailed thermal images ideal for inspections, mapping, and surveillance missions.
6.8mm Wide-Angle Lens
Provides a 45° x 35° field of view, enabling broad scene coverage in aerial applications.
30 Hz Frame Rate
Delivers smooth, full-motion thermal video, supporting both NTSC and PAL output formats.
Uncooled VOx Microbolometer
Offers reliable thermal detection across a 7.5 to 13.5 μm spectral band.
Real-Time Temperature Measurement
Accurately measures temperatures with ±5°C or 5% of reading precision.
Onboard Storage and Video Recording
Records MOV format thermal videos and 14-bit still images to a microSD card.
Integrated MAVLink and PWM Controls
Allows in-flight control of color palettes, zoom, and other functions using drone inputs.
Teledyne FLIR Tools Compatibility
Enables comprehensive post-flight analysis and report generation.
UAS Mobile App Support
Configure and manage camera settings wirelessly via mobile app.
Simple Power and Video Interface
Uses a 10-pin mini-USB connector for combined power input and analog video output.
Field-Upgradeable Design
Keeps your equipment current with firmware and feature updates.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 6.8mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 336 x 256
-
Lens: 6.8mm
-
Field of View: 45° x 35° (digital); 44° x 33° (NTSC analog output)
-
Frame Rate: 30 Hz (NTSC); 25 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Thermal Imager Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: ±5°C or 5% of reading
-
Video Recording: MOV format to microSD card
-
Image Format: 14-bit still images
-
Interface: 10-pin mini-USB (power-in/analog video-out)
-
Control Inputs: PWM and MAVLink
-
Software Compatibility: Teledyne FLIR Tools, UAS mobile app
-
Upgradeability: Field-upgradeable firmware and settings
FAQ
Q: Can the VUE-PRO record both video and still images?
A: Yes, it can record real-time thermal video in MOV format and capture 14-bit still images to a microSD card.
Q: How is the thermal data integrated with flight data?
A: When connected to compatible flight controllers, the imager automatically embeds GPS and flight information into each image.
Q: What is the field of view with the 6.8mm lens?
A: It provides a wide 45° x 35° digital and 44° x 33° NTSC analog field of view.
Q: Can I control camera settings in-flight?
A: Yes, the camera supports in-flight controls via PWM inputs and MAVLink for zoom, palette changes, and more.
