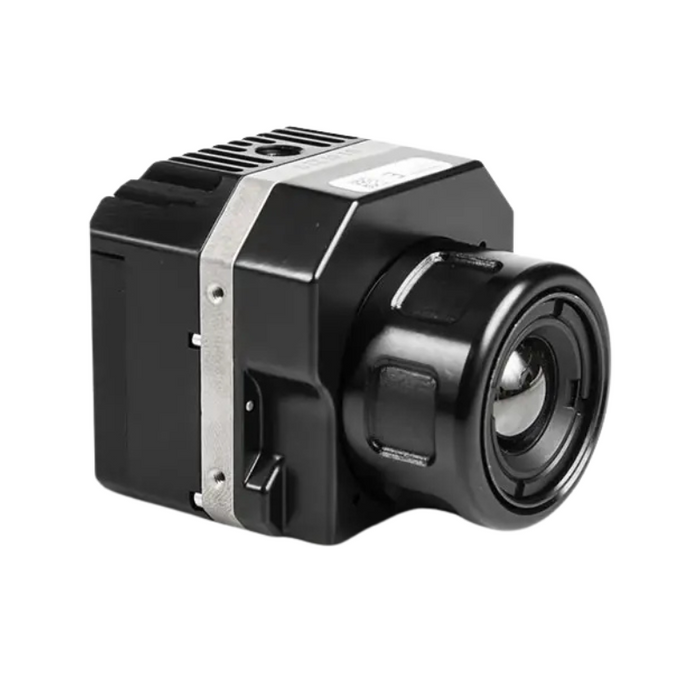

The Teledyne FLIR VUE-PRO-640-9MM-30HZ Thermal Imager is an advanced aerial thermal camera purpose-built for drone (sUAS) applications. With a resolution of 640 x 256 and a 9mm lens offering a wide 69° field of view, this imager provides exceptional infrared data capture for professionals in mapping, agriculture, inspection, and emergency response.
Designed for integration, the VUE-PRO offers non-contact, real-time temperature measurement and full video/still image recording to an onboard microSD card. When connected to a compatible flight controller, it automatically embeds geolocation data into each image, streamlining post-flight processing. Users can configure and control camera functions via PWM or the dedicated FLIR UAS mobile app for maximum in-flight flexibility.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 640 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Imaging
Captures detailed thermal imagery with a 640 x 256 resolution, ideal for precision-based aerial applications.
Wide Field of View
Features a 9mm lens with a 69° x 56° field of view, enabling broad coverage in each flight pass.
Full Frame Rate Video
Delivers smooth real-time video with 30 Hz NTSC or 25 Hz PAL output for responsive imaging.
Spectral Range
Operates across a spectral band of 7.5 µm to 13.5 µm, suitable for various environmental conditions.
VOx Microbolometer Sensor
Utilizes an uncooled VOx sensor for reliable and consistent thermal readings.
Integrated Data Recording
Records thermal videos in MOV format and stores 14-bit stills directly to a microSD card.
MAVLink Compatibility
Supports MAVLink protocol for telemetry and control, enhancing flight system integration.
Geotagging Functionality
Automatically embeds flight and GPS data into images for seamless post-flight mapping.
In-Flight Control via PWM
Allows remote adjustments to color palettes, zoom, and other camera settings.
Field-Upgradeable Design
Enables firmware upgrades without returning the unit, reducing downtime and increasing flexibility.
UAS Mobile App Control
Configure and manage settings with Teledyne FLIR's mobile app tailored for drone users.
FLIR Tools Compatibility
Analyze captured data and generate reports using the industry-standard FLIR Tools software.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 640 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 640 x 256
-
Lens: 9mm
-
Field of View: 69° x 56° (standard); 62° x 49° (NTSC analog output)
-
Frame Rate: 30 Hz (NTSC); 25 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Sensor Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: ±5°C or 5% of reading
-
Video Format: MOV
-
Still Image Format: 14-bit
-
Control Interface: PWM and MAVLink
-
Data Storage: MicroSD Card
-
Software Compatibility: Teledyne FLIR Tools and FLIR UAS mobile app
-
Connectivity: 10-pin mini-USB (power and analog video out)
-
Upgrade Capability: Field-upgradeable firmware
FAQ
Q: Does the VUE-PRO-640-9MM-30HZ support real-time geotagging?
A: Yes, it embeds GPS and flight data into each image when integrated with compatible flight control systems.
Q: Can I control the camera during flight?
A: Yes, camera functions such as zoom and palette can be controlled via PWM inputs or through the UAS app.
Q: What kind of data can it record?
A: The imager records thermal video in MOV format and 14-bit still images to a microSD card.
Q: Is it compatible with FLIR’s analysis tools?
A: Yes, it works with Teledyne FLIR Tools for comprehensive post-flight data analysis and reporting.
