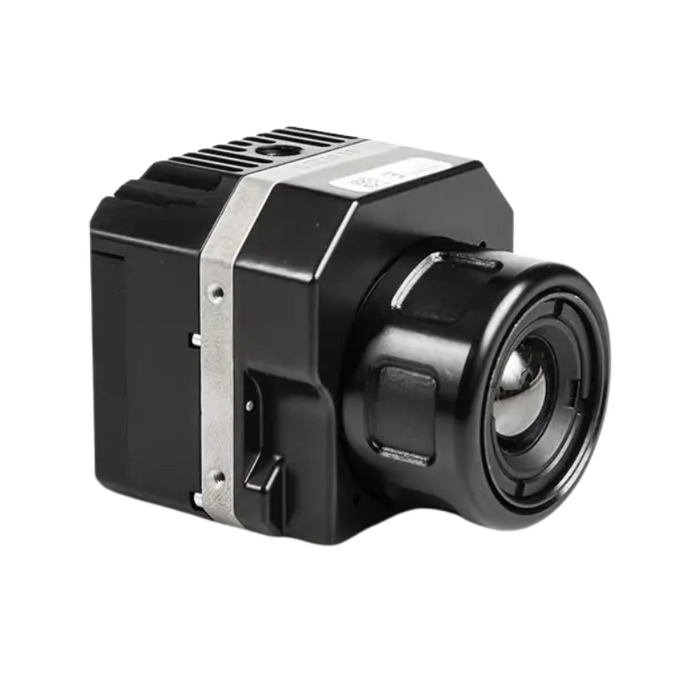

The Teledyne FLIR VUE-PRO-640-19MM-9HZ Thermal Imager is purpose-built for sUAS applications requiring reliable thermal imaging and data collection. Designed for professionals, this compact and lightweight module enhances drone-based operations by delivering high-resolution thermal imagery at 640 x 256 with a 19mm lens and 9 Hz frame rate.
With its integrated microSD recording capability, users can capture 14-bit still imagery and real-time thermal video in MOV format, ensuring essential data is always retained. Geo-tagging is supported through MAVLink integration for accurate mapping and surveying, while the device’s uncooled VOx microbolometer ensures precise, non-contact temperature measurements.
Onboard controls via PWM inputs and FLIR’s UAS mobile app allow in-flight function adjustments, including color palette and zoom settings. Optimized for airborne thermal imaging, the VUE-PRO series is field-upgradeable and compatible with FLIR Tools for thorough post-flight analysis.
What's Included:
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Sensor
Delivers 640 x 256 resolution with a 19mm lens for detailed thermal imaging during aerial surveys.
Dual Video and Image Recording
Captures thermal video in MOV format and 14-bit still images directly to an onboard microSD card.
MAVLink Integration
Enables geo-tagging of images and supports flight data overlays, ideal for mapping and precision agriculture.
Flight-Optimized Imaging
Image settings are fine-tuned specifically for aerial environments to ensure clear and accurate readings.
Thermal Measurement Accuracy
Measures temperature with ±5°C or 5% of reading accuracy using an uncooled VOx microbolometer sensor.
Simple Interface
Operates using a straightforward 10-pin mini-USB connector for power and analog video output.
On-the-Fly Adjustments
Camera functions like color palette and zoom are adjustable via PWM input from compatible controllers.
Mobile App and Desktop Software Support
Manage and analyze data using Teledyne FLIR’s UAS app and FLIR Tools software.
Global Spectral Band Coverage
Detects thermal energy in the 7.5 µm to 13.5 µm range, suitable for diverse operational needs.
Field Upgradeable
Keep your device up-to-date with firmware improvements and feature enhancements.
What's Included
Included with Your Purchase:
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
-
Sensor Resolution: 640 x 256
-
Field of View: 32° x 26° (digital); 32° x 24° (NTSC analog)
-
Lens: 19mm
-
Frame Rate: 7.5 Hz (NTSC); 8.3 Hz (PAL)
-
Spectral Band: 7.5 µm to 13.5 µm
-
Thermal Imager Type: Uncooled VOx Microbolometer
-
Measurement Accuracy: ±5°C or 5% of reading
-
Video Output: Analog via 10-pin mini-USB
-
Recording Format: MOV (thermal video); 14-bit stills
-
Control Options: PWM, UAS Mobile App
-
Software Compatibility: Teledyne FLIR Tools
-
Upgradeability: Field-upgradeable
-
Condition: New
FAQ
Q: Can the FLIR VUE-PRO record video and still images simultaneously?
A: Yes, it records thermal video in MOV format and 14-bit stills directly to a microSD card.
Q: Is the camera compatible with standard drone controllers?
A: Yes, PWM input allows integration with many drone control systems for in-flight adjustments.
Q: How does the camera support mapping applications?
A: Through MAVLink integration, the camera can embed geo-location and flight data into captured images.
Q: What is the accuracy of temperature readings?
A: The thermal imager has a measurement accuracy of ±5°C or 5% of the reading.
Q: Is it possible to upgrade the firmware?
A: Yes, the camera is field-upgradeable for future enhancements.
