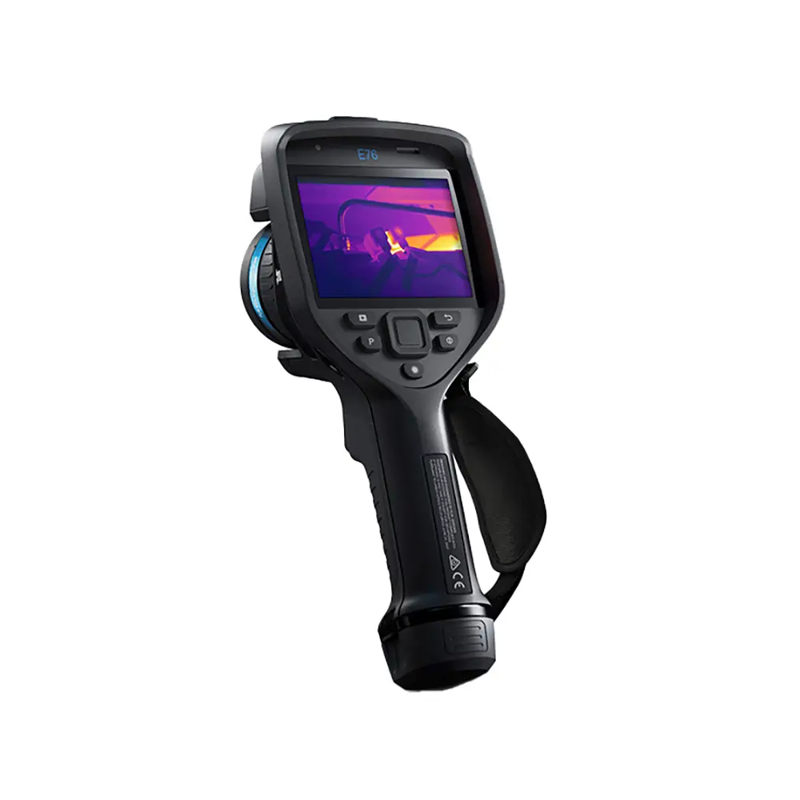

The Teledyne FLIR E76-Dual-FOV-24-42+14 Advanced Thermal Imager delivers unmatched flexibility and precision with its innovative dual-lens system. Equipped with a 14° standard lens and a FlexView Dual Field-of-View 42°/24° lens, it allows professionals to seamlessly switch between wide and narrow views in just one second, optimizing both scanning coverage and detail accuracy. Whether detecting anomalies across large areas or honing in on critical hotspots, this imager ensures high-efficiency inspections while minimizing the need to swap out lenses in the field.
Enhanced with FLIR’s proprietary Vision Processing technologies—MSX, UltraMax, and advanced annotation options—this unit produces exceptionally sharp thermal imagery. Laser-assisted autofocus and an onboard FLIR Inspection Route system help streamline workflows, while FLIR Ignite offers secure cloud-based image transfer and storage. With its robust build, integrated voice and text notes, GPS tagging, and compatibility with leading analysis software, the E76-Dual-FOV is ideal for professionals demanding reliability, speed, and accuracy in every thermal scan.
What's Included:
- FLIR E76 Thermal Imager
- 14° Thermal Lens
- FlexView Dual FOV 42°/24° Lens
- FLIR Thermal Studio Starter License
- USB Cable and Power Adapter
- Hard Carrying Case
- Battery and Charger
- Wrist Strap and Neck Strap
- Lens Cleaning Cloth
Features

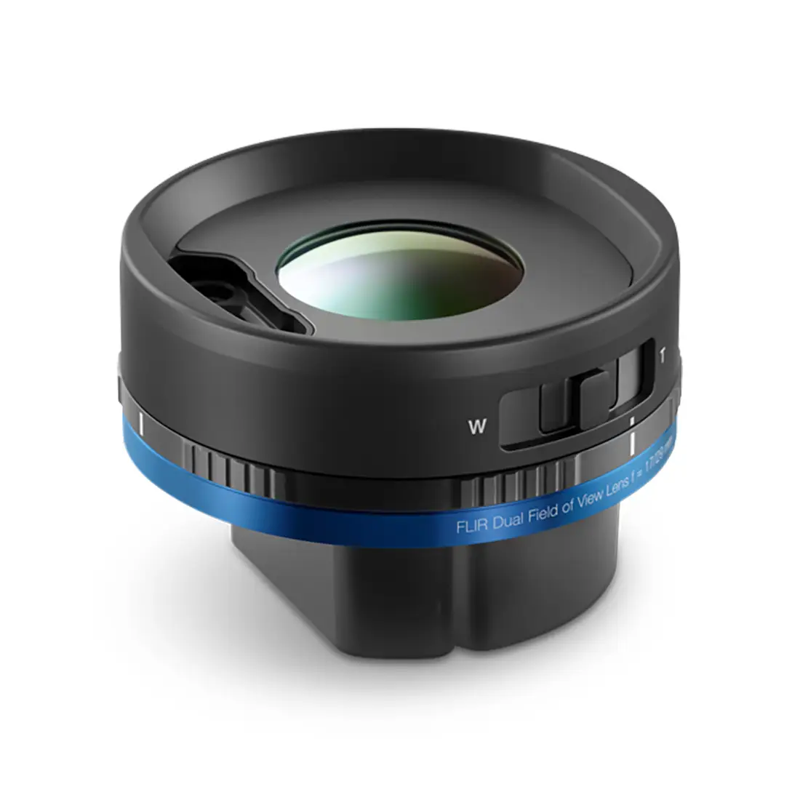

Dual FOV with FlexView Lens

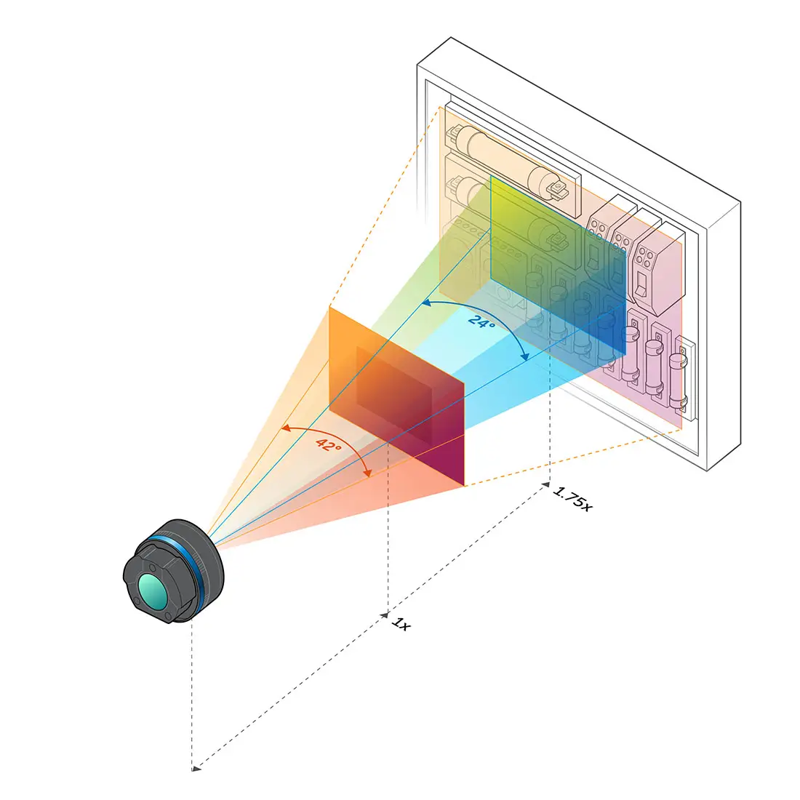

Enables effortless switching between wide and narrow field of view in one second, optimizing detail and coverage without changing lenses.
FLIR Vision Processing Technologies
Combines MSX, UltraMax, and advanced image processing to deliver crisp, detailed thermal visuals.
Laser Autofocus and LDM
Delivers fast, accurate focusing with laser-assisted precision for dependable inspections.
Integrated FLIR Inspection Route
Guides users through pre-configured inspection routes, boosting efficiency in large or repetitive scan environments.
Annotation and Connectivity Options
Supports voice, text, and sketch annotations along with GPS image tagging and Bluetooth METERLiNK integration.
Built-In Wi-Fi with FLIR Ignite
Enables automatic cloud uploads for secure backup, sharing, and collaboration.
Enhanced Safety and Portability
Minimizes exposure in hazardous areas with zoomed-in imaging and supports extended use through a lighter build.
Advanced Measurement Tools
Includes laser pointer, laser distance meter, and multi-spot metering with user-defined presets.
Seamless Workflow Integration
Compatible with FLIR Mobile, Thermal Studio, and Research Studio software for streamlined data analysis and reporting.
Dust-Resistant Design
Designed for rugged use without the risk of contaminating internal components when adjusting lens field of view.
What's Included
Included with Your Purchase:
- FLIR E76 Thermal Imager
- 14° Thermal Lens
- FlexView Dual FOV 42°/24° Lens
- FLIR Thermal Studio Starter License
- USB Cable and Power Adapter
- Hard Carrying Case
- Battery and Charger
- Wrist Strap and Neck Strap
- Lens Cleaning Cloth
Specifications
-
IR Resolution: 320 x 240
-
UltraMAX Resolution: 307,200 effective pixels
-
Object Temperature Range: -4° to 248°F, 32° to 1202°F
-
Thermal Lens: 14°, FlexView Dual FOV 42°/24°
-
Detector Type: Uncooled microbolometer
-
Detector Pitch: 17 µm
-
Digital Zoom: 1 to 4x, continuous
-
Thermal Sensitivity/NETD: 30 mK at 86°F (42° lens)
-
Image Frequency: 30 Hz
-
Lens Identification: Automatic
-
Focus: Continuous with LDM, one-shot LDM, one-shot contrast, manual
-
Display: 640 x 480 (VGA) Dragontrail touchscreen
-
Digital Camera: 5 MP fixed focus with built-in LED lamp
-
Accuracy: ± 3.6°F/± 2% of reading
-
Spotmeter/Area: 3 each in live mode
-
Measurement Presets: Center spot, hot spot, cold spot, User Preset 1, User Preset 2
-
Laser Pointer: Yes
-
Laser Distance Meter: Yes
-
Voice Annotation: Via built-in mic or Bluetooth headset
-
Text Annotation: Predefined list and touchscreen keyboard
-
Image Sketch: From touchscreen on infrared images only
-
GPS Tagging: Automatic
-
Cloud Services: FLIR Ignite for secure image upload and sharing
-
Wireless Communication: METERLiNK via Bluetooth
-
Radiometric JPEG: Yes
-
Radiometric Video Recording: Yes
-
Radiometric Video Streaming: UVC and Wi-Fi supported
-
Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
FAQ
Q: Can I switch between wide and narrow FOV without changing lenses?
A: Yes, the FlexView lens allows you to switch between 42° and 24° fields of view with a quick push/pull toggle.
Q: Does this camera support wireless data transfer?
A: Yes, it supports Wi-Fi and Bluetooth connectivity and integrates with FLIR Ignite for cloud upload.
Q: What type of annotations can I add to images?
A: You can add voice, text, and sketches directly on infrared images using the touchscreen or Bluetooth headset.
Q: Is the imager suitable for high-temperature industrial applications?
A: Yes, it measures temperatures up to 1202°F, making it suitable for a wide range of industrial environments.
Q: How rugged is the device for field use?
A: It’s built to withstand harsh environments and designed for portability and protection in jobsite conditions.
