The Teledyne FLIR E76 Dual FOV 14° + 24° Thermal Imager is designed to deliver exceptional imaging performance and operational efficiency for professional inspections. With its FLIR FlexView dual field of view lens, users can instantly toggle between wide-area and telephoto perspectives—14° and 24°—with a simple click, eliminating the hassle of manually switching lenses. This seamless shift not only increases workflow speed but also protects the optics from environmental hazards like dust and debris.

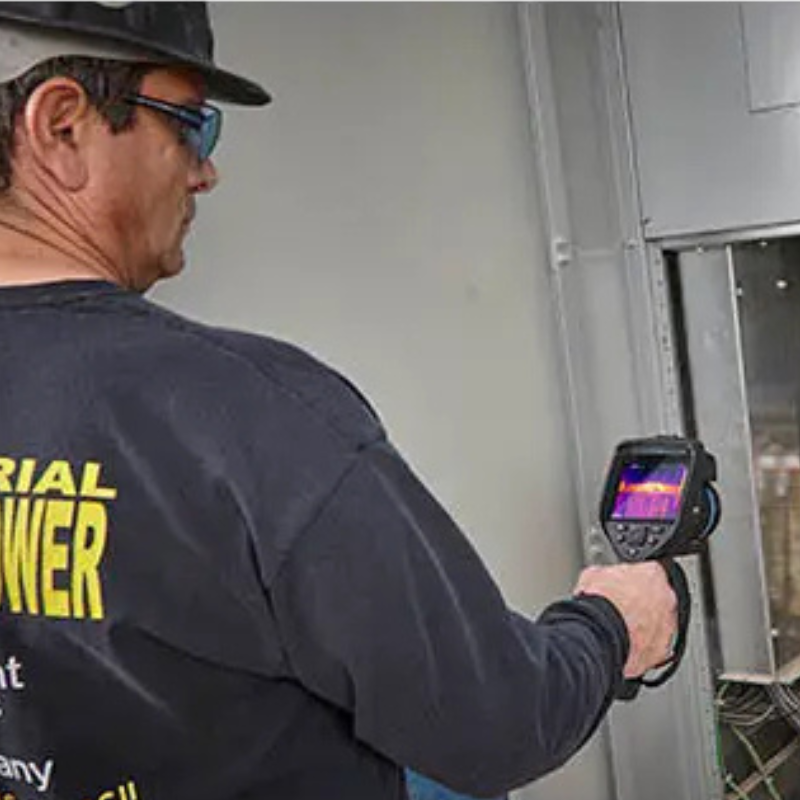

Engineered for accuracy, the E76 features full radiometric capabilities and superior image quality, with a high-resolution 320 × 240 sensor and 30 Hz refresh rate. Its radiometric zoom and ultra-fast 1-second toggle time empower users to capture detailed thermal imagery with efficiency and precision. Ideal for building diagnostics, electrical inspections, and mechanical assessments, this thermal imager is a powerful tool for those who demand clarity and versatility in one rugged package.
What's Included:
- 1 - Power Supply
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Adapter
- 1 - USB Type-C to USB Type-C Cable
- 1 - Front Protection Fastener
- 1 - Left Hand Strap Bracket
- 1 - Right Hand Strap Bracket
- 1 - Torx T10 Wrench
- 1 - Carabiner Hook
- 1 - Front Protection
- 1 - Hand Strap
- 1 - Lanyard Strap
- 1 - Lens Cap Strap
- 1 - Wrist Strap
- 2 - Battery
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Infrared Camera with Lens
- 1 - Front Lens Cap
- 1 - Front and Rear Lens Cap (only for extra lenses)
- 1 - FLIR Thermal Studio
Features
High-Resolution Imaging
Delivers clear, detailed thermal images with a 320 × 240 infrared resolution for accurate diagnostics and reporting.
Dual Field of View Lens
Equipped with FlexView technology to instantly switch between 14° and 24° lens settings for wide-area or detailed views.
Radiometric Zoom
Maintains radiometric data while zooming, allowing for precise temperature measurements at various distances.
1-Second Toggle Time
Quickly shifts between views without delay, optimizing workflow in dynamic inspection environments.
Lens Protection
Minimizes risk of damage from manual lens changes by using a built-in switching mechanism to reduce dust and debris exposure.
Laser-Assisted Autofocus
Ensures sharp focus on critical components by using laser-based distance measurement technology.
Advanced Image Clarity
Features MSX technology for enhanced detail and context in thermal images.
What's Included
Included with Your Purchase:
- 1 - Power Supply
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Adapter
- 1 - USB Type-C to USB Type-C Cable
- 1 - Front Protection Fastener
- 1 - Left Hand Strap Bracket
- 1 - Right Hand Strap Bracket
- 1 - Torx T10 Wrench
- 1 - Carabiner Hook
- 1 - Front Protection
- 1 - Hand Strap
- 1 - Lanyard Strap
- 1 - Lens Cap Strap
- 1 - Wrist Strap
- 2 - Battery
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Infrared Camera with Lens
- 1 - Front Lens Cap
- 1 - Front and Rear Lens Cap (only for extra lenses)
- 1 - FLIR Thermal Studio
Specifications
-
IR Resolution: 320 × 240
-
Lens Type: Dual FOV 14° and 24°
-
Image Frequency: 30 Hz
-
Thermal Sensitivity/NETD: < 40 mK at 86°F
-
Radiometric Zoom: Yes
-
Toggle Time: 1 second
-
Autofocus: Laser-assisted
-
Measurement Boxes: 3 Area Measurement Boxes
-
Software: Includes FLIR Thermal Studio
FAQ
Q: Can the lens be changed manually if needed?
A: The unit is designed with a built-in dual FOV lens to avoid manual changes, ensuring easier operation and lens protection.
Q: Does this thermal imager support image enhancements?
A: Yes, it features MSX technology for better image detail and visual context.
Q: What kind of storage does it come with?
A: It includes an 8 GB SD card for image and data storage.
Q: Is the camera compatible with external displays?
A: Yes, it comes with a USB Type-C to HDMI adapter for video output.
