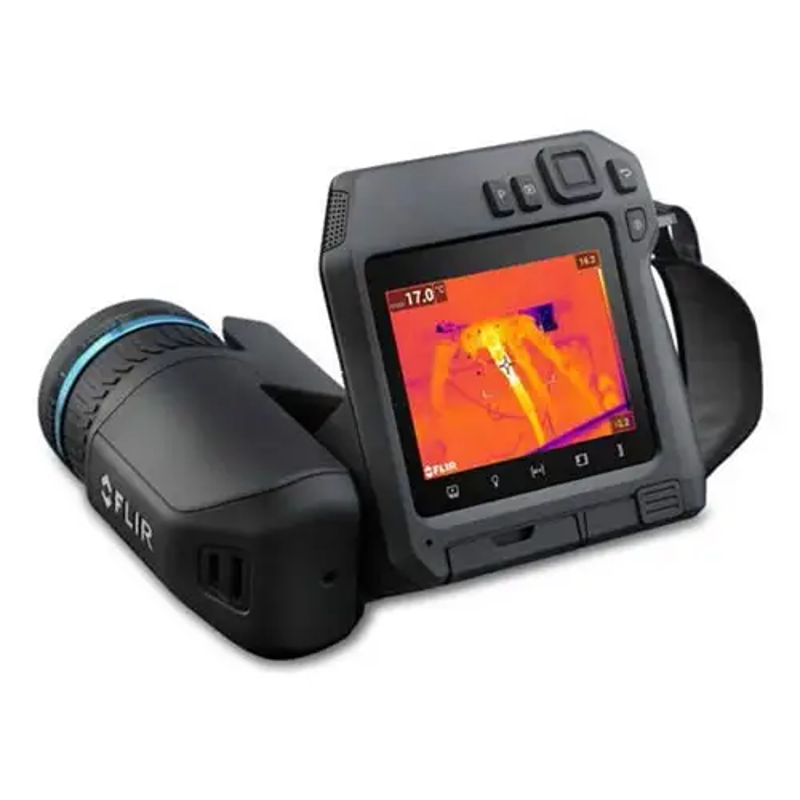

The Teledyne FLIR T530-42-14-NIST Thermal Imaging Camera is purpose-built for professionals in power generation, manufacturing, and electrical inspection fields. With its 320 x 240 thermal resolution and versatile 14° and 42° lenses, it provides highly accurate imaging across a broad temperature range of -4°F to 1202°F. Its 180° rotating optical block simplifies inspections in tight or awkward locations, allowing for ergonomic operation throughout the day.
MSX technology overlays visible-light details on infrared imagery, dramatically improving clarity and context. UltraMax superresolution quadruples thermal image data for enhanced detail and measurement precision, while FLIR Vision Processing ensures low-noise imagery with adaptive filtering. Laser-assisted autofocus and distance measurement help ensure measurement reliability, even from a distance.
Users benefit from intuitive operation via a rapid-response touchscreen, customizable buttons, and workflow-enhancing features like built-in voice notes, text annotation, and GPS tagging. With its NIST certificate, this camera meets stringent calibration standards, making it a trusted tool for critical inspections.

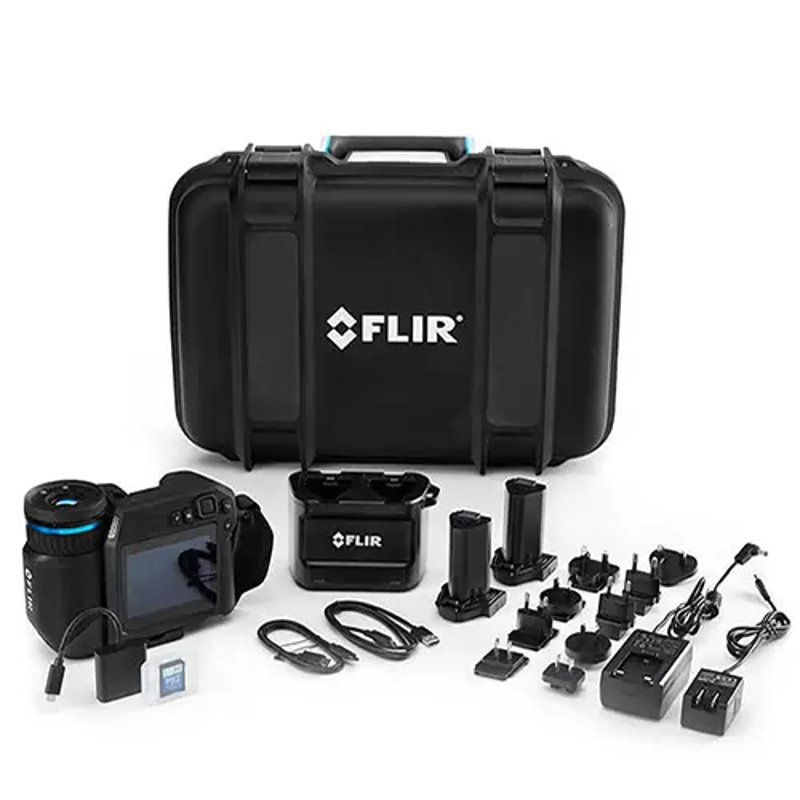

What's Included:
- Teledyne FLIR T530 Thermal Camera
- 14° and 42° Interchangeable AutoCal Lenses
- NIST Calibration Certificate
- Laser-assisted Autofocus System
- On-screen Laser Distance Measurement
- FLIR UltraMax and MSX Imaging Enhancements
Features
Dual 14° and 42° Lenses
Offers flexible field-of-view options to switch between wide-angle scanning and focused detail capture without changing devices.
Wide Temperature Range
Measures temperatures from -4 to 1202°F, with optional upgrade for high-temperature applications.

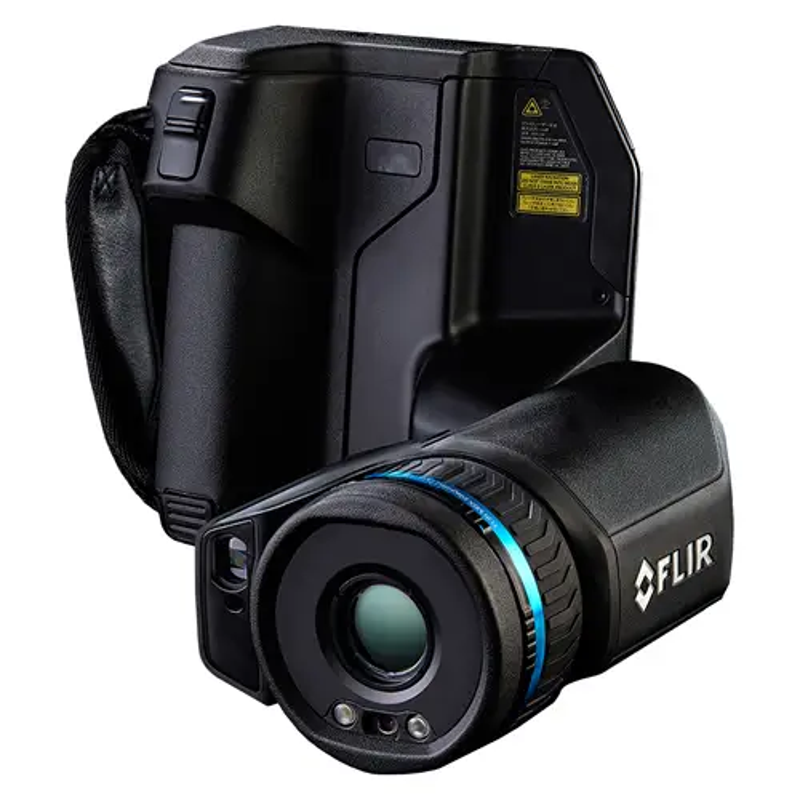

Ergonomic 180° Rotating Block
Capture thermal images from overhead, below, or tight angles with reduced user fatigue.
Laser-assisted Autofocus
Ensures clear, accurate focus and temperature readings at all times.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering to deliver sharp, noise-free thermal imagery.
On-screen Distance Measurement
Instantly gauge accessibility of components and size of thermal anomalies.

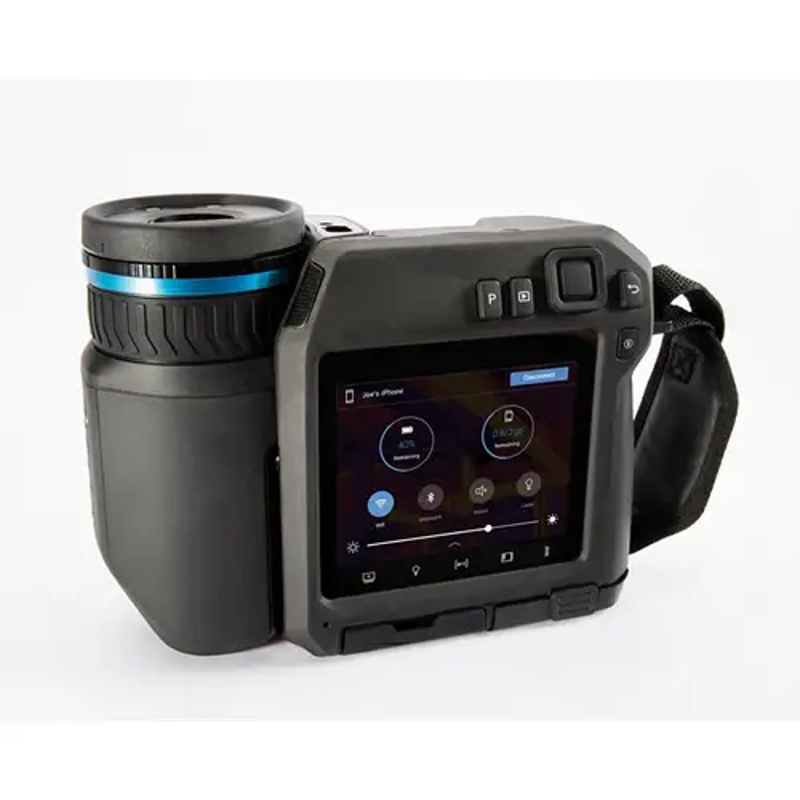

Durable 4-inch Touchscreen Display
Scratch-resistant and high-resolution LCD helps you see and interpret images with ease.
Smart Workflow Integration
Features voice notes, text comments with auto-fill, and image sketching for complete documentation on the fly.
AutoCal Optics Compatibility
Share lenses across multiple cameras without recalibration thanks to intelligent lens pairing.
NIST Certificate Included
Ensures your device meets traceable calibration standards via a comprehensive 12-point inspection.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Camera
- 14° and 42° Interchangeable AutoCal Lenses
- NIST Calibration Certificate
- Laser-assisted Autofocus System
- On-screen Laser Distance Measurement
- FLIR UltraMax and MSX Imaging Enhancements
Specifications
-
Thermal Resolution: 320 x 240 pixels
-
Field of View (Lenses): 14° and 42°
-
Temperature Range: -4°F to 1202°F (with T199616 upgrade)
-
Zoom: 1–4x continuous
-
Focus: Laser-assisted autofocus
-
Display: 4-inch scratch-resistant LCD
-
Image Enhancement: FLIR Vision Processing with MSX and UltraMax
-
Measurement Tools: On-screen laser distance and area measurement
-
Connectivity: METERLiNK enabled for external measurement data
-
Rotation Capability: 180° rotating optical block
-
User Interface: Touchscreen with programmable buttons
-
Certification: NIST traceable calibration
FAQ
Q: What are the advantages of the dual-lens system?
A: The 14° and 42° lenses allow you to adapt from wide-area inspection to close-up detail work without switching cameras.
Q: How does UltraMax improve image quality?
A: UltraMax combines multiple image frames into one higher-resolution thermal image with improved clarity and reduced noise.
Q: Is this camera suitable for industrial electrical inspections?
A: Yes, it’s designed for demanding environments including electrical distribution and manufacturing inspections.
Q: Does this camera come calibrated?
A: Yes, it includes a NIST-traceable calibration certificate.
