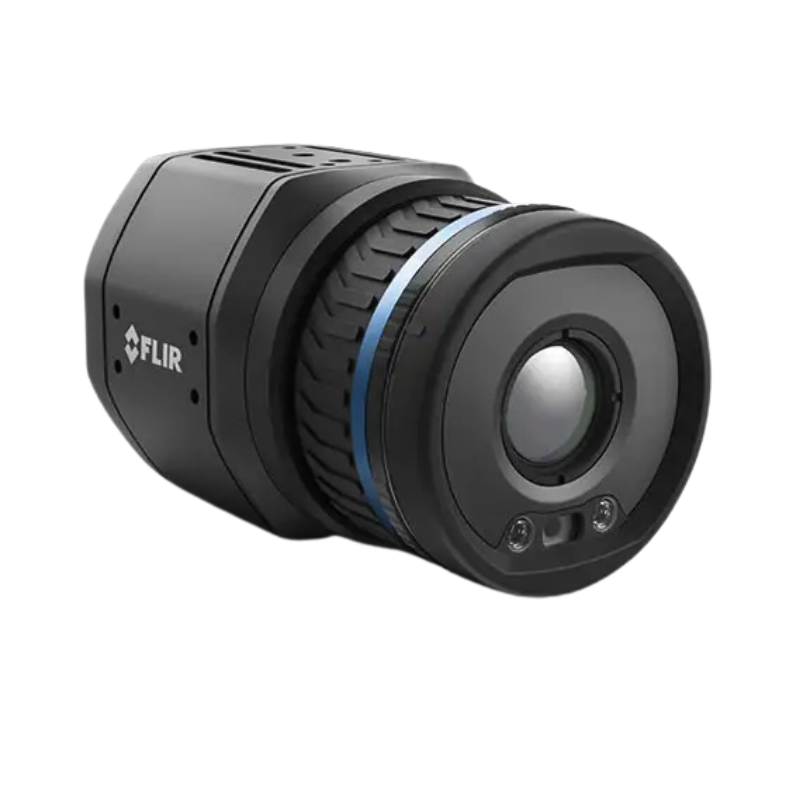

The Teledyne FLIR A400-SS-DFOV-42-24 Smart Sensor Fixed-Mount Thermal Imager delivers exceptional performance for industrial temperature monitoring where accuracy and real-time analytics are critical. Designed for demanding environments, it integrates seamlessly into complex automation systems, offering precision temperature measurement, robust alarm capabilities, and powerful edge-computing functionality. With real-time image analysis, users can monitor, diagnose, and act on thermal data without external processing.
This model includes the FlexView Dual Field of View 42°/24° Lens, providing unmatched versatility. The wide FOV supports fast scanning of large areas, while the narrow FOV focuses pixels for enhanced detail and accuracy. Switching between FOVs is fast and tool-free with a simple toggle. This flexibility boosts safety by allowing remote viewing of high-risk areas, helping users stay outside arc flash zones while maintaining precise thermal analysis.
What's Included:
- Teledyne FLIR A400 Smart Sensor Thermal Imager
- FlexView DFOV 42°/24° Lens
- Power over Ethernet (PoE) capability
- Advanced measurement and alarming software tools
Features
Advanced Smart Sensor Integration
Delivers on-camera measurement and analytics, reducing the need for external computing and providing fast results.

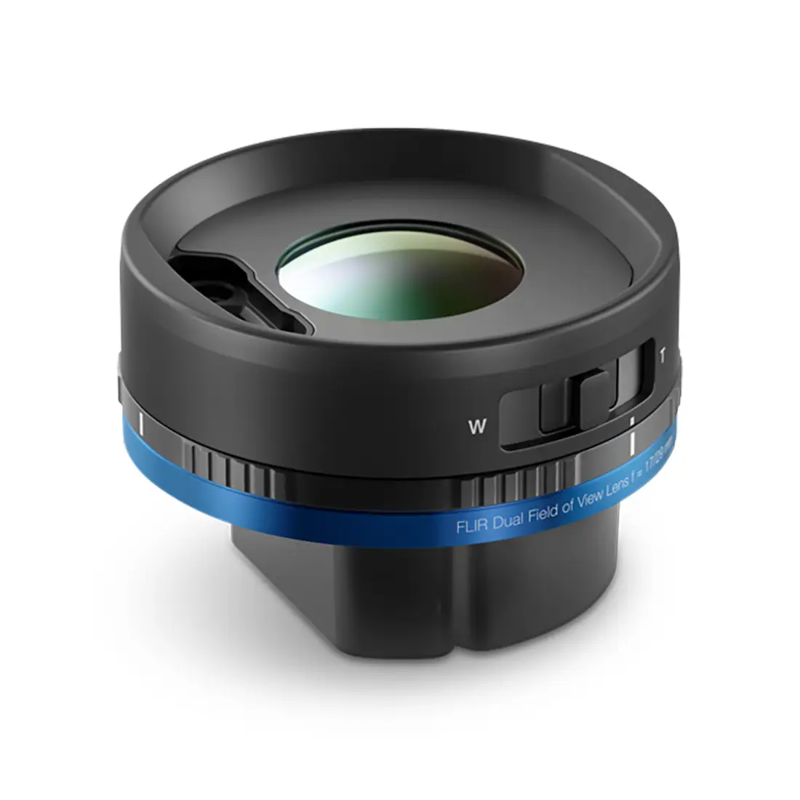

FlexView DFOV Lens System
Combines wide and narrow FOVs in one lens for quick area scanning or pinpoint accuracy without changing equipment.
Real-Time Thermal Monitoring
Supports up to 30 Hz image frequency and real-time analytics for process control, quality assurance, or safety applications.
Edge-Computing Capabilities
Built-in processing with alarm outputs and measurement tools allows autonomous operation and smart alerts.
High Connectivity and Protocol Support
Interfaces with EtherNet/IP, Modbus TCP, MQTT, and REST API for easy integration into most industrial networks.
Simple and Safe Lens Operation
Push/pull toggle lets users switch FOVs quickly while maintaining safe distance from hazardous equipment.
Enhanced Image Understanding
Improves visibility of large assets and enables precise issue localization through dynamic lens flexibility.
Comprehensive Alarm Support
Trigger alarms based on temperature conditions, input signals, or camera status with outputs via multiple protocols.
What's Included
Included with Your Purchase:
- Teledyne FLIR A400 Smart Sensor Thermal Imager
- FlexView DFOV 42°/24° Lens
- Power over Ethernet (PoE) capability
- Advanced measurement and alarming software tools
Specifications
-
IR Resolution: 320 x 240
-
Visual Resolution: 1280 x 960
-
Spectral Range: 30 mK to 50 mK (lens dependent)
-
Lens: FlexView DFOV 42°/24°
-
Focus: One-shot contrast, motorized, manual
-
Image Frequency: 30 Hz
-
Temperature Ranges: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
-
Accuracy: ± 3.6°F/± 2% of reading
-
Measurement Tools: 10 spotmeters, 10 boxes, 3 Deltas, 1 isotherm, 1 iso-coverage, 1 reference temperature
-
Measurement Frequency: ~10 Hz
-
Data Output: EtherNet/IP, Modbus TCP, MQTT, REST API
-
Dynamic Range: 16-bit
-
Alarm Function: Trigger on measurement tools, input signals, or internal temperature
-
Alarm Output: EtherNet/IP, Modbus TCP, RESTful API, e-mail
-
Video Streaming: RTSP with unicast/multicast and multiple image streams
-
Encoding: H.264/MPEG4/MJPEG
-
Ethernet Interface: Wired, PoE (IEEE 802.3af class 3), optional Wi-Fi
-
Ethernet Connectors: M12 8-pin X-coded, female/RP-SMA
-
Network Standards: 1000 Mbps, IEEE 802.3
FAQ
Q: Can the lens be switched without removing the camera?
A: Yes, the FlexView lens allows easy toggling between wide and narrow FOVs without removing or replacing components.
Q: What’s the benefit of edge computing in this thermal imager?
A: It processes analytics directly in the camera, enabling real-time results and reducing latency from data transfer.
Q: Is this unit suitable for hazardous or high-voltage environments?
A: Yes, the narrow FOV allows users to inspect equipment from a safer distance, improving operator safety.
Q: What software is compatible with the A400-SS-DFOV-42-24?
A: It integrates with various industrial protocols and works with FLIR's smart sensor and thermal analysis software platforms.
