The Teledyne FLIR A50-RD-KIT-51 A50 Image Streaming Camera Research and Development (R&D) Kit with 51° Lens, 464 x 348, 30 Hz is an affordable, ready-to-use solution for thermal imaging analysis in proof-of-concept, electronics testing, and research and development applications.
Providing thousands of temperature measurement points, this kit helps eliminate thermal guesswork, reduce product development time, and improve product efficiency and reliability. With simple connections and standard manual focus lens options, users gain flexibility to meet a variety of R&D needs.
The included Teledyne FLIR Research Studio software enables quick viewing, recording, analyzing, and sharing of thermal data across multiple platforms. When mobility is required, compressed radiometric data transmitted over Wi-Fi eliminates the need for physical cables.
What's Included:

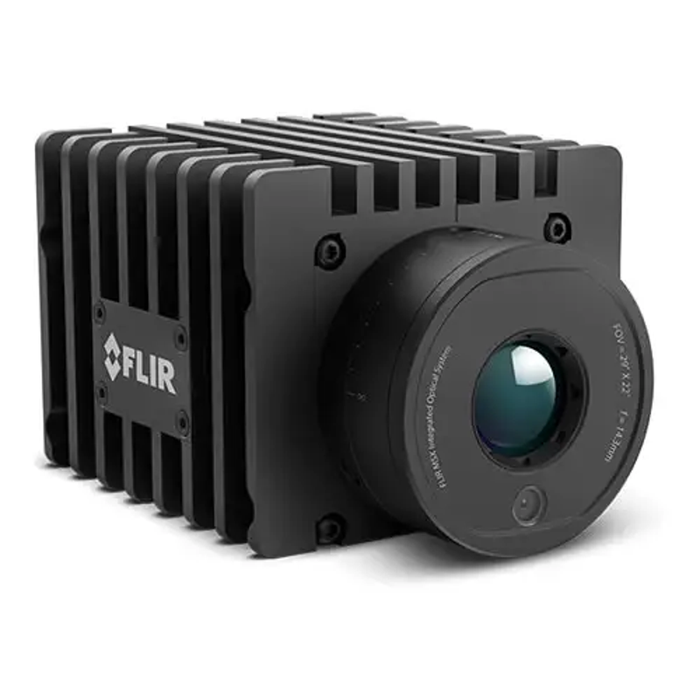

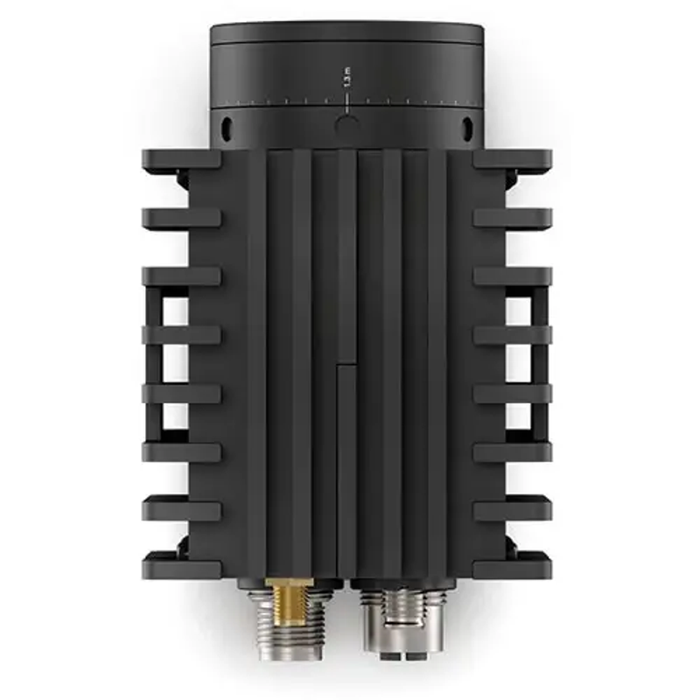

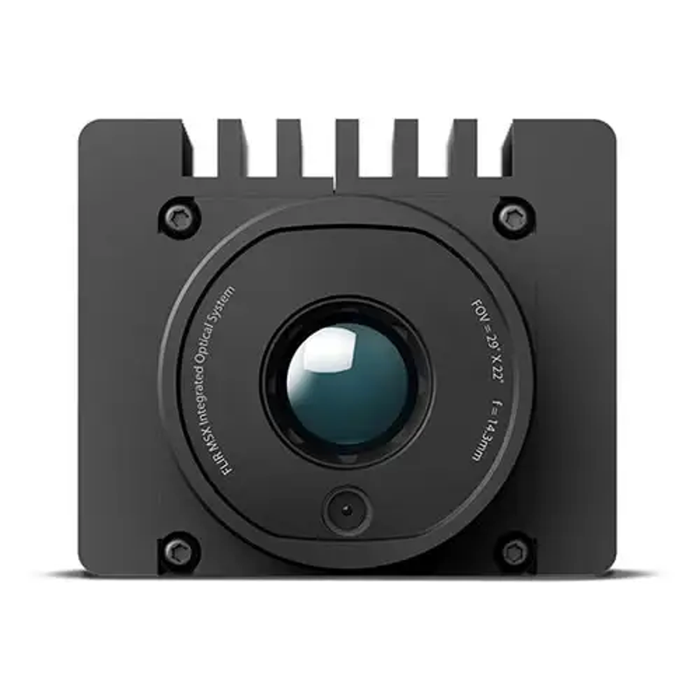

- 1 - A50 Camera with Image Streaming Configuration and 51° Lens
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Features
Accelerated Product Development
Quickly reveal thermal characteristics to eliminate guesswork and reduce development timelines.
High-Quality Infrared Imagery
Detect unknown thermal anomalies faster with clear and reliable infrared imaging.
Dual Imaging Capability
Built-in visible camera allows easy differentiation between features and components.
Enhanced Thermal Image Interpretation
Teledyne FLIR MSX technology blends visual and thermal images for greater clarity.
Simple System Integration
Non-proprietary, industry-standard interfaces help start testing with minimal setup.
Flexible Data Streaming
Stream full radiometric image data using standard Gigabit Ethernet or Wi-Fi connections.
Advanced Analysis Tools
Included Research Studio software enables detailed qualitative and quantitative analysis.
Multi-Platform Support
View, record, analyze, and share important thermal data across different platforms and languages.
Multi-Camera Comparison
Compare thermal data from multiple cameras or recorded files simultaneously.
Versatile Installation
Designed to meet demands across a range of application environments with rugged IP66 protection.
Compact and Rugged Design
Durable M-style connectors and multiple mounting options make installation easy in any location.
Convenient Power Options
Eliminate extra cables with Power over Ethernet and built-in Wi-Fi connectivity.
Scalable for Production Use
Transition easily from lab testing to process control using GigE Vision, GenICam protocols, and SDKs.
What's Included
Included with Your Purchase:
- 1 - A50 Camera with Image Streaming Configuration and 51° Lens
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Specifications
-
Detector Type: Uncooled microbolometer
-
Dynamic Range: 16-bit
-
Macro Mode: No
-
Standard Temperature Range: -20°C to 175°C; 175°C to 1000°C
-
Command and Control: Gigabit Ethernet (RTSP, GigE Vision), Wi-Fi
-
Digital I/O Connector Type: M12 Male 12-pin A-coded
-
Digital I/O Isolation Voltage: 500 VRMS
-
Digital Inputs: 2x opto-isolated
-
Digital Outputs: 3x opto-isolated, solid-state opto relay
-
Ethernet Communication: GigE Vision 1.2, Client API GenICam compliant
-
Ethernet Image Streaming: Yes
-
Ethernet Power: Power over Ethernet, IEEE 802.3af class 3
-
Wi-Fi: Yes, Peer-to-peer or Infrastructure
-
Encapsulation: IEC 60529 and IP66
-
Mounting: 1/4-20 UNC depth 7 mm + Ø5 depth 2.7 mm
-
Operating Temperature: -20°C to 50°C
-
Storage Temperature Range: -40°C to 70°C
-
Shock Resistance: IEC 60068-2-27, 25 g
-
Vibration Resistance: IEC 60068-2-6, IEC 61373 Cat 1
-
Available Lenses: Fixed lens only
-
Detector Pitch: 17 µm
-
Field of View: 51° x 39°
-
Focus: Adjustable with included tool
-
Frame Rate: 30 Hz
-
Image Modes: Thermal, visual, MSX, FSX
-
IR Resolution: 464 x 348
-
Lens: 51° fixed
-
Minimum Focus Distance: 0.2 m
-
MSX Image Enhancement: Yes
-
Spectral Range: 7.5 - 14.0 µm
-
Thermal Sensitivity/NETD: <35 mK
-
Visible Camera: Included, 1280 x 960 resolution
-
Accuracy: ±2°C or ±2% of reading
-
Power Cable Configuration: Power over Ethernet or External
-
External Voltage: 24/48 V DC, 8 W max
-
Power Connection: M12 Male 12-pin A-coded
FAQ
Q: What applications is the A50-RD-KIT-51 designed for?
A: It is ideal for proof-of-concept, electronics testing, and research and development thermal imaging analysis.
Q: How is the A50 camera powered?
A: It supports Power over Ethernet (PoE) and external 24/48 V DC power options.
Q: Can the camera stream images over Wi-Fi?
A: Yes, the A50 supports radiometric image streaming over both Ethernet and Wi-Fi.
Q: What software is included with this kit?
A: The Teledyne FLIR Research Studio software, with a one-year subscription, is included.
Q: Does this kit include mounting hardware?
A: Yes, the kit is designed for easy installation with multiple mounting options available.
