The Teledyne FLIR A500-STD Standard Science Kit includes a high-performance A500 Image Streaming Thermal Imaging Camera with a 464 x 348 IR resolution and a smooth 30 Hz frame rate. Designed for precise and efficient temperature monitoring, this kit is perfect for researchers and engineers across disciplines such as electronics, aerospace, and life sciences.
Equipped with a versatile 24° lens and both macro and manual/automatic focus capabilities, the A500-STD allows users to capture detailed thermal images across a wide range of applications. FLIR’s Research Studio software enhances data acquisition and analysis with a seamless Connect➞View➞Record➞Analyze workflow, simplifying complex tasks.

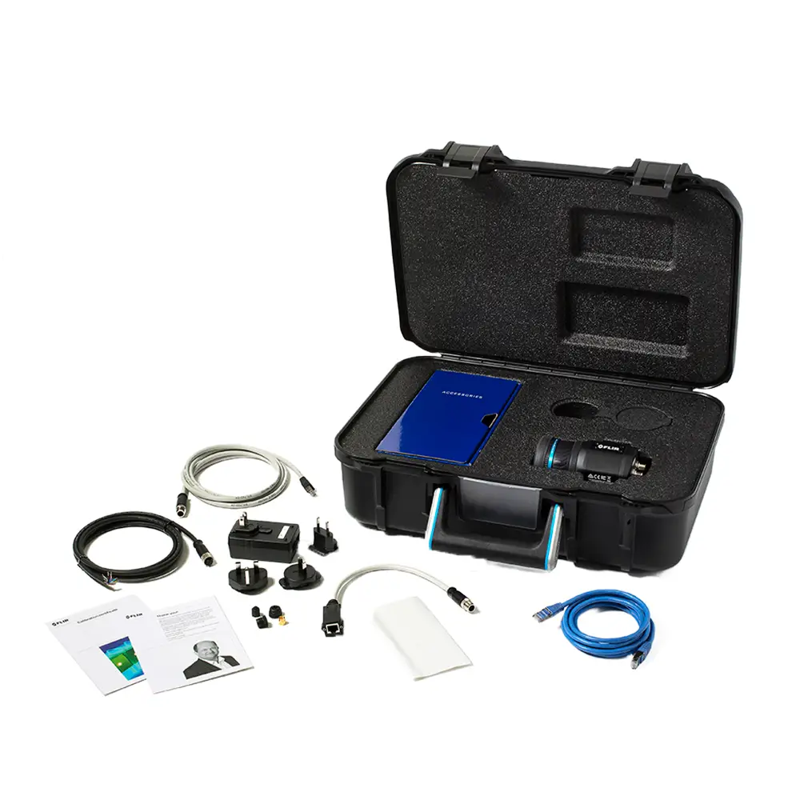

What's Included:
- 1 - A500 Image Streaming Thermal Camera
- 1 - 24° Lens
- 1 - 2.0X Macro Lens
Features
High-Resolution Imaging
Delivers sharp thermal images with 464 x 348 IR resolution for detailed temperature measurement and analysis.
Fast Frame Rate
Captures thermal data in real time with a 30 Hz refresh rate to support dynamic testing scenarios.
Flexible Focus Options
Remote, automatic, and manual focusing ensure you get the clearest thermal readings across various distances.
Advanced Thermal Sensitivity
NETD ratings from <30 mK to <50 mK depending on lens allow detection of subtle temperature differences.
Wide Spectral Range
Covers a 7.5 - 14.0 μm spectrum using an uncooled microbolometer and 17 µm detector pitch.
Macro Mode Enabled
FLIR Macro Mode allows close-up measurements of small components without the need to switch lenses.
Research Studio Integration
Utilizes FLIR’s streamlined Connect➞View➞Record➞Analyze workflow for quick results.
Multi-Lens Compatibility
Offers multiple lens options to optimize pixel density on the object of interest.
Global Collaboration Support
Software interface supports multiple languages for easy data sharing worldwide.
Secure Connectivity
Features M-style positive lock connectors for reliable connections in critical settings.
Power over Ethernet
Reduces cabling clutter by integrating power and data through standard PoE infrastructure.
Integrated Digital I/O
Allows camera control and trigger functionalities through digital input and output systems.
What's Included
Included with Your Purchase:
- 1 - A500 Image Streaming Thermal Camera
- 1 - 24° Lens
- 1 - 2.0X Macro Lens
Specifications
-
IR Resolution: 464 x 348
-
Thermal Sensitivity (NETD): <30 mK to <50 mK (depending on lens)
-
Frame Rate: 30 Hz
-
Spectral Range: 7.5 - 14.0 μm
-
Detector Type: Uncooled Microbolometer
-
Detector Pitch: 17 µm
-
Lens Included: 24° Lens + 2.0X Macro Lens
-
Focusing: Remote, Automatic, and Manual
-
Power Supply: Power over Ethernet (PoE)
-
Software Compatibility: FLIR Research Studio
-
Condition: NEW
FAQ
Q: What kind of resolution does the A500 camera offer?
A: The A500 provides a resolution of 464 x 348, suitable for detailed thermal analysis.
Q: Is software included for thermal data analysis?
A: Yes, the camera integrates with FLIR Research Studio, which simplifies the workflow for analyzing thermal data.
Q: Can I switch between focusing modes?
A: Yes, the camera supports automatic, remote, and manual focusing modes.
Q: Does it support Power over Ethernet?
A: Yes, the A500 camera uses standard PoE to eliminate extra power cables.
Q: Is Macro Mode useful for small object measurement?
A: Absolutely, FLIR Macro Mode allows you to accurately measure small objects without needing to change lenses.
