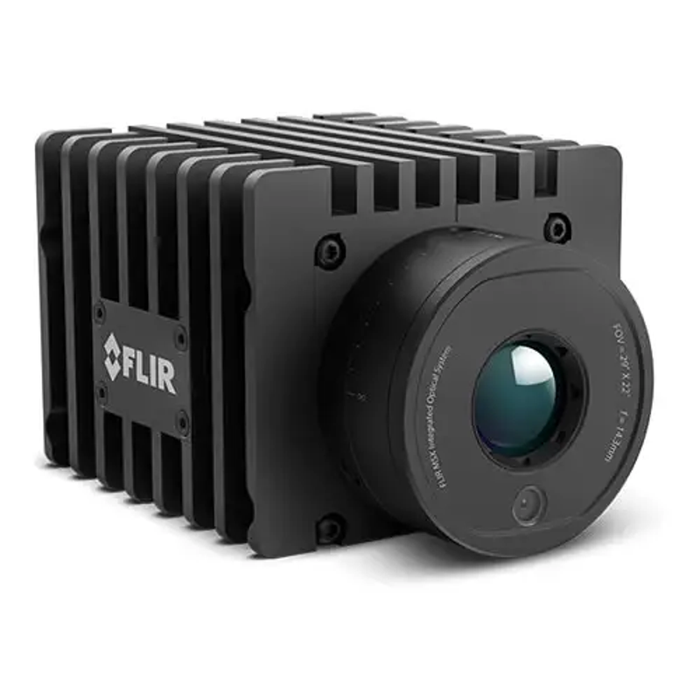

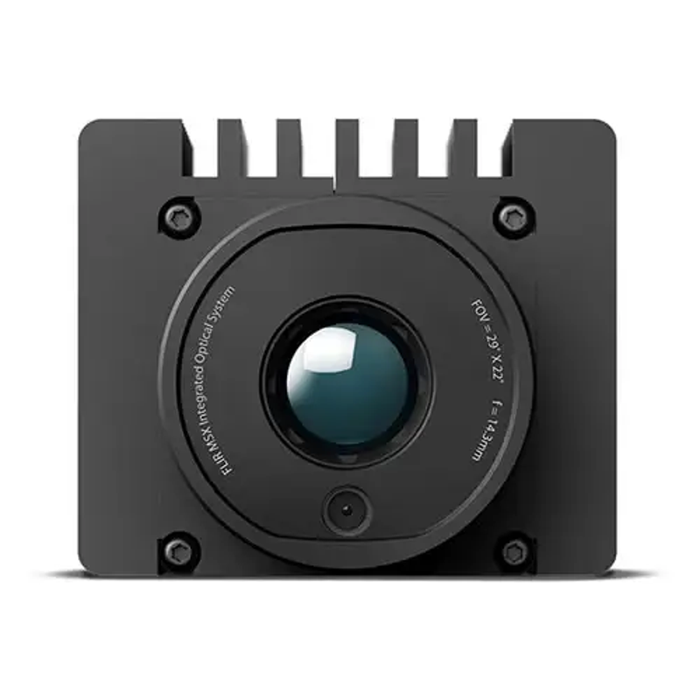

The Teledyne FLIR A70-RD-KIT-95 A70 Image Streaming Camera R&D Kit with 95° Lens is a complete thermal imaging solution tailored for research, proof-of-concept validation, and electronics development. With a high-resolution 640 x 480 thermal imager and fast 30 Hz frame rate, this camera captures thousands of accurate temperature data points to accelerate analysis and minimize guesswork. Designed for professionals who need reliable thermal profiling, it delivers detailed visual and infrared imaging with advanced MSX enhancement for better clarity.
Built-in Wi-Fi and Power over Ethernet support simplify setup and integration. The system includes Teledyne FLIR Research Studio software, enabling powerful thermal data capture, analysis, and sharing across platforms. Its compact form factor, rugged construction, and IP66-rated housing make it ready for tough environments, while non-proprietary interfaces and SDKs support custom development and deployment.

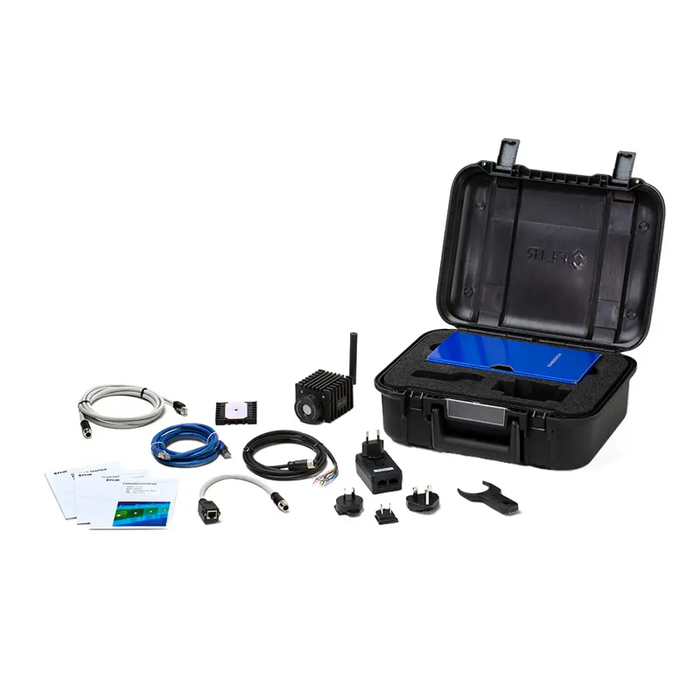

What's Included:
- 1 - A70 Image Streaming Camera with 95° Lens, 640 x 480, 30 Hz
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Features
Fast Thermal Characterization
Quickly identify thermal anomalies to reduce product development cycles and increase reliability.
High-Quality IR and Visible Imaging
Capture clear thermal and visual images with a 640 x 480 detector and integrated visible camera for context.
MSX Image Enhancement
Overlay visual image details onto thermal images for easier interpretation and component differentiation.
Wi-Fi and Ethernet Streaming
Stream full radiometric data using Gigabit Ethernet or Wi-Fi with Power over Ethernet support.
Comprehensive Analysis Tools
Use Teledyne FLIR Research Studio software to view, record, and analyze data in multiple languages and platforms.
Multi-Camera Comparison
Compare thermal data from several connected cameras simultaneously for broader system insight.

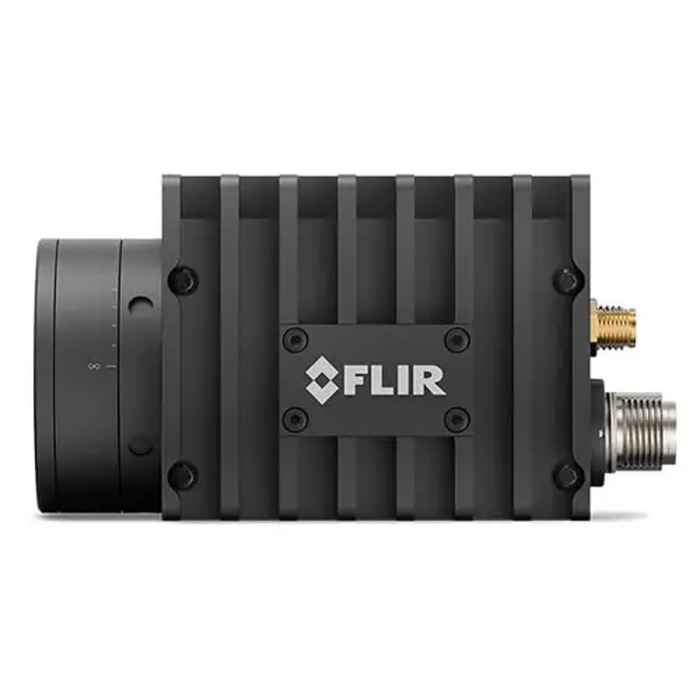

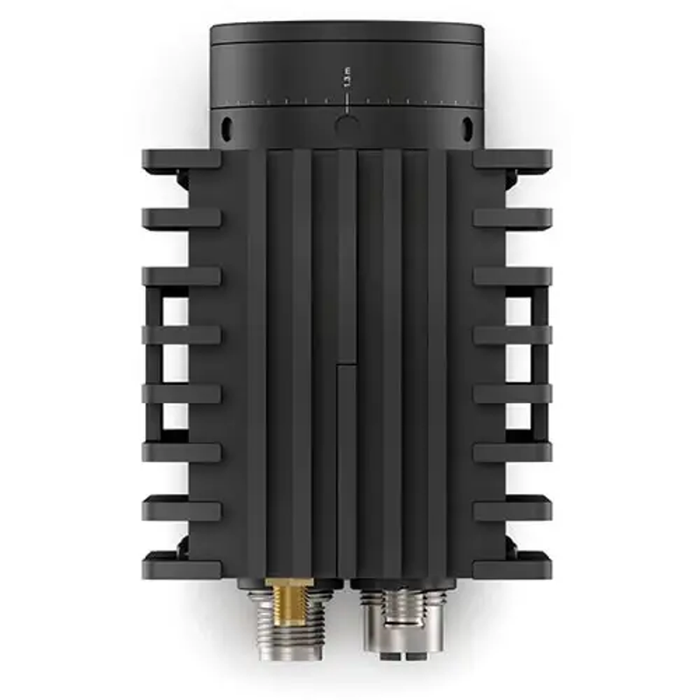

Rugged and Compact Design

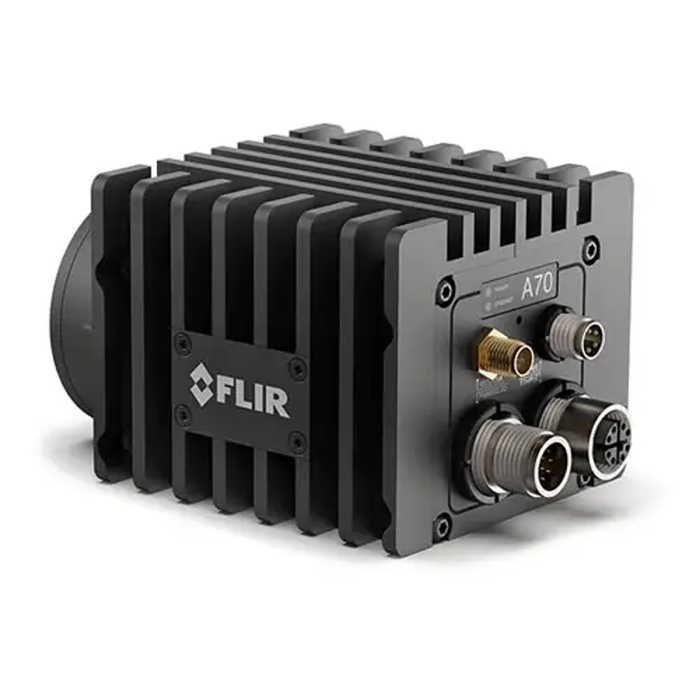

Designed with IP66-rated housing, M-style connectors, and flexible mounting options for harsh environments.
Non-Proprietary Integration
Supports GigE Vision and GenICam protocols for easy software integration and long-term system scalability.
What's Included
Included with Your Purchase:
- 1 - A70 Image Streaming Camera with 95° Lens, 640 x 480, 30 Hz
- 1 - Ethernet Cable M12 to RJ45, 2 m
- 1 - Ethernet Cable M12 to RJ45F, 0.3 m
- 1 - Ethernet Cable CAT6, 2 m/6.6 ft
- 1 - Cable M12 to Pigtail, 2 m
- 1 - Gigabit PoE Injector with Multi-Plugs, 16 W
- 1 - Antenna WLAN 2.4/5 GHz + Wi-Fi
- 1 - Cooling Plate
- 1 - Visual Camera with MSX
- 1 - Focus Adjustment Tool
- 1 - Research Studio - 1 Year Subscription (Online Activation)
- 1 - Hard Carrying Case
- 1 - User Manual
Specifications
-
IR Resolution: 640 x 480
-
Frame Rate: 30 Hz
-
Detector Pitch: 12 µm
-
Focus: Adjustable with included focus tool
-
Thermal Sensitivity (NETD): <60 mK
-
Image Modes: Thermal, visual, MSX, FSX
-
Spectral Range: 7.5 - 14.0 µm
-
Temperature Ranges: -20°C to 175°C; 175°C to 1000°C
-
Accuracy: ±2°C or ±2% of reading
-
Visible Camera: 1280 x 960
-
Connections: Gigabit Ethernet, Wi-Fi
-
Digital I/O: 2 inputs, 3 outputs (opto-isolated)
-
Power Input: 24/48 V DC, 8 W max
-
Power Connection: M12 Male 12-pin A-coded
-
Ethernet Power: PoE IEEE 802.3af class 3
-
Mounting: 1/4-20 UNC and Ø5 mm depth
-
Environmental Rating: IP66
-
Operating Temperature: -20°C to 50°C (with cooling plate)
-
Storage Temperature: -40°C to 70°C
-
Shock: 25 g (IEC 60068-2-27)
-
Vibration: IEC 60068-2-6, 0.15 mm and 2 g
FAQ
Q: What software is included for data analysis?
A: The kit includes Teledyne FLIR Research Studio software with a one-year subscription for recording, analyzing, and sharing thermal data.
Q: Does this camera support wireless operation?
A: Yes, it includes Wi-Fi connectivity and can transmit radiometric data wirelessly for mobile testing.
Q: Can I stream live thermal video?
A: Yes, it supports real-time radiometric streaming over Ethernet and Wi-Fi using industry-standard protocols.
Q: Is this camera suitable for harsh environments?
A: Absolutely, with an IP66 rating and rugged connectors, it's built to perform in challenging conditions.
Q: Are multiple mounting options available?
A: Yes, it includes mounting points compatible with standard camera tripods and equipment mounts.
