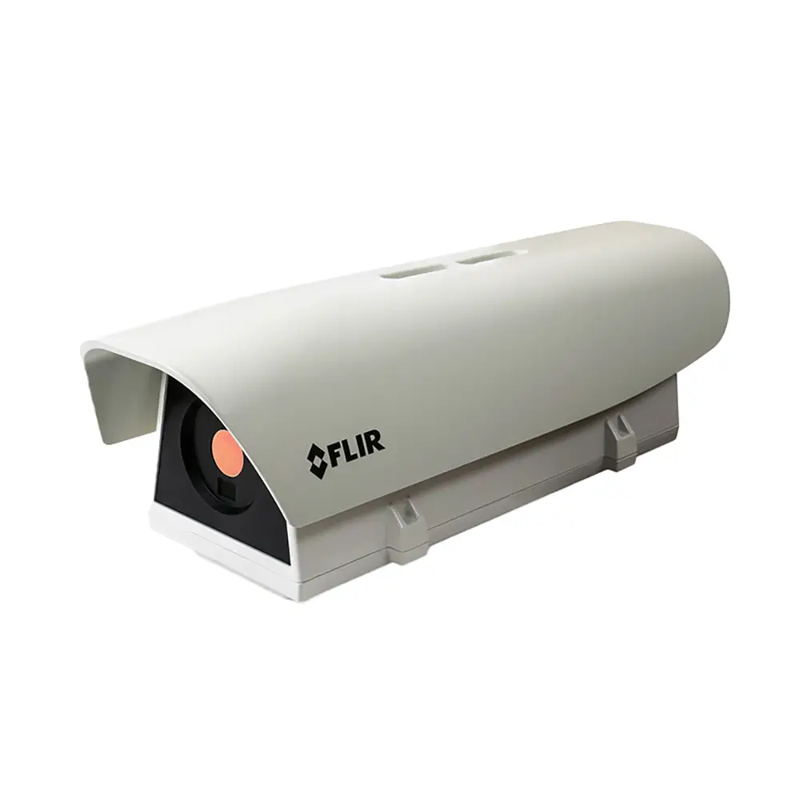

The Teledyne FLIR A700f-ADV-DFOV-42-24 Advanced Smart Sensor Fixed-Mount Thermal Imager offers high-resolution thermal imaging combined with edge analytics, making it a reliable choice for industrial condition monitoring and early fire detection. With robust housing built to endure harsh environments and a wide temperature detection range, this imager delivers precise, actionable thermal data in real-time.
Designed for seamless integration into automation systems, it features dual-streaming capabilities, IIoT protocol support, and a motorized focus for remote control. Its standout FlexView Dual Field of View lens enables users to toggle between a wide 42° view for broader area coverage and a 24° narrow view for enhanced detail and measurement precision—ideal for examining large assets or identifying specific hotspots while maintaining safe working distances.
What's Included:
- 1 - Advanced Smart Sensor Fixed-Mount Thermal Imager (A700f-ADV)
- 1 - FlexView DFOV 42°/24° Lens (T300953)
Features
Industrial Integration Ready
Offers Modbus TCP, Ethernet/IP, MQTT, and REST API protocols for smooth automation and SCADA/HMI integration.
ONVIF-S Compliant
Compatible with standard VMS/NVR systems for remote control and monitoring, including pan/tilt support.
Dual Thermal Streaming
Simultaneously outputs radiometric and video streams for flexible data analysis and recording.
Advanced Image Analytics
Supports polygon, polyline, and line tools to define areas of interest with precision.
Remote Focus Control
Motorized focus adjustable via Ethernet for detailed inspection at various distances.
Flexible Scene Enhancement (FSX)
Enhances edge visibility and contrast in low-temperature-contrast environments.
High-Resolution Thermal Detection
640 x 480 resolution for accurate and consistent results in critical applications.
Wide to Narrow Lens Capability

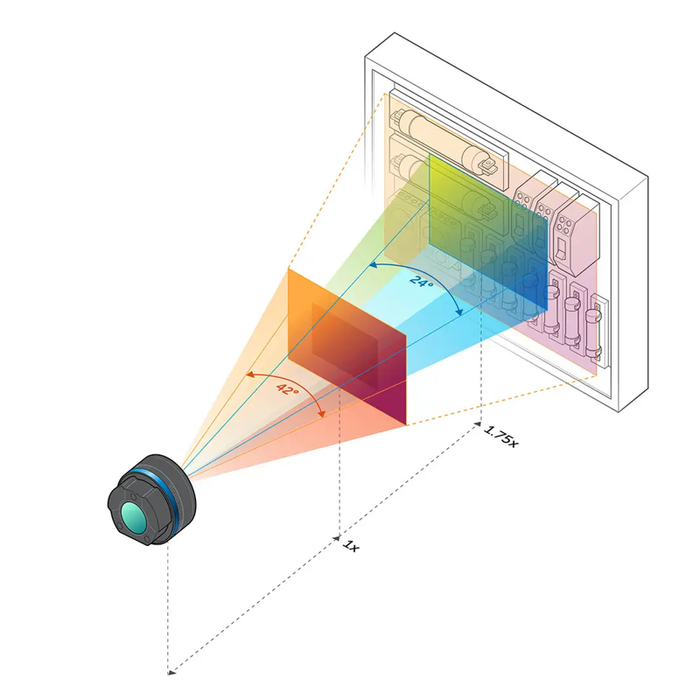

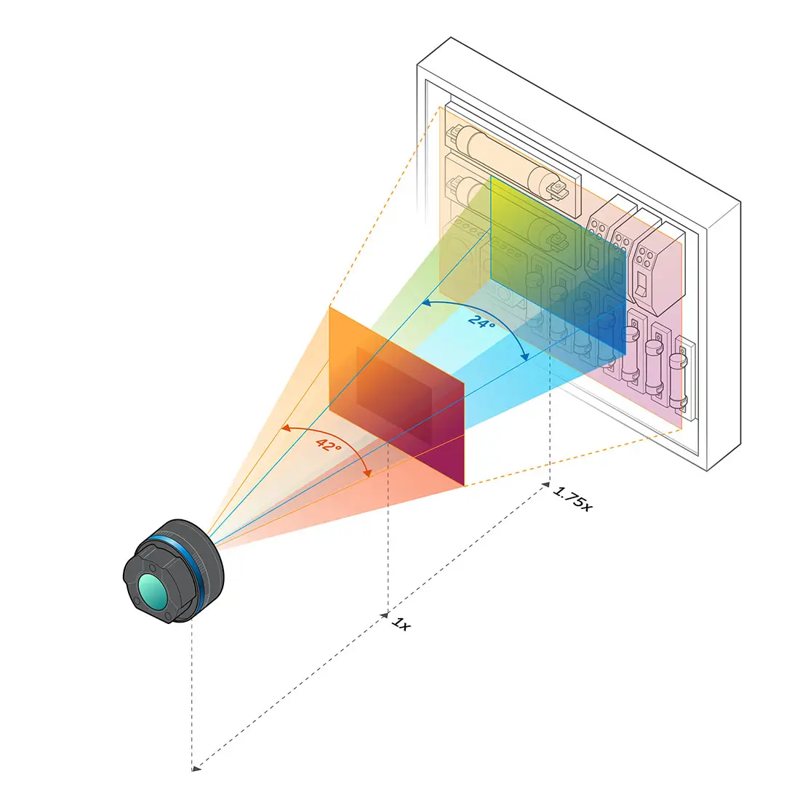

42° FOV enables quick area scanning while 24° FOV delivers sharp, localized detail.
Improved Operator Safety
Switchable lens allows users to inspect dangerous zones from a distance, minimizing risk.

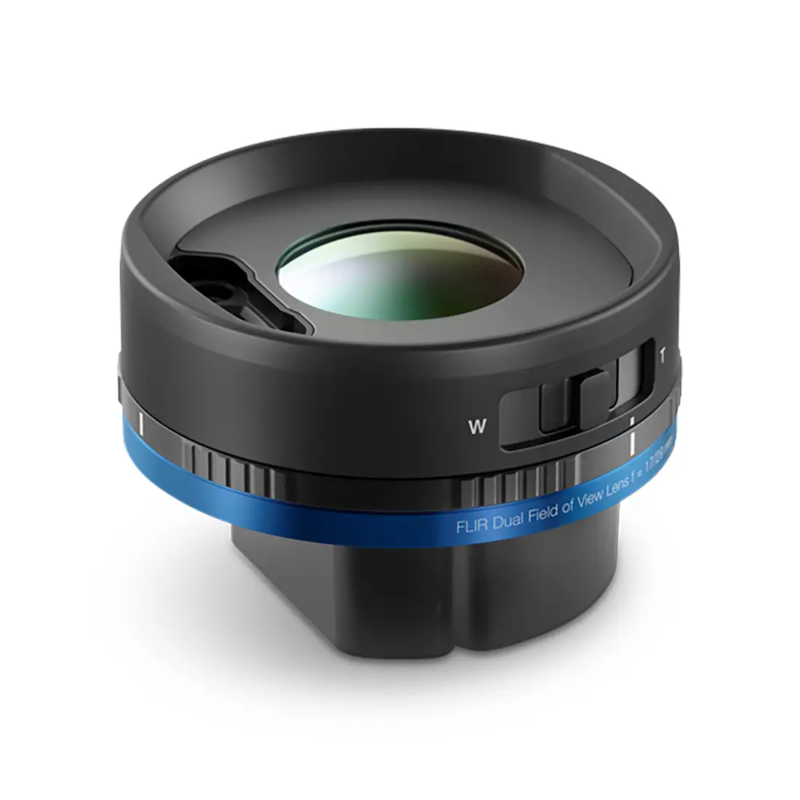

Push/Pull Lens Toggle
Quickly switch between wide and narrow views for operational flexibility without lens removal.
What's Included
Included with Your Purchase:
- 1 - Advanced Smart Sensor Fixed-Mount Thermal Imager (A700f-ADV)
- 1 - FlexView DFOV 42°/24° Lens (T300953)
Specifications
-
IR Resolution: 640 x 480 (307,200 px)
-
Visual Resolution: 1280 x 960
-
Detector Pitch: 12 µm
-
Lens: FlexView DFOV 42°/24°
-
Focus: Motorized focus, manual/on-command automatic
-
Focal Plane Array: Uncooled microbolometer
-
Image Frequency: 30 Hz
-
Image Storage: ~100 FLIR radiometric JPEG
-
Object Temperatures: -4° to 248°F, 32° to 1202°F, 572° to 3632°F
-
Accuracy: ± 3.6°F/± 2% of reading
-
Measurement Tools: 10 spotmeters, 10 boxes/polygons, 3 Deltas, 2 isotherms, 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline
-
Alarm Functions: Triggered by temperature conditions, digital input, or internal temp
-
Alarm Output: EtherNet/IP, Modbus TCP, RESTful API, email, image/video storage
-
Video Encoding: H.264/MPEG4/MJPEG (Video), JPEG-LS (Radiometric)
-
Ethernet Interface: IP67-rated RJ45, PoE IEEE 802.3af, supports multiple protocols
-
Operating Temperature Range: -22°F to 122°F
-
Environmental Protection: IP67
-
EMC Compliance: EN50130-4, EN61000-6-3, EN55022 Class B, FCC Part 15 Class B
FAQ
Q: What temperature range does the A700f-ADV cover?
A: It detects temperatures from -4°F up to 3632°F, divided into multiple configurable ranges.
Q: Can the field of view be changed in real-time?
A: Yes, the FlexView DFOV lens allows users to toggle between 42° and 24° with a simple push/pull mechanism.
Q: Is the imager suitable for harsh environments?
A: Yes, it's housed in an IP67-rated enclosure and operates in temperatures from -22°F to 122°F.
Q: How is the imager integrated into existing networks?
A: It supports IIoT protocols like MQTT and REST API, plus Modbus TCP and Ethernet/IP for industrial automation.
