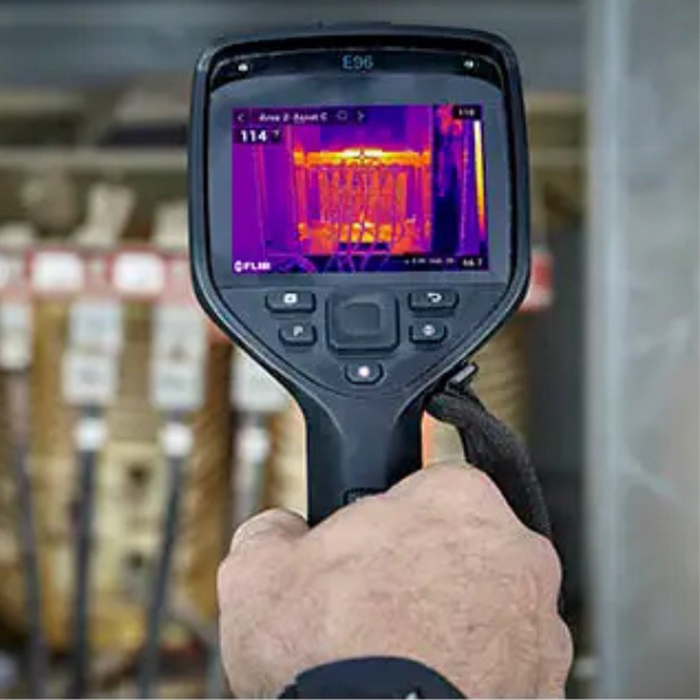

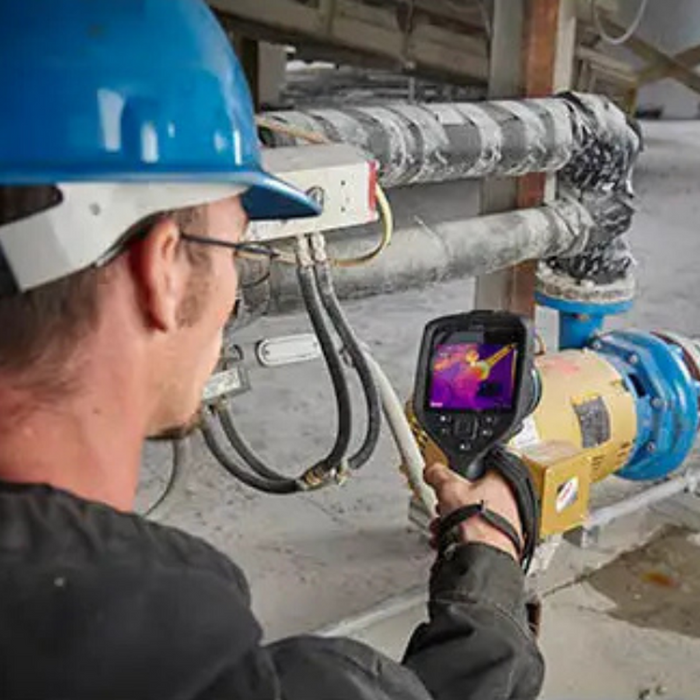

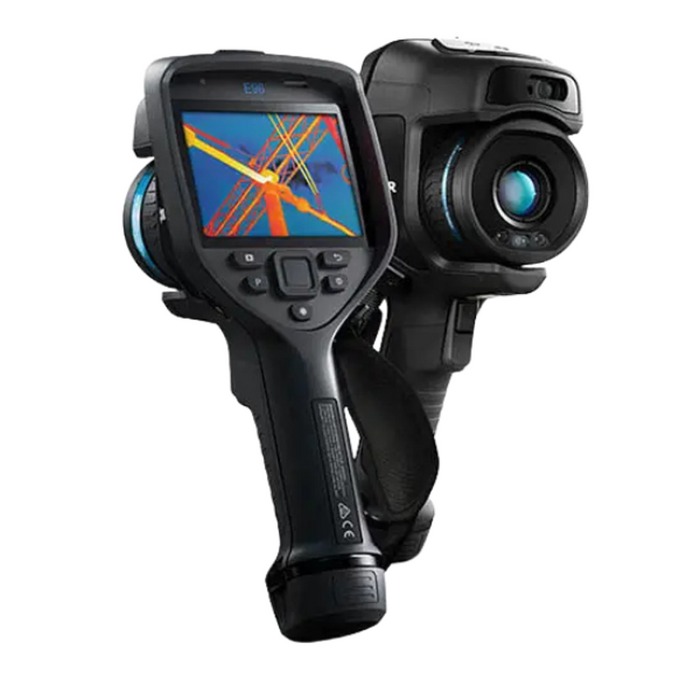

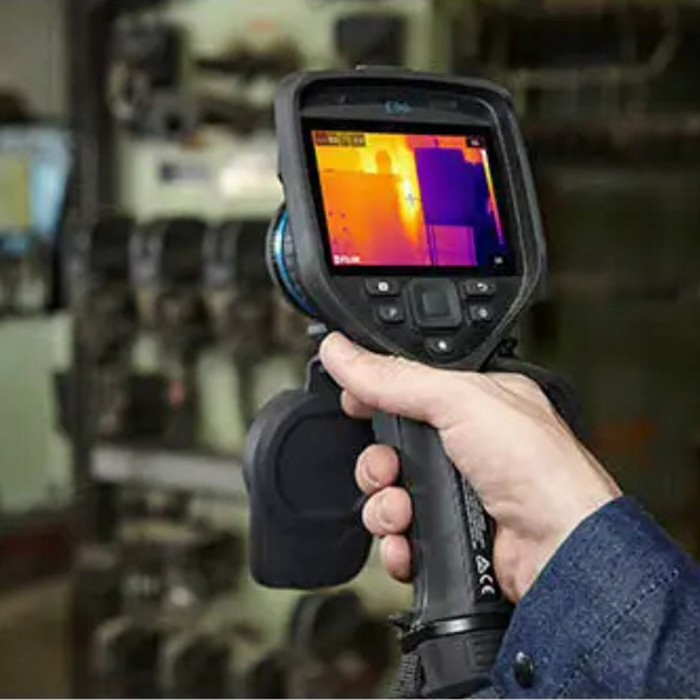

The Teledyne FLIR E96-24-42-NIST Advanced Thermal Imaging Camera combines superior thermal resolution, advanced analytics, and professional software tools to offer a powerful solution for electrical, mechanical, and building inspections. With a high-resolution 640 x 480 thermal sensor, this pistol-grip camera allows for precise temperature measurements and safe inspections from a distance. Enhanced with MSX and UltraMax technologies, the E96 delivers sharp, detailed thermal imagery, improving interpretation and accuracy in every shot.

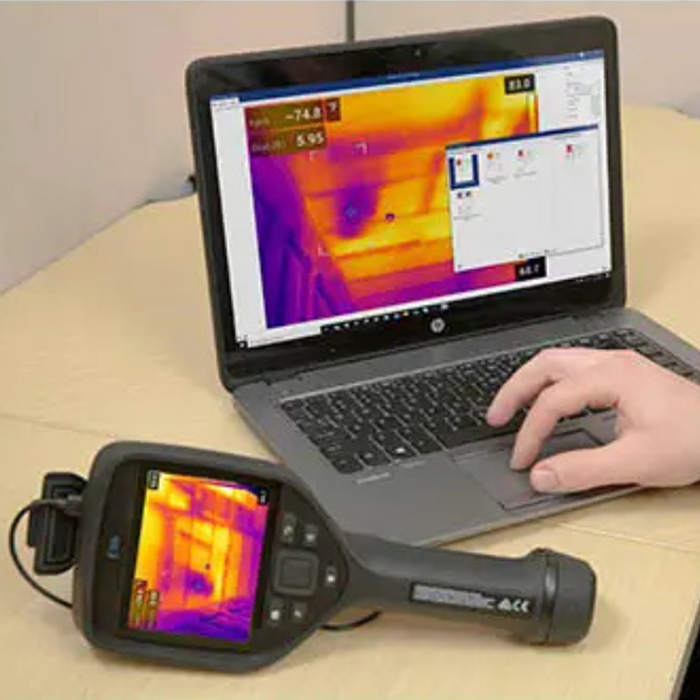

Equipped with two AutoCal interchangeable lenses—a 24° standard and a 42° wide-angle—the E96 offers the flexibility to capture both detailed close-ups and wide-area scans. Built-in features like a laser distance meter, onboard voice annotation, and FLIR Inspection Route integration make it easy to collect structured data and generate comprehensive reports. The included Thermal Studio Pro software streamlines post-inspection analysis and documentation.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° (17 mm) Standard Lens
- 42° (10 mm) Wide-Angle Lens
- NIST Calibration Certificate
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 to USB Type-C Cable
- Carrying Case
- User Documentation
Features
High Thermal Resolution
640 x 480 resolution with UltraMax enhancement delivers four times the thermal pixels for clearer, more detailed images.
MSX Image Enhancement
MSX overlays visual image outlines onto thermal images for better context and easier interpretation.
Dual AutoCal Lenses
Includes both 24° and 42° lenses, automatically calibrated for optimal image quality without additional setup.
Laser Distance Meter
Ensures precise focus and measurement by calculating the exact distance to the target.
Inspection Route Enabled
Preloaded FLIR Inspection Route guides users through planned inspections and organizes captured data.
4" Touchscreen LCD
High-resolution, auto-rotating display provides vibrant, easy-to-navigate image viewing.
Voice and Text Annotation
Adds context to still images and videos using built-in mic or Bluetooth input.
Flexible Video and Image Formats
Supports radiometric and non-radiometric IR video, JPEG with embedded temperature data, and Picture-in-Picture imaging.
Durable and Weather-Resistant
Rated IP54 and tested against shock and vibration for reliable use in harsh environments.
Advanced Measurement Modes
Features multiple spot meters, hot/cold spot tracking, and customizable measurement presets.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° (17 mm) Standard Lens
- 42° (10 mm) Wide-Angle Lens
- NIST Calibration Certificate
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 to USB Type-C Cable
- Carrying Case
- User Documentation
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity (NETD): <40 mK at 30°C (86°F)
-
Display: 4" LCD touchscreen, 640 x 480 pixels, auto-rotating
-
Lenses Included: 24° (17 mm) and 42° (10 mm)
-
Lens Identification: Automatic with AutoCal
-
Minimum Focus Distance: 0.15 m
-
Focus Modes: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Zoom: 1-8x continuous digital
-
Video Output: DisplayPort over USB Type-C
-
Radiometric Video Recording: .csq format, real-time
-
Non-Radiometric IR Video: H.264 to memory card
-
Non-Radiometric Streaming: H.264/MPEG-4 over Wi-Fi, MJPEG over UVC/Wi-Fi
-
Image Formats: JPEG with temperature data, infrared-only mode
-
Storage Media: Removable SD card
-
Battery Type: Rechargeable Li-ion
-
Battery Operating Time: >2.5 hours at 25°C (68°F)
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
METERLiNK: Yes
-
Voice Annotation: 60 sec. per image via built-in mic or Bluetooth
-
GPS: Automatic image tagging
-
Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Presets
-
Object Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Shock/Vibration Rating: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Ingress Protection: IP54 (IEC 60529)
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Spectral Range: 7.5-14 µm
-
Image Storage Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
FAQ
Q: What makes the E96 suitable for both close and wide-area inspections?
A: It includes both a 24° standard lens for focused targets and a 42° wide-angle lens for broader field coverage.
Q: How does UltraMax enhance thermal images?
A: UltraMax captures multiple images and combines them to quadruple pixel count, improving clarity and accuracy.
Q: Is the E96 ready for use with structured inspection workflows?
A: Yes, it supports FLIR Inspection Route with predefined inspection points and automated data organization.
Q: Can I annotate images in the field?
A: Yes, you can add voice notes using the built-in mic or a Bluetooth device, and enter text annotations via the touchscreen.
Q: How are images stored and exported?
A: Images are saved to a removable SD card in radiometric JPEG format, and videos can be exported via USB or Wi-Fi.
