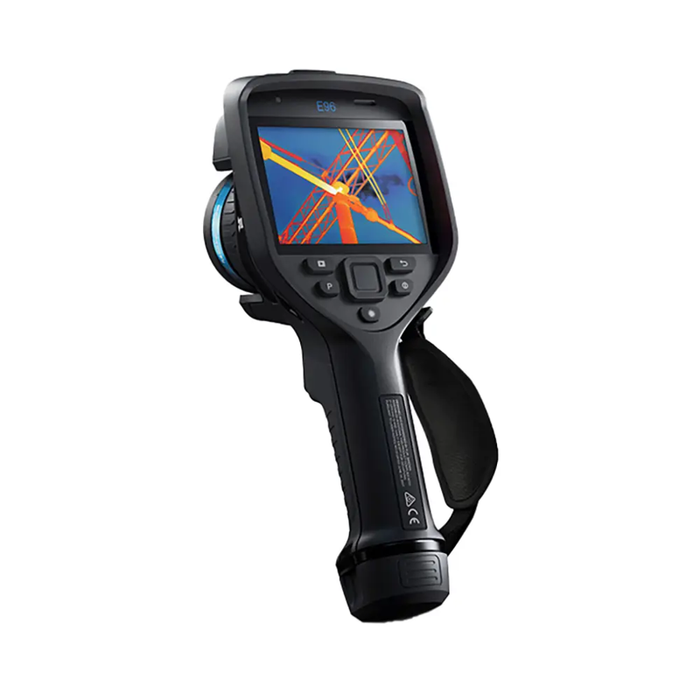

The Teledyne FLIR E96-42-14-NIST Advanced Thermal Imaging Camera is engineered for professionals who need accurate, high-resolution thermal analysis in a handheld format. Featuring 640 x 480 thermal resolution and enhanced by UltraMax® and MSX® imaging technologies, the E96 delivers crisp, detailed infrared visuals that make it easier to identify issues even at a distance.
This model includes both 42° and 14° interchangeable AutoCal™ lenses for flexible imaging — from wide-area building inspections to precise distant target diagnostics. Its built-in laser distance meter ensures sharp focus for accurate temperature readings. The E96 also supports Teledyne FLIR’s Thermal Studio Pro software with the Inspection Route plugin, enabling efficient planning, data collection, and reporting for large-scale inspections.

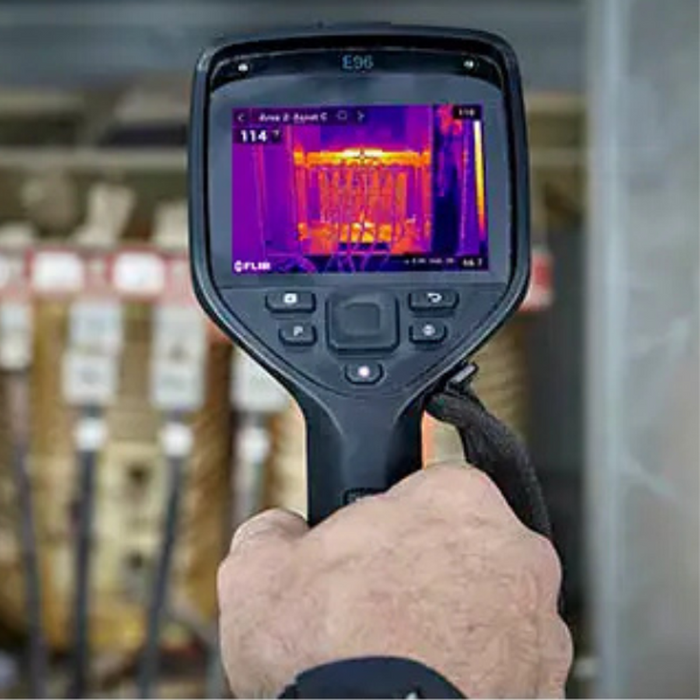

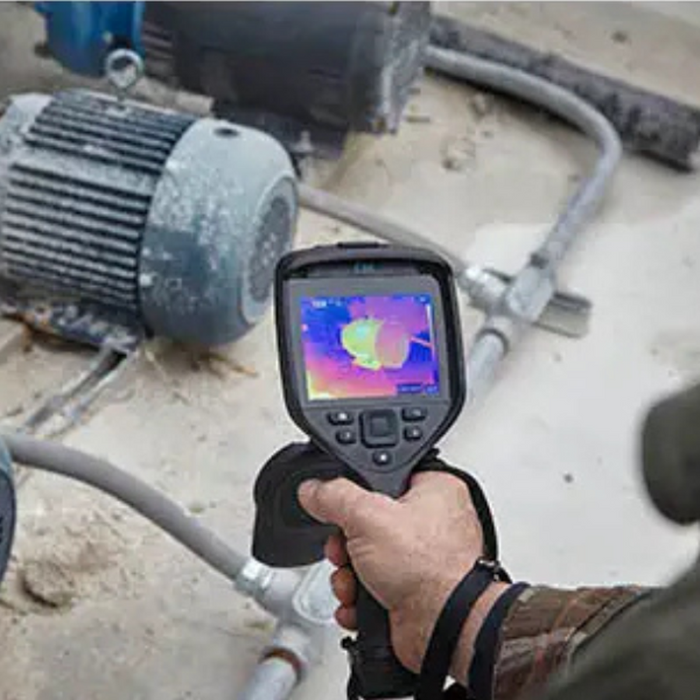

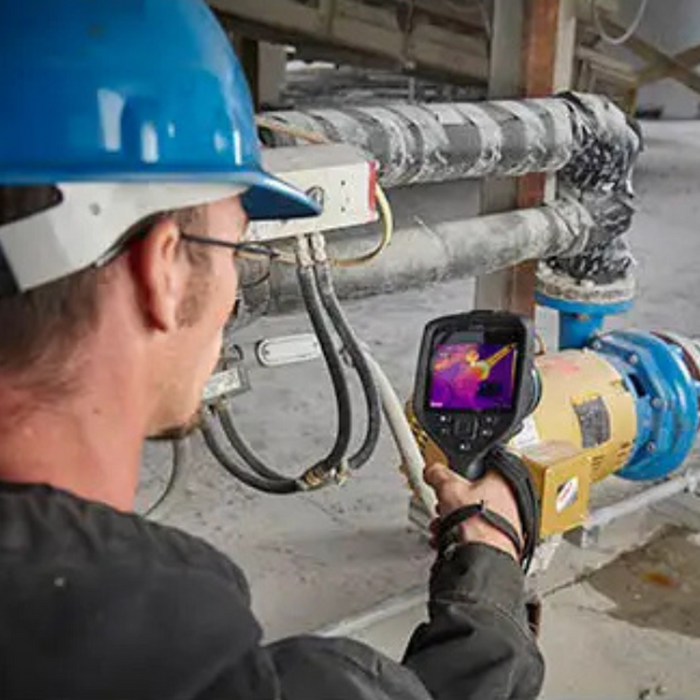

The E96 is well-suited for a range of applications including electrical distribution systems, mechanical components, and building diagnostics. With its voice annotation, onboard routing, and advanced measurement tools, this rugged camera helps streamline workflow and improve field productivity.
What's Included:
- Teledyne FLIR E96 Thermal Camera
- 42° Wide-Angle Lens
- 14° Telephoto Lens
- Teledyne FLIR Thermal Studio Pro Software License
- NIST Calibration Certificate
- Removable SD Storage Card
- Rechargeable Li-ion Battery
- USB 2.0A-to-USB Type-C Communication Cable
Features
High-Resolution Imaging
640 x 480 thermal resolution provides clear, detailed visuals for accurate diagnostics, enhanced by UltraMax® and MSX® technologies.

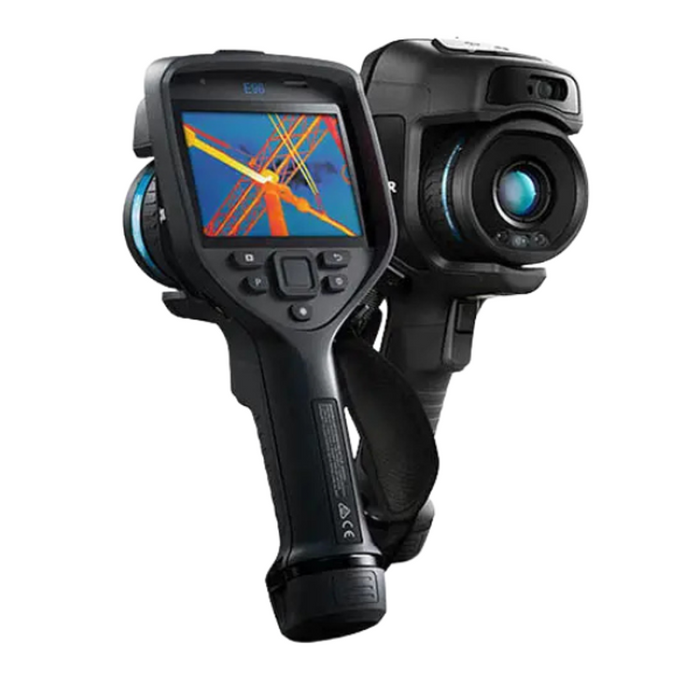

Interchangeable Lenses
Includes both 42° wide-angle and 14° telephoto AutoCal™ lenses for optimal versatility across inspection scenarios.
Laser Distance Meter
Ensures precise focus and accurate temperature measurement, even from a distance.
Built-In Inspection Tools
Includes FLIR Inspection Route support and on-screen area measurements for structured data collection and analysis.
Voice and Text Annotation
Capture 60-second voice notes or add text using a predefined list or touchscreen keyboard for organized reporting.
Rugged Design
IP54-rated housing and shock resistance for tough environments; operates from -15°C to 50°C.
Flexible Image Output
Supports radiometric and non-radiometric IR video recording and streaming in multiple formats.

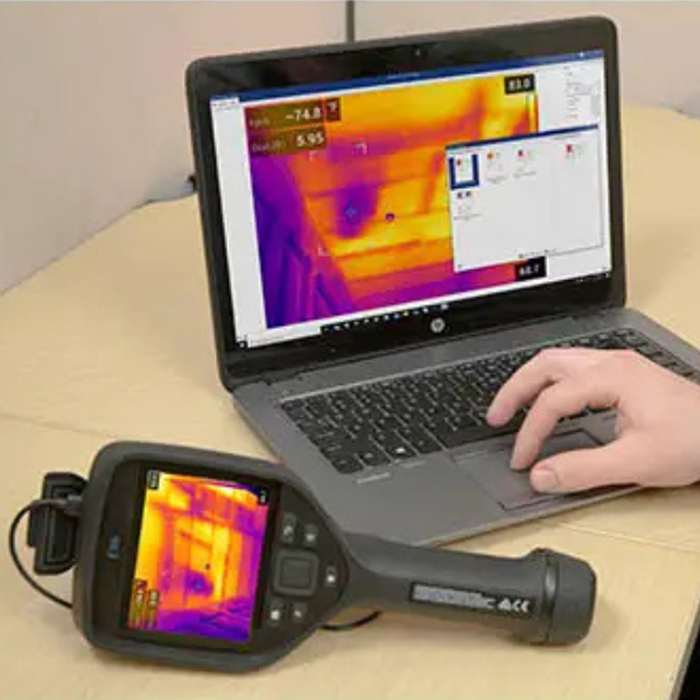

Powerful Software Suite
Includes access to Thermal Studio Pro with Inspection Route Creator for planning and automating inspections.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Camera
- 42° Wide-Angle Lens
- 14° Telephoto Lens
- Teledyne FLIR Thermal Studio Pro Software License
- NIST Calibration Certificate
- Removable SD Storage Card
- Rechargeable Li-ion Battery
- USB 2.0A-to-USB Type-C Communication Cable
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Image Frequency: 30 Hz
-
Display: 4 in. LCD, 640 x 480 pixels, touchscreen with auto-rotation
-
Zoom: 1–8x continuous digital
-
Lens Field of View: 42° (10 mm), 14° (29 mm)
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Thermal Sensitivity: <40 mK at 30°C
-
Spectral Range: 7.5–14 µm
-
Detector Type: Uncooled microbolometer, 12 µm
-
Minimum Focus Distance: 0.15 m
-
Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
-
Accuracy: ±2°C or ±2% of reading
-
Battery Life: Over 2.5 hours at 25°C under typical use
-
Storage Temperature: -40 to 70°C
-
Operating Temperature: -15 to 50°C
-
Shock and Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Encapsulation: IP54 (IEC 60529)
-
Video Out: DisplayPort over USB Type-C
-
Communication: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
-
Storage Media: Removable SD card
-
Voice Annotation: Up to 60 seconds via built-in mic or Bluetooth
-
GPS: Automatic image tagging
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Image Formats: JPEG with measurement data
-
Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Presets
-
Video Formats: H.264, MPEG-4, MJPEG (radiometric and non-radiometric)
-
Laser Pointer: Yes
-
MeterLink: Yes
-
Programmable Buttons: 1
-
Inspection Route: Enabled
FAQ
Q: What lenses are included with the Teledyne FLIR E96?
A: The E96 comes with both a 42° wide-angle lens and a 14° telephoto lens.
Q: Does this camera support software for organizing inspections?
A: Yes, it includes Teledyne FLIR Thermal Studio Pro with the Inspection Route plugin.
Q: Can this unit record and stream thermal video?
A: Yes, it supports both radiometric and non-radiometric video recording and streaming.
Q: How is the focus controlled on the E96?
A: Focus is managed via Continuous LDM, One-shot LDM, One-shot contrast, or manually.
Q: What kind of annotations can I add to images?
A: You can add voice notes (up to 60 seconds), text labels, and image sketches directly on the camera.
