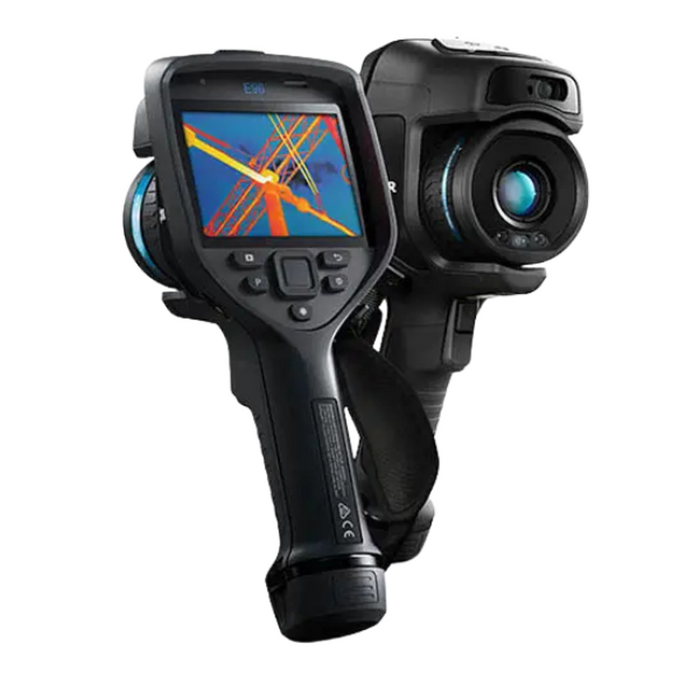

The Teledyne FLIR E96-24-14-42-NIST is a high-performance thermal imaging camera designed for professionals who demand exceptional detail and versatility in their inspections. Featuring a crisp 640 x 480 thermal resolution and enhanced with FLIR’s exclusive UltraMax® and MSX® technologies, the E96 delivers vibrant, detailed infrared imagery that allows users to detect and diagnose problems with precision.
Equipped with three AutoCal™ interchangeable lenses (24°, 14°, and 42°), the E96 provides unmatched flexibility, making it suitable for a wide range of applications—from distant electrical inspections to broad building surveys. The built-in laser distance meter ensures accurate focusing, while the integrated FLIR Inspection Route feature helps users conduct structured inspections more efficiently.

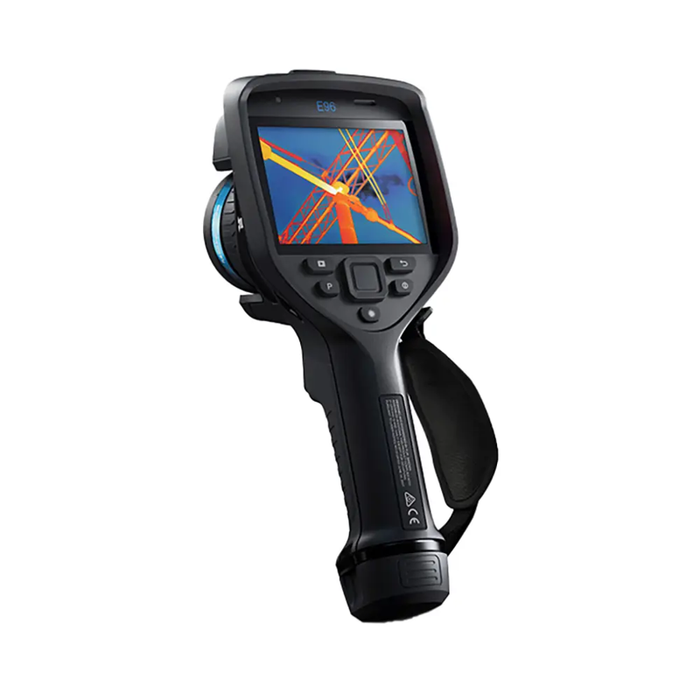

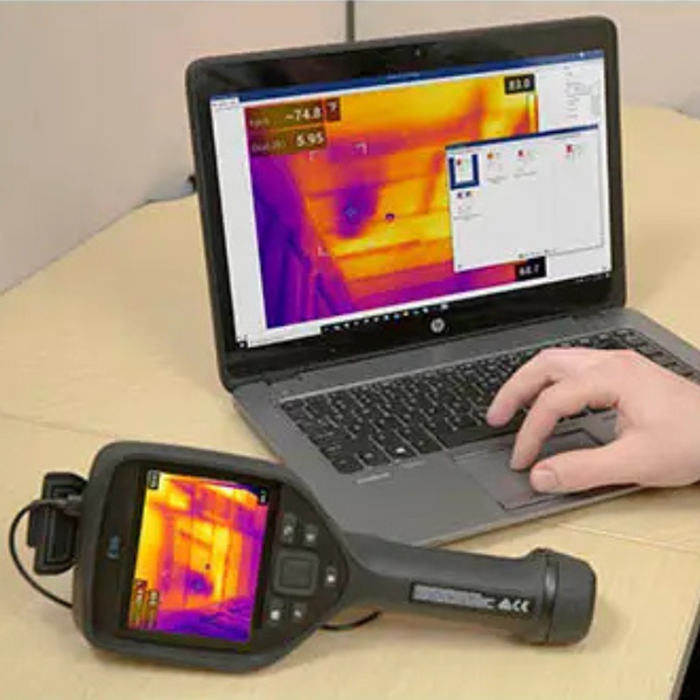

Designed with field usability in mind, the E96 features a large 4" touchscreen LCD, intuitive menu navigation, programmable buttons, and comprehensive image capture options including radiometric video and picture-in-picture. Paired with Teledyne FLIR Thermal Studio Pro software, users can easily analyze, organize, and report inspection results with speed and clarity.
What’s Included:
- Teledyne FLIR E96 Thermal Camera
- 24° Lens
- 14° Lens
- 42° Lens
- NIST Calibration Certificate
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Battery Charger
- Hard Carrying Case
- USB 2.0 and Type-C Cable
- SD Card
Features
Advanced Thermal Resolution
640 x 480 thermal resolution delivers highly detailed images for precise diagnostics and reporting.
UltraMax and MSX Technology
UltraMax enhances pixel density by 4x, while MSX overlays visual detail on infrared images for increased clarity.
Three Interchangeable AutoCal Lenses
Includes 24°, 14°, and 42° lenses for wide, standard, and telephoto views—easily auto-calibrated by the camera.
Laser-Assisted Autofocus
Built-in laser distance meter ensures sharp focus for accurate temperature readings.
Efficient Inspection Workflow
Preloaded FLIR Inspection Route allows structured inspections, reducing time and increasing data organization.
Durable, Field-Ready Design
Built to withstand tough environments with IP54 rating, shock resistance, and a wide operating temperature range.
Enhanced Communication Interfaces
Supports USB 2.0, Bluetooth, Wi-Fi, and DisplayPort for seamless data transfer and streaming.
Rich Imaging Capabilities
Radiometric video recording and streaming, picture-in-picture, digital zoom, and customizable color palettes for professional-grade results.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Camera
- 24° Lens
- 14° Lens
- 42° Lens
- NIST Calibration Certificate
- FLIR Thermal Studio Pro Software
- Rechargeable Li-ion Battery
- Battery Charger
- Hard Carrying Case
- USB 2.0 and Type-C Cable
- SD Card
Specifications
-
IR Resolution: 640 x 480 pixels
-
Thermal Sensitivity/NETD: <40 mK at 30°C
-
Image Frequency: 30 Hz
-
Lens Options: 24°, 14°, 42° AutoCal Lenses
-
Digital Zoom: 1–8x continuous
-
Display: 4 in. LCD touchscreen, 640 x 480 pixels
-
Laser Distance Meter: Yes
-
Focus: Manual, One-shot LDM, One-shot contrast, Continuous LDM
-
Storage Media: Removable SD card
-
Image File Format: JPEG with radiometric data
-
Non-Radiometric Video: H.264 to memory card
-
Radiometric IR Video: Real-time recording (.csq), streaming via UVC
-
Spectral Range: 7.5–14 µm
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
GPS: Automatic image tagging
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Text Input: Predefined list or touchscreen keyboard
-
Voice Annotation: Up to 60 sec via built-in mic or Bluetooth
-
Video Output: DisplayPort over USB Type-C
-
Shock and Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Encapsulation Rating: IP54 (IEC 60529)
-
Operating Temperature Range: -15 to 50°C (5 to 122°F)
-
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
-
Battery Type: Rechargeable Li-ion
-
Battery Life: Over 2.5 hours at 25°C (typical use)
-
Measurement Accuracy: ±2°C or ±2% of reading
-
Object Temperature Ranges: -20 to 120°C; 0 to 650°C; 300 to 1500°C
-
Spot Meters: 3 in live mode
-
Area Measurement: Yes
-
Minimum Focus Distance: 0.15 m
-
MSX: Yes
-
UltraMax: Yes
-
Image Storage Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
FAQ
Q: What makes the E96 different from other FLIR models?
A: It’s the first pistol-grip FLIR camera to offer 640 x 480 resolution along with UltraMax and MSX for enhanced clarity.
Q: What lenses are included with the E96-24-14-42-NIST bundle?
A: The bundle includes three AutoCal lenses: 24°, 14°, and 42°.
Q: Does the E96 support radiometric video recording?
A: Yes, it supports real-time radiometric video recording in .csq format and radiometric streaming over UVC.
Q: Can I perform voice annotations with this camera?
A: Yes, the E96 allows 60-second voice recordings via built-in mic or Bluetooth connection.
Q: Is the camera rugged enough for field use?
A: Yes, the E96 has an IP54 rating and is tested to handle shock, vibration, and a wide temperature range.
