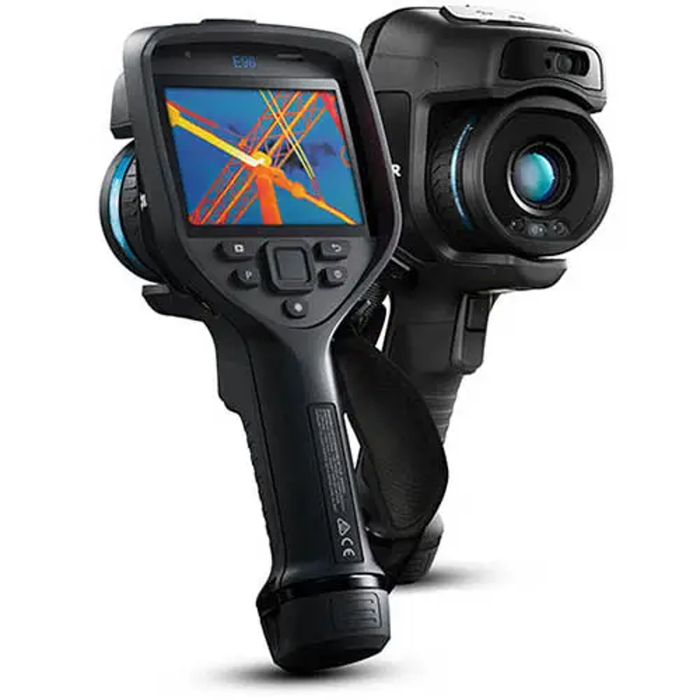

The Teledyne FLIR E96-24-14-42 Advanced Thermal Imaging Camera is the first pistol-grip model from FLIR to feature a powerful 640 x 480 thermal resolution, designed for professionals inspecting high-voltage or hazardous environments. Equipped with AutoCal interchangeable lenses and laser-assisted focus, it ensures crisp imaging across a range of distances, while MSX and UltraMax technologies enhance detail and accuracy.

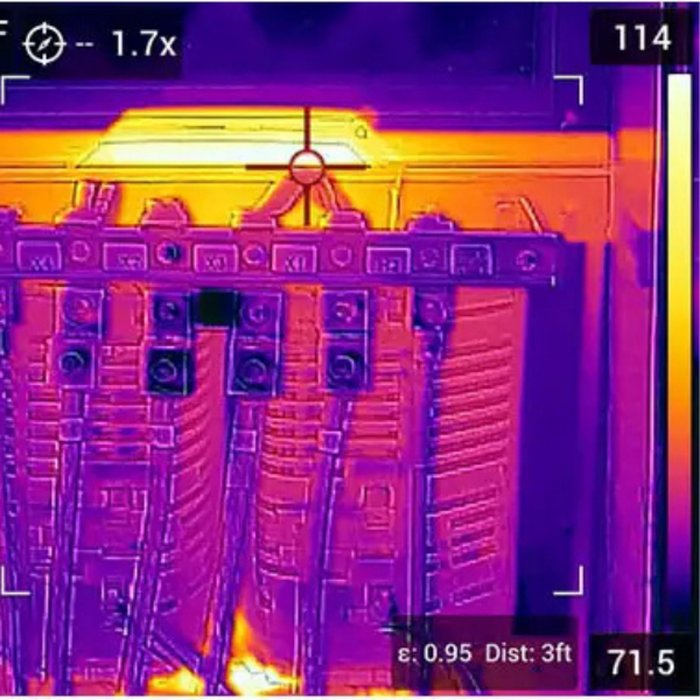

Ideal for both electrical and building inspections, the E96 supports area measurement and enables precise diagnostics of hotspots, moisture intrusion, and structural issues. With an intuitive 4-inch touchscreen, voice and image annotations, and seamless integration with FLIR Thermal Studio Pro software, it streamlines your workflow from inspection to reporting.
The system includes Teledyne FLIR’s proprietary software plugins for Inspection Route planning, which guide inspectors through complex routes efficiently. Combined with durable construction and high-end imaging features, the E96 is built for heavy-duty field use.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° x 18° lens (17 mm)
- 14° x 10° telephoto lens (29 mm)
- 42° x 32° wide-angle lens (10 mm)
- Rechargeable Li-ion battery
- Removable SD card
- Built-in mic and speaker
- FLIR Thermal Studio Pro software
Features
Advanced 640 x 480 Thermal Resolution
Provides superior clarity for detecting fine thermal differences and ensuring reliable diagnostics.
MSX and UltraMax Image Enhancement
Combines edge detail from visual imagery with thermal images for better clarity and quadrupled thermal pixel density.
AutoCal Interchangeable Lenses
Automatic lens recognition and calibration for flexibility and consistent image quality without service interruptions.
Laser-Assisted Focus
Laser distance meter ensures crisp and accurate focusing across variable distances.
On-Camera Inspection Routing
Follow predefined inspection routes with automatic image tagging and structured data capture.
Versatile Lens Selection
Switch between 24°, 14°, and 42° lenses to cover near, far, and wide-field imaging with precision.
Robust Voice and Text Annotations
Add up to 60 seconds of voice notes or use predefined text or keyboard inputs to document findings.
Efficient Data Sharing
Includes Wi-Fi, Bluetooth, USB, and DisplayPort for seamless communication and video streaming.
Durable and Rugged
Engineered to handle tough environments with IP54 protection and compliance with shock/vibration standards.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° x 18° lens (17 mm)
- 14° x 10° telephoto lens (29 mm)
- 42° x 32° wide-angle lens (10 mm)
- Rechargeable Li-ion battery
- Removable SD card
- Built-in mic and speaker
- FLIR Thermal Studio Pro software
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Image Frequency: 30 Hz
-
Lens Options: 24°, 14°, 42° (included)
-
Digital Camera: 5 MP with LED photo/video lamp
-
Digital Zoom: 1-8x continuous
-
Display: 4 in. LCD, 640 x 480 pixels
-
Focus Modes: Continuous LDM, One-shot LDM, Contrast, Manual
-
Laser Distance Meter: Yes
-
Storage: Removable SD card
-
Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Video Output: DisplayPort over USB Type-C
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
Encapsulation: IP54
-
Shock/Vibration: 25g/2g (IEC standards)
-
Spectral Range: 7.5 - 14 µm
-
Thermal Sensitivity (NETD): <40 mK at 30°C
-
Battery Life: Over 2.5 hours typical use
-
Image File Format: JPEG with measurement data
-
Measurement Range: -20 to 1500°C across 3 ranges
-
Accuracy: ±2°C or ±2%
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
FAQ
Q: What is the maximum temperature range the E96 can measure?
A: The E96 can measure temperatures from -20°C to 1500°C across three defined ranges.
Q: Are all three lenses included with the camera?
A: Yes, the 24°, 14°, and 42° lenses are all included.
Q: Does the camera include FLIR’s Thermal Studio software?
A: Yes, FLIR Thermal Studio Pro is included for advanced analysis and reporting.
Q: Can I annotate images in the field?
A: Yes, you can record 60-second voice notes or use text annotations directly on the camera.
