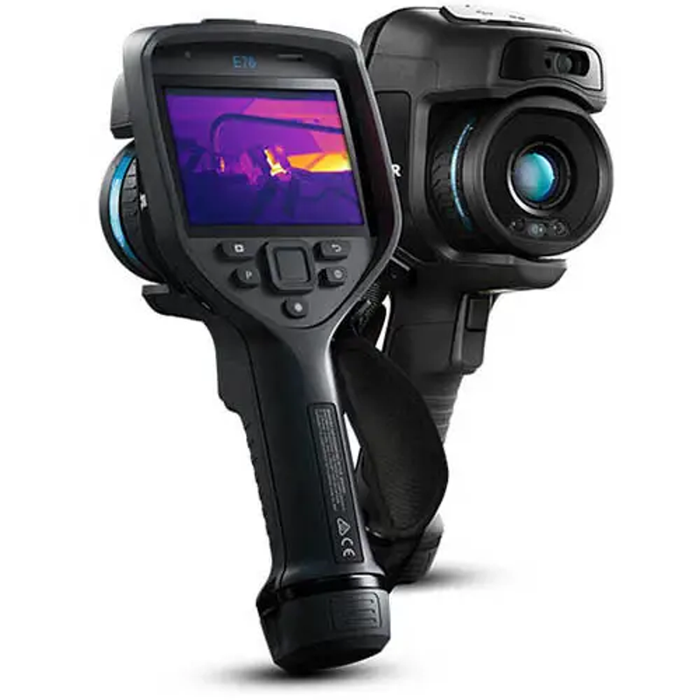

The Teledyne FLIR E86-14 Advanced Thermal Imaging Camera delivers high-resolution thermal imaging combined with MSX and UltraMax technologies for unparalleled clarity and precision. With its 464 x 348 pixel detector and 30 Hz refresh rate, the E86-14 is engineered for inspecting electrical, mechanical, and building systems, identifying issues before they lead to costly failures.
Equipped with a 14° telephoto lens and advanced laser-assisted autofocus, it captures distant targets in sharp detail. The onboard FLIR Thermal Studio Pro software and Inspection Route features streamline data collection and reporting. MSX technology overlays visual image details onto thermal images for improved image context, while UltraMax enhances image resolution and measurement accuracy. With rugged design, interchangeable AutoCal lenses, and powerful connectivity, this camera is a robust solution for professional thermographers in demanding environments.
What's Included:
- FLIR E86 Thermal Camera with 14° Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- USB Cable
- Power Supply/Charger
- Hard Transport Case
- FLIR Thermal Studio Pro Software License
- Lens Cap and Cleaning Cloth
- User Manual
Features
High-Resolution Imaging
Features a 464 x 348 uncooled microbolometer sensor with <40 mK sensitivity for detailed thermal inspection.
UltraMax Technology
Captures multiple images and combines them to deliver four times the pixel data for improved clarity and precise analysis.
MSX Image Enhancement
Enhances thermal images with visible light details for sharper images that make it easier to identify targets.
14° Telephoto Lens
Narrow field of view enables precise focus on distant targets with superior thermal detail.
Laser-Assisted Autofocus
Built-in laser distance meter ensures quick, accurate focus and provides data for on-screen measurements.
Interchangeable AutoCal Lenses
Supports a variety of field-swappable lenses with automatic calibration for versatility across inspections.
Rugged Touchscreen Display
Equipped with a 4-inch, 640 x 480 LCD that auto-rotates for easy viewing in all orientations.
Comprehensive Communication Interfaces
Includes USB 2.0, Bluetooth, Wi-Fi, and DisplayPort over USB Type-C for easy data transfer and streaming.
Advanced Image and Video Recording
Supports radiometric video recording, real-time streaming, and picture-in-picture modes.
GPS and Voice Annotation
Features onboard GPS for image tagging and built-in microphone for voice notes on images or videos.
Teledyne FLIR Inspection Route
Guides users through pre-defined inspection routes for efficient data capture and reporting.
What's Included
Included with Your Purchase:
- FLIR E86 Thermal Camera with 14° Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- USB Cable
- Power Supply/Charger
- Hard Transport Case
- FLIR Thermal Studio Pro Software License
- Lens Cap and Cleaning Cloth
- User Manual
Specifications
-
IR Resolution: 464 x 348 pixels
-
Image Frequency: 30 Hz
-
Spectral Range: 7.5 - 14 µm
-
Thermal Sensitivity (NETD): <40 mK at 30°C
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Lens: 14°, 29 mm with AutoCal
-
Minimum Focus Distance: 0.15 m
-
Digital Zoom: 1-4x continuous
-
Digital Camera: 5 MP with LED lamp
-
Display: 4 in. LCD, 640 x 480 pixels
-
Storage Media: Removable SD card
-
Video Out: DisplayPort via USB-C
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Battery Operating Time: Over 2.5 hours
-
Battery Type: Rechargeable Li-ion
-
Operating Temperature Range: -15 to 50°C
-
Storage Temperature Range: -40 to 70°C
-
Protection: IP54, shock 25g, vibration 2g
-
Measurement Accuracy: ±2°C or ±2%
-
Temperature Range: -20 to 120°C; 0 to 650°C; 300 to 1500°C
-
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
-
Image File Format: JPEG with measurement data
-
Image Storage Modes: IR, Visual, MSX, PiP, Gallery
-
Radiometric IR Video: Real-time recording and streaming over UVC
-
UltraMax: Enabled
-
GPS: Automatic image tagging
-
Text Input: Predefined list or touchscreen keyboard
-
Voice Annotation: 60 sec via mic or Bluetooth
-
Laser Pointer and Distance Meter: Yes
-
Measurement Presets: Center Spot, Hot/Cold Spot, 2 User Presets
-
Time Lapse: 10 sec to 24 hrs
FAQ
Q: What is the benefit of the 14° lens?
A: It allows for precise thermal imaging at longer distances with a narrow field of view for better target clarity.
Q: Can the E86 camera record radiometric video?
A: Yes, it supports real-time radiometric recording and streaming for advanced analysis.
Q: Is the UltraMax function available on this model?
A: Yes, UltraMax is included to enhance image resolution and measurement precision.
Q: How long does the battery last during operation?
A: The rechargeable battery lasts over 2.5 hours under typical use conditions.
Q: What storage options are available?
A: Images and videos are stored on a removable SD card in multiple formats including infrared and MSX.
