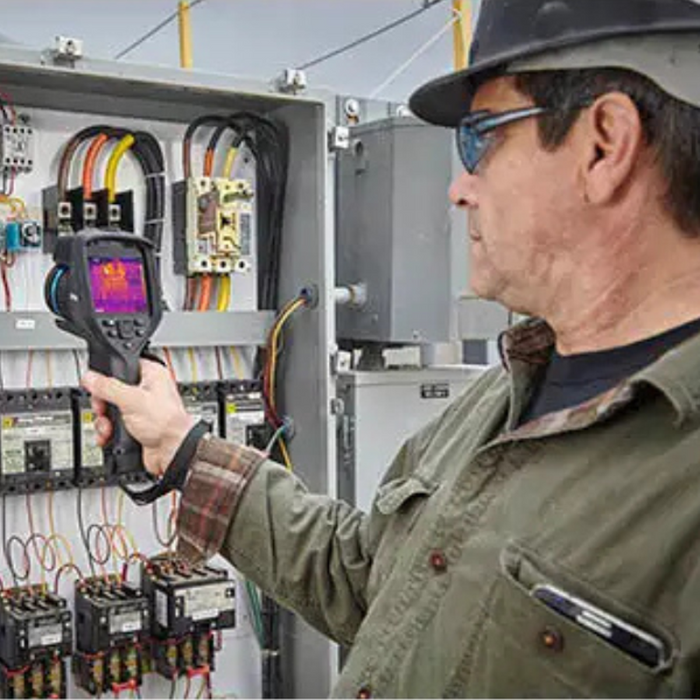

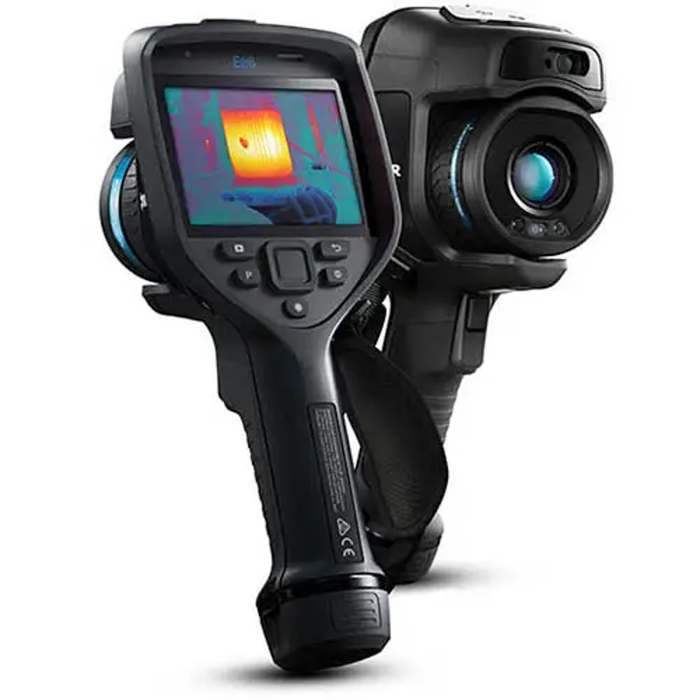

The Teledyne FLIR E86-42 Advanced Thermal Imaging Camera delivers high-performance detection with cutting-edge thermal imaging innovations including MSX and UltraMax technologies. Designed to enhance inspection precision across electrical, mechanical, and building applications, the E86 provides a 464 × 348 pixel resolution, a 42° lens for ultra-wide coverage, and a host of integrated tools to streamline reporting and analysis.
Its rugged yet ergonomic design supports prolonged field use, while onboard voice annotation, programmable buttons, GPS tagging, and seamless Teledyne FLIR software integration empower professionals to work faster and smarter. The large 4-inch touchscreen, vivid image quality, and AutoCal interchangeable lenses ensure accuracy, safety, and flexibility in all inspections.
What's Included:
- Teledyne FLIR E86-42 Thermal Imaging Camera with 42° lens
- Rechargeable Li-ion battery
- Removable SD card
- USB 2.0 and DisplayPort cable
- FLIR Thermal Studio Pro software access
- Lens calibration and camera firmware
- Protective transport case
Features
42° Wide-Angle Lens
Captures a broad field of view, ideal for inspecting large surfaces such as roofs and building facades in a single image.
Laser Distance Meter
Enables fast, accurate autofocusing and provides data for on-screen area measurements in m² or ft².
Interchangeable AutoCal Lenses
Ensure automatic calibration for safe targeting of hot spots and reliable inspections over varying distances.
UltraMax Technology
Combines multiple frames to generate a higher resolution image with more detail and improved measurement accuracy.
MSX Imaging
Enhances thermal images with visible light edge details, making text and structures stand out clearly.
Inspection Route Enabled
Supports Teledyne FLIR’s Inspection Route plugin for structured, efficient on-site surveys and organized reporting.

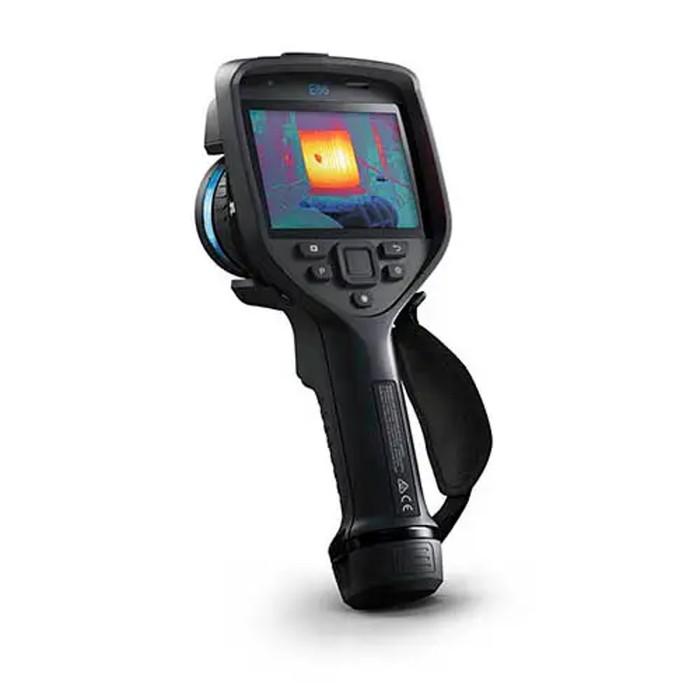

Advanced Touchscreen Interface
Large 4-inch LCD with 640 × 480 resolution offers intuitive control and sharp visuals in all conditions.
Multiple Measurement Presets
Quickly switch between Center Spot, Hot Spot, Cold Spot, and user-defined configurations for targeted analysis.
Full Radiometric Video
Records .csq video with embedded temperature data for in-depth thermal analysis.
Reliable Connectivity
Features Wi-Fi, Bluetooth, USB 2.0, and DisplayPort for data transfer, streaming, and live output.
Durable and Weather Resistant
Built to withstand 25g shock, 2g vibration, and IP54-rated for protection against dust and water.
What's Included
Included with Your Purchase:
- Teledyne FLIR E86-42 Thermal Imaging Camera with 42° lens
- Rechargeable Li-ion battery
- Removable SD card
- USB 2.0 and DisplayPort cable
- FLIR Thermal Studio Pro software access
- Lens calibration and camera firmware
- Protective transport case
Specifications
-
IR Resolution: 464 × 348 pixels
-
Lens: 42°, 10 mm
-
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
-
Image Frequency: 30 Hz
-
Spectral Range: 7.5–14 µm
-
Focus Modes: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Digital Zoom: 1–4x continuous
-
Display: 4 in., 640 × 480 touchscreen LCD with auto-rotation
-
Camera Type: Uncooled microbolometer, 17 µm pitch
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Battery Operating Time: Over 2.5 hours at 25°C
-
Video Output: DisplayPort over USB Type-C
-
Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Radiometric Video: Yes (.csq format)
-
Non-Radiometric Video: H.264, MPEG-4, MJPEG
-
Voice Annotation: 60-second recordings via mic or Bluetooth
-
Storage Media: Removable SD card
-
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
-
Weight: Varies with lens
-
Shock and Vibration: 25g/2g (IEC standards)
-
Ingress Protection: IP54 (IEC 60529)
FAQ
Q: What is the field of view with the included lens?
A: The 42° lens provides a wide-angle view, ideal for covering large areas like rooftops or walls.
Q: Does the E86 support full radiometric video?
A: Yes, it supports real-time radiometric recording and streaming with embedded temperature data.
Q: Can the camera be used with multiple lenses?
A: Yes, it features AutoCal interchangeable lenses that auto-calibrate for optimal performance.
Q: How does UltraMax improve thermal imaging?
A: UltraMax enhances resolution and clarity by combining multiple frames into one detailed image.
Q: Is the device rugged enough for industrial environments?
A: Yes, it is IP54 rated and tested against shock, vibration, and extreme temperatures.
