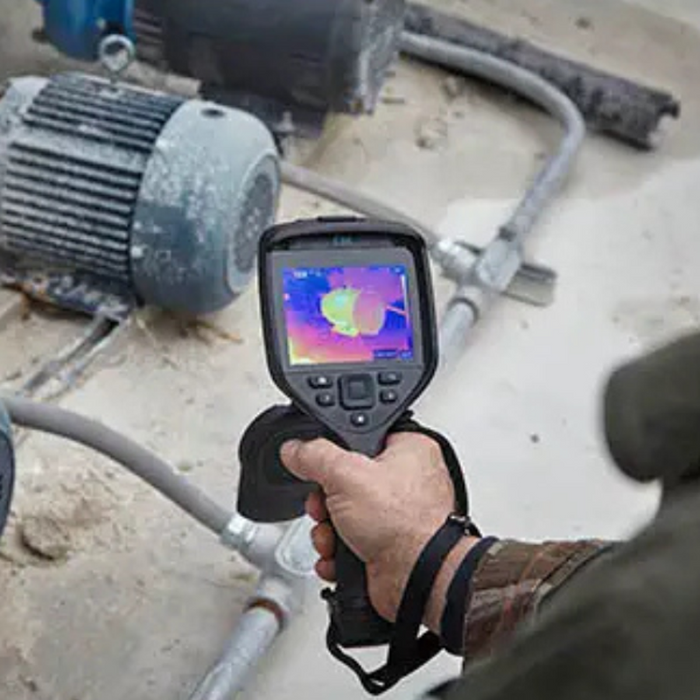

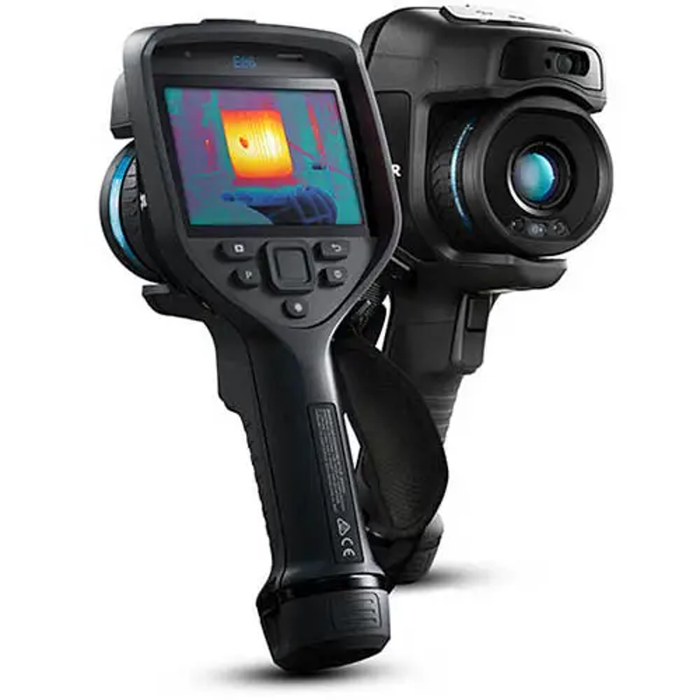

The Teledyne FLIR E86-42-14 Advanced Thermal Imaging Camera is engineered for professionals who demand sharp thermal imagery and robust functionality in the field. With a 464 x 348 pixel IR resolution and 30 Hz refresh rate, this camera delivers fast, accurate detection of electrical, mechanical, and building deficiencies. Integrated MSX and UltraMax technologies enhance image clarity and measurement precision, offering unparalleled detail and context.
Equipped with both a 42° wide-angle lens and a 14° telephoto lens, users can capture broad overviews or zoom in on distant targets with equal clarity. Its advanced laser distance meter ensures quick, precise autofocus and enables accurate area measurements on screen. The E86’s AutoCal lens system automatically calibrates with the camera, streamlining lens changes without the need for service downtime.
Designed for demanding environments, this rugged device includes voice annotation, a bright 4-inch touchscreen, built-in GPS tagging, and seamless software integration. Use FLIR Thermal Studio Pro and the Inspection Route plugin to manage workflows and generate inspection reports efficiently.
What's Included:
- Teledyne FLIR E86 Thermal Camera
- 42° (10 mm) Wide-Angle Lens
- 14° (29 mm) Telephoto Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- FLIR Thermal Studio Pro Software
- Integrated Laser Distance Meter
- USB-C Cable and Power Accessories
- Hard Carrying Case
Features
Dual Lens System
Includes 42° wide-angle and 14° telephoto lenses for capturing both broad and distant thermal targets with precision.
MSX Imaging Technology
Adds visible edge detail to thermal images, making labels and object outlines more readable directly in the IR view.
UltraMax Resolution Enhancement
Combines multiple frames to produce images with four times the thermal pixel count, improving measurement accuracy and clarity.
Laser-Assisted Autofocus
Built-in laser distance meter enables fast, accurate focus and on-screen area measurement for quick evaluations.
High-Performance Display
Features a 4" LCD touchscreen with 640 x 480 resolution and auto-rotation for clear viewing and easy navigation.
AutoCal Lens Compatibility
Interchangeable lenses automatically calibrate with the camera to ensure consistent, accurate results.
Enhanced Inspection Workflow
FLIR Inspection Route support allows predefined, guided inspections and seamless report integration.
Durable and Field-Ready
IP54 rating with shock and vibration resistance for reliable operation in tough environments.
What's Included
Included with Your Purchase:
- Teledyne FLIR E86 Thermal Camera
- 42° (10 mm) Wide-Angle Lens
- 14° (29 mm) Telephoto Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- FLIR Thermal Studio Pro Software
- Integrated Laser Distance Meter
- USB-C Cable and Power Accessories
- Hard Carrying Case
Specifications
-
IR Resolution: 464 x 348 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
-
Spectral Range: 7.5 - 14 µm
-
Focus: Continuous, One-shot LDM/Contrast, Manual
-
Digital Camera: 5 MP with LED light
-
Display: 4" LCD, 640 x 480 pixels
-
Digital Zoom: 1-4x continuous
-
Storage Media: Removable SD card
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Video Output: DisplayPort via USB-C
-
Radiometric IR Video: Real-time recording and streaming (.csq, UVC)
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Battery Operating Time: >2.5 hours at 25°C (typical use)
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Measurement Range: -20 to 120°C, 0 to 650°C, 300 to 1500°C
-
Image File Format: JPEG with measurement data
-
Image Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
-
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
-
Shock and Vibration: 25g/2g per IEC 60068
-
Ingress Protection: IP54
-
GPS: Automatic tagging
-
Text and Voice Annotation: On-screen keyboard or predefined list; 60s voice via mic or Bluetooth
-
Programmable Buttons: 1
FAQ
Q: Does the E86 support interchangeable lenses?
A: Yes, it supports AutoCal lenses that automatically calibrate with the camera when changed.
Q: What is UltraMax technology?
A: UltraMax captures multiple images to create a higher resolution composite image with more pixels and less noise.
Q: Can I record video and audio with the E86?
A: Yes, the E86 allows recording of IR and visual video, with optional voice annotations using the built-in mic or Bluetooth.
Q: Is the device suitable for building inspections?
A: Absolutely, it’s optimized for both building diagnostics and electrical/mechanical inspections, with high resolution and wide/narrow lens options.
Q: How long does the battery last?
A: The included rechargeable battery offers over 2.5 hours of operation under typical conditions.
