FLIR E86 Thermal Imager Dual FOV 14° 24° 30Hz 464x348 with DFOV Lens -20 to 1500°C

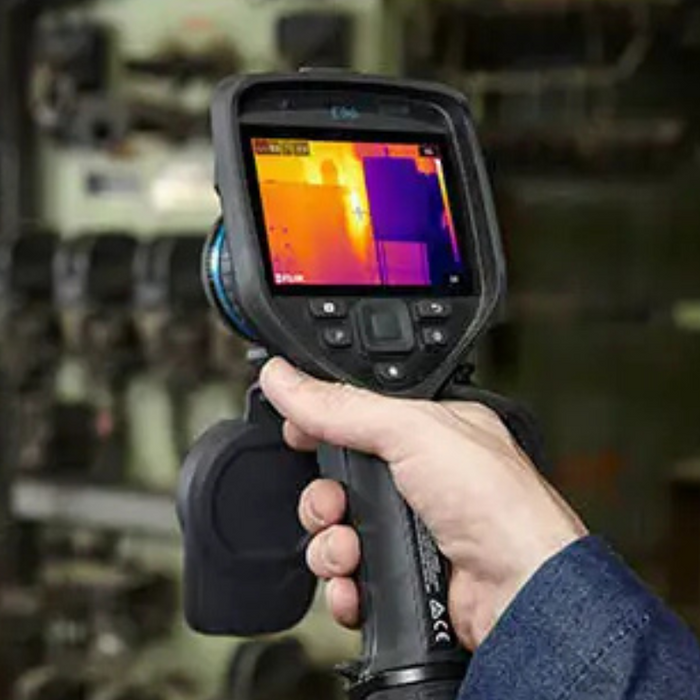

The Teledyne FLIR E86 Dual FOV 14° + 24° Thermal Imager with FlexView lens offers powerful imaging versatility in a single device. With one lens providing both wide-area and telephoto thermal views, users can switch fields of view instantly—no manual lens swap required. This innovation not only enhances workflow efficiency but also protects the lens from potential damage caused by dust and debris.

The E86 delivers full radiometric performance, high-resolution thermal imaging at 464 × 348 pixels, and rapid 1-second toggle time between fields of view. Whether scanning broad electrical systems or zooming in on precise hot spots, the dual FOV capabilities ensure optimal clarity and accuracy. Ideal for professionals inspecting mechanical, electrical, and industrial systems, the E86 is engineered to detect hidden issues quickly with minimal disruption.

What's Included:

• 1 - Power Supply
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Adapter
• 1 - USB Type-C to USB Type-C Cable
• 1 - Front Protection Fastener
• 1 - Left Hand Strap Bracket
• 1 - Right Hand Strap Bracket
• 1 - Torx T10 Wrench
• 1 - Carabiner Hook
• 1 - Front Protection
• 1 - Hand Strap
• 1 - Lanyard Strap
• 1 - Lens Cap Strap
• 1 - Wrist Strap
• 2 - Battery
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Infrared Camera with Lens
• 1 - Front Lens Cap
• 1 - Front and Rear Lens Cap (only for extra lenses)
• 1 - FLIR Thermal Studio

Features

High-Resolution Thermal Imaging
Offers 464 × 348 pixel infrared resolution for precise thermal detection and reporting.

Dual Field of View Lenses
Includes integrated 14° and 24° lens angles to switch between wide-area and detailed views.

FLIR FlexView Lens System
Enables fast, seamless transition between FOVs at the press of a button—no manual lens change needed.

Radiometric Zoom
Delivers enhanced thermal image clarity and accuracy across distances with detailed temperature readings.

Fast 1-Second Toggle
Allows quick transitions between fields of view, speeding up workflow in demanding environments.

Rugged and Safe Operation
Reduces risk of lens damage by keeping the optics protected from environmental contaminants.

What's Included

Included with Your Purchase:

• 1 - Power Supply
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Adapter
• 1 - USB Type-C to USB Type-C Cable
• 1 - Front Protection Fastener
• 1 - Left Hand Strap Bracket
• 1 - Right Hand Strap Bracket
• 1 - Torx T10 Wrench
• 1 - Carabiner Hook
• 1 - Front Protection
• 1 - Hand Strap
• 1 - Lanyard Strap
• 1 - Lens Cap Strap
• 1 - Wrist Strap
• 2 - Battery
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Infrared Camera with Lens
• 1 - Front Lens Cap
• 1 - Front and Rear Lens Cap (only for extra lenses)
• 1 - FLIR Thermal Studio

Specifications

• IR Resolution: 464 x 348
• Image Frequency: 30 Hz
• Thermal Sensitivity (NETD): Less than 40 mK at 86°F
• Object Temperature Range: -20°C to 1500°C (-4°F to 2732°F)
• Field of View: 14° and 24° (Dual FOV)
• Radiometric Zoom: Yes
• Lens System: FLIR FlexView Dual FOV Lens
• Toggle Time Between Views: 1 second
• Condition: New

FAQ

Q: Can I switch between the 14° and 24° lenses without removing the lens?
A: Yes, the integrated FLIR FlexView lens allows instant switching between views at the press of a button.

Q: What temperature range does this camera cover?
A: It measures from -20°C to 1500°C, making it suitable for a wide variety of industrial applications.

Q: Does this camera support radiometric zoom?
A: Yes, it features radiometric zoom for enhanced clarity and precise thermal readings.

Q: What is included in the box?
A: The package includes the camera, dual batteries, cables, straps, software, and various accessories for immediate use.

Resources

Documents:

• FLIR Exx Series Datasheet
