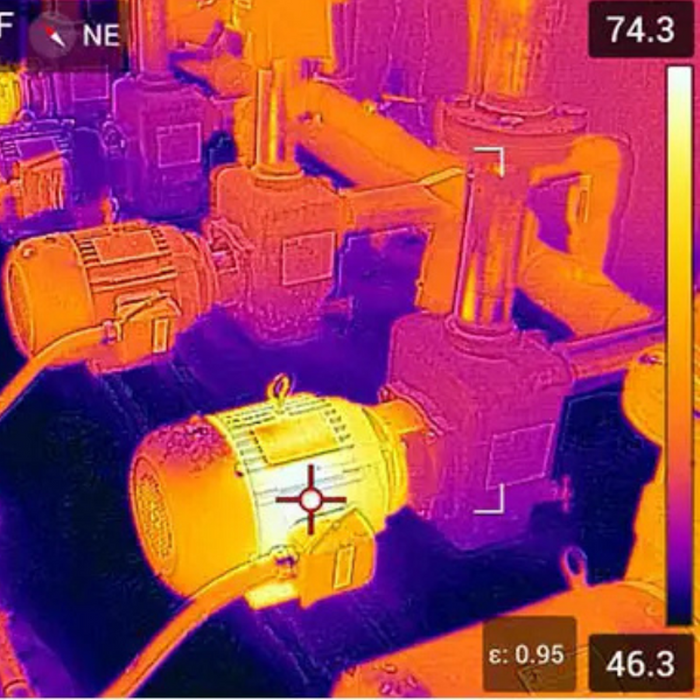

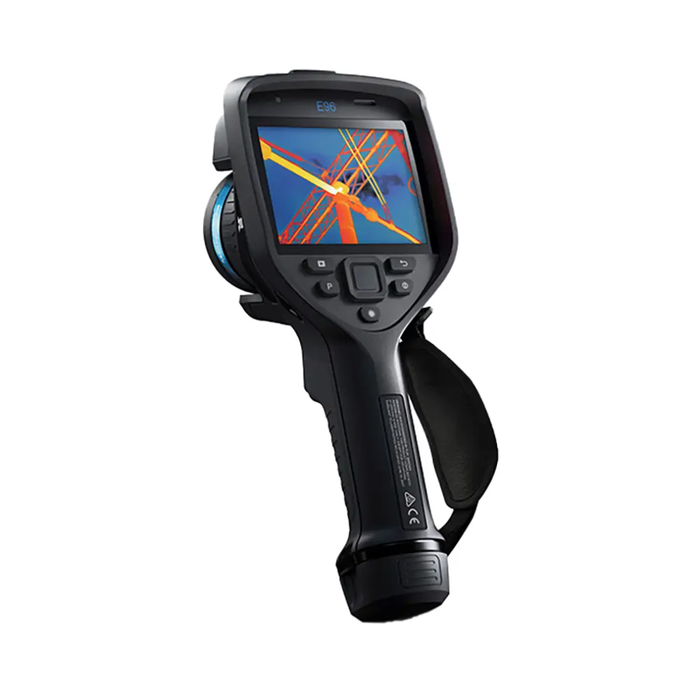

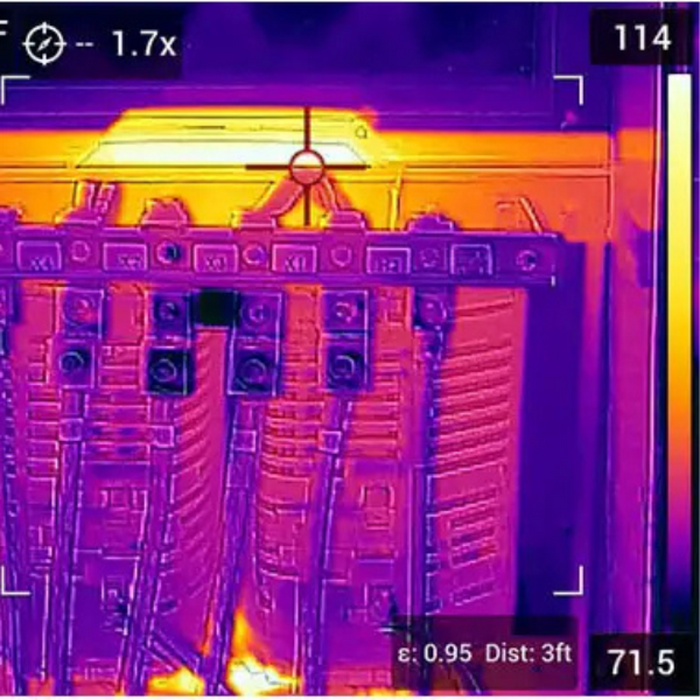

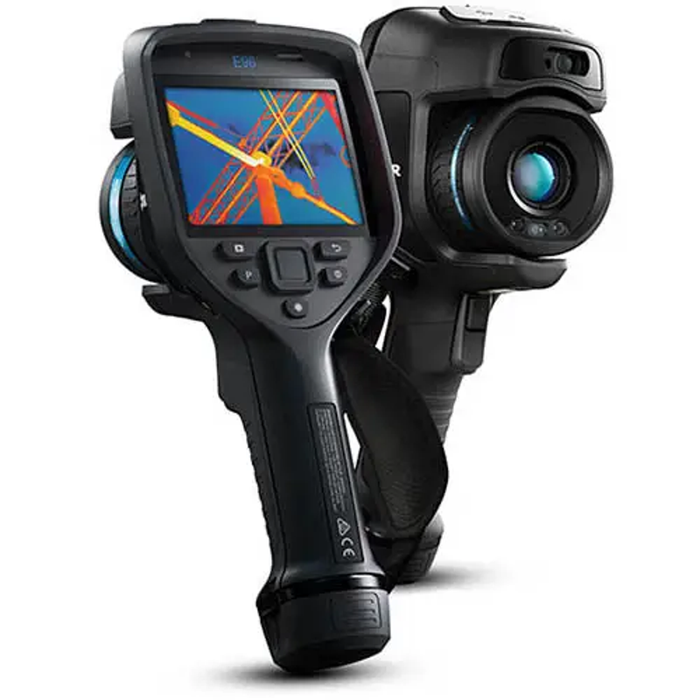

The Teledyne FLIR E96-14 Advanced Thermal Imaging Camera delivers unmatched detail and accuracy for high-voltage and industrial inspections. Featuring a 640 × 480 thermal resolution and enhanced with patented UltraMax and MSX imaging technologies, this camera allows users to detect electrical and mechanical issues with greater clarity—even from a distance. Its ergonomic pistol-grip design and high-contrast 4-inch LCD touchscreen make it ideal for use in challenging environments.
Interchangeable AutoCal lenses enable the E96 to adapt to a variety of tasks without service interruptions. The built-in laser distance meter ensures pinpoint focus for reliable measurements, while integrated voice annotation and FLIR Inspection Route capabilities streamline data collection and reporting. Paired with the FLIR Thermal Studio Pro software suite, users can efficiently analyze, organize, and report findings to improve workflow productivity.
What's Included:
- Teledyne FLIR E96 Camera with 14° (29 mm) Lens
- Rechargeable Li-ion Battery
- Battery Charger
- Hard Transport Case
- Neck Strap
- Lens Cap
- USB Cable
- FLIR Thermal Studio Pro Software (License or Activation)
Features
640 x 480 Thermal Resolution
Captures detailed infrared images enhanced with UltraMax and MSX technologies for superior clarity and context.
Telephoto 14° Lens
Included 29 mm lens provides narrow field of view for focusing on distant targets with precision.
AutoCal Interchangeable Lenses
Automatically calibrated upon attachment, these lenses ensure accurate measurements without manual recalibration.
FLIR Inspection Route Compatibility
Streamlines inspections by following predefined routes and tagging data for efficient processing.
Onboard Annotation Tools
Capture voice notes with the built-in mic or Bluetooth, and use on-screen sketch and text tools for documentation.
Intuitive 4" Touchscreen Display
High-resolution display with auto-rotation enhances visibility and usability in the field.
Wide Temperature Range
Measures from -20 to 1500°C, accommodating various applications from building diagnostics to industrial maintenance.
Rugged and Reliable
Built to withstand harsh environments with IP54 protection, shock resistance, and wide operating temperature tolerance.
Advanced Connectivity
Features USB, Bluetooth, Wi-Fi, and DisplayPort over USB-C for versatile data transfer options.
Radiometric Video Recording
Capture and stream real-time thermal data for detailed post-analysis and documentation.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Camera with 14° (29 mm) Lens
- Rechargeable Li-ion Battery
- Battery Charger
- Hard Transport Case
- Neck Strap
- Lens Cap
- USB Cable
- FLIR Thermal Studio Pro Software (License or Activation)
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Lens: 14° / 29 mm Telephoto (included)
-
Display: 4 in. LCD, 640 x 480 resolution, auto-rotation
-
Image Frequency: 30 Hz
-
Digital Zoom: 1–8x continuous
-
Focus: Manual, One-shot contrast, One-shot LDM, Continuous LDM
-
Battery Life: Over 2.5 hours (typical use)
-
Storage Media: Removable SD card
-
Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Thermal Sensitivity (NETD): < 40 mK at 30°C
-
Spectral Range: 7.5–14 µm
-
Video Formats: Radiometric (.csq), Non-radiometric H.264, MPEG-4
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Laser Distance Meter: Yes, with dedicated button
-
Accuracy: ±2°C or ±2% of reading
-
GPS: Automatic image tagging
-
Shock/Vibration Rating: 25g/2g; IP54 protection
FAQ
Q: What resolution does the E96 provide?
A: The E96 delivers a 640 × 480 pixel thermal resolution with enhanced detail from MSX and UltraMax technologies.
Q: Is the lens interchangeable?
A: Yes, the E96 supports AutoCal interchangeable lenses for flexibility and high measurement accuracy.
Q: Can I annotate images and videos?
A: Yes, you can add voice notes, sketches, and text annotations directly on the camera.
Q: What temperature range does the camera cover?
A: It measures from -20°C to 1500°C across three preset ranges.
Q: Does it come with analysis software?
A: Yes, it includes a license for FLIR Thermal Studio Pro for thermal analysis and reporting.
