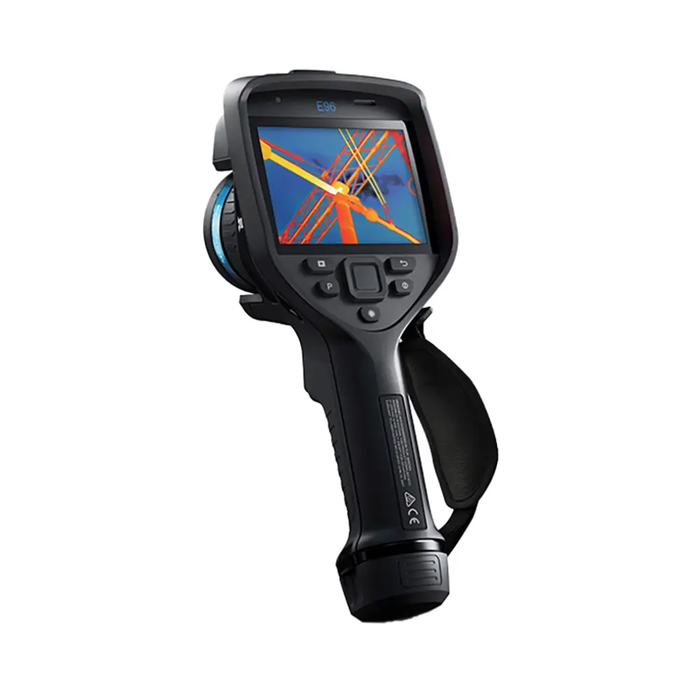

The Teledyne FLIR E96-80 Advanced Thermal Imaging Camera is a high-resolution thermal tool designed for professionals who demand superior detail and flexibility. With a 640 x 480 thermal sensor, this camera enables users to safely scan and analyze high-voltage or hard-to-reach targets without compromising image clarity. It features the innovative FLIR FlexView dual field-of-view lens, allowing instant switching between wide-area and telephoto views at the press of a button—ideal for large facility inspections or pinpointing small, distant components.
Equipped with the FLIR Thermal Studio Starter software and onboard Inspection Route capabilities, the E96-80 supports efficient, organized inspections by following predefined paths and automatically storing images. The 80° lens delivers an ultra-wide view for building and cabinet inspections, and FLIR Ignite integration allows automatic uploads to the cloud for secure image backup and sharing.
What's Included:
- Teledyne FLIR E96-80 Advanced Thermal Imaging Camera
- 80° FlexView Dual Field-of-View Lens
- FLIR Thermal Studio Starter Software
Features
Ultra Wide-Angle Lens
Offers expansive 80° field-of-view for inspecting large surfaces or tight, enclosed spaces without repositioning.
Dual Field-of-View with FlexView
Instantly toggles between wide-area and telephoto views with one button, enhancing flexibility during inspections.
High Thermal Resolution
640 x 480 resolution with FLIR UltraMax and MSX image enhancement ensures highly detailed and vibrant thermal imagery.
Thermal Studio Starter Software
Allows advanced analysis and reporting of captured thermal data using a PC-based platform.
Pre-Planned Inspection Route
Onboard FLIR Inspection Route software helps users follow organized workflows and inspection paths.
Cloud Connectivity with FLIR Ignite
Automatically uploads captured images to the cloud directly from the camera for secure access and sharing.
Advanced Touchscreen Display
Features a 4" 640 x 480 touchscreen LCD with auto-rotation for easy image viewing and navigation.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96-80 Advanced Thermal Imaging Camera
- 80° FlexView Dual Field-of-View Lens
- FLIR Thermal Studio Starter Software
Specifications
-
IR Resolution: 640 x 480 pixels
-
Thermal Sensitivity/NETD: <30 mK at 30°C (86°F)
-
Temperature Range: -4°F to 248°F; 32°F to 1202°F; 572°F to 2732°F
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Field of View (FOV): 80° x 63°
-
Digital Camera: 5 MP with built-in LED photo/video lamp (disabled when using 80° lens)
-
Display: 4 inch, 640 x 480 pixel touchscreen LCD with auto-rotation
FAQ
Q: What is the advantage of the FlexView dual field-of-view lens?
A: It allows users to switch instantly between wide-area and telephoto views with a single button press for versatile inspections.
Q: Can I use the camera for high-temperature applications?
A: Yes, the E96-80 measures up to 2732°F across three temperature ranges.
Q: Does the camera support cloud storage?
A: Yes, images can be automatically uploaded to the FLIR Ignite cloud platform.
Q: Is the software included with the camera?
A: Yes, it comes with FLIR Thermal Studio Starter for image analysis and reporting.
