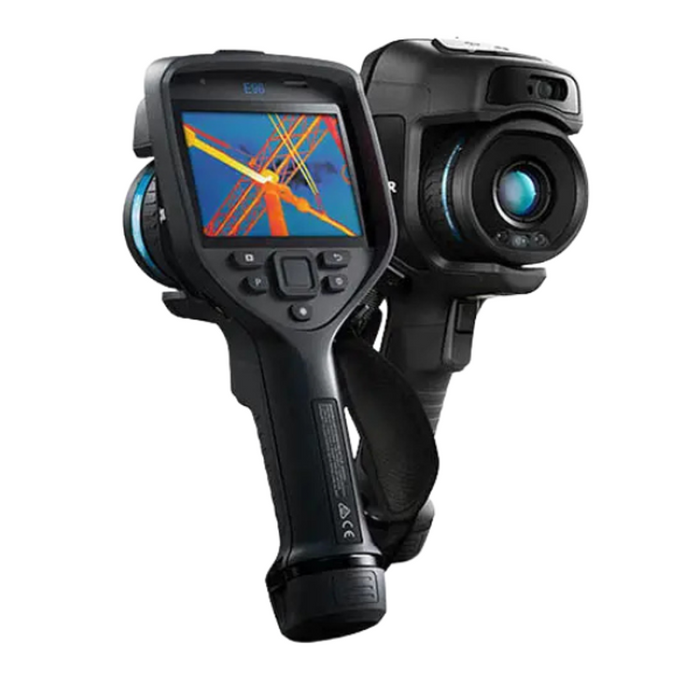

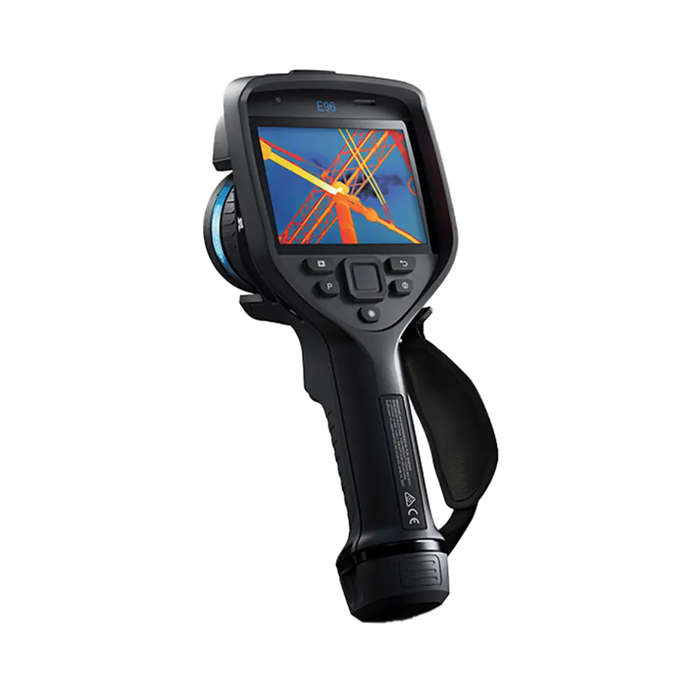

The Teledyne FLIR E96-24-NIST Advanced Thermal Imaging Camera is a powerful diagnostic tool designed for professionals who need precision and efficiency in thermal inspections. With a 640 × 480 resolution and a 24° lens, the E96 provides sharp, detailed thermal images from a safe distance, enhancing worker safety around energized equipment.
Equipped with MSX® and UltraMax® technologies, the E96 delivers vivid thermal visuals by enhancing image detail and quadrupling thermal pixel data for improved analysis. Interchangeable AutoCal™ lenses ensure precise thermal measurements every time without requiring service-based calibration. Its integrated laser distance meter and vibrant 4" LCD touchscreen display streamline the inspection process and ensure accurate, crisp focus.

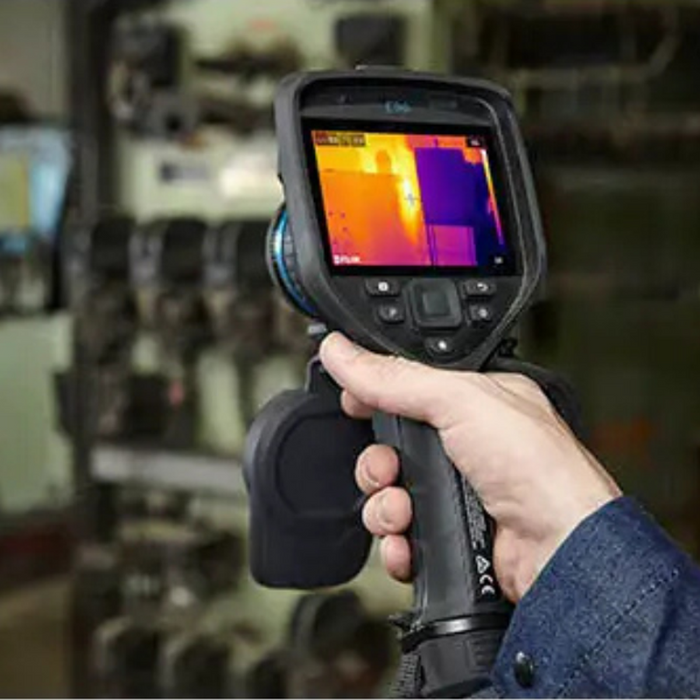

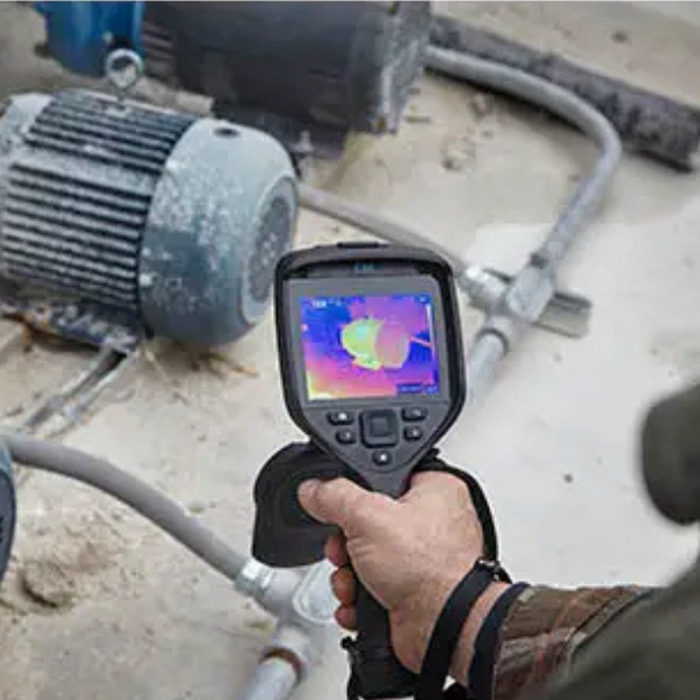

Whether diagnosing electrical faults, identifying mechanical issues, or detecting moisture in buildings, the E96 provides the resolution and tools to detect problems early and document them efficiently. With FLIR Thermal Studio Pro software and Inspection Route functionality, users can organize, analyze, and report data quickly to boost productivity in the field and office.
What's Included:
- Teledyne FLIR E96 Thermal Camera with 24° Lens
- NIST Calibration
- Teledyne FLIR Thermal Studio Pro Software License
- Rechargeable Li-ion Battery
- Removable SD Card
- USB Type-C Cable
- Hard Carrying Case
Features
High-Resolution Thermal Imaging
Features a 640 x 480 thermal detector for detailed imaging and accurate diagnostics.
24° Standard Lens
Provides a wide field of view, allowing safe distancing from targets without losing image clarity.
UltraMax and MSX Enhancement
Combines multiple images for greater resolution and overlays edge detail for superior thermal definition.
Interchangeable AutoCal Lenses
Auto-recognition and calibration ensure consistently accurate measurements across multiple lens options.
Thermal Studio Pro Software
Streamlines inspection reporting and management with efficient workflow tools.
Laser Distance Meter
Provides accurate focusing and safe distance measurement with a dedicated laser button.
Comprehensive Inspection Route Integration
Guides the inspector through predefined checkpoints, automatically organizing captured data.
Robust Voice, Text, and Image Annotation
Supports voice notes, keyboard text entry, and image sketching directly on the display for thorough documentation.
Reliable Storage and Connectivity
Supports USB 2.0, Wi-Fi, Bluetooth, DisplayPort, and removable SD card for easy data transfer.
Built-In Digital Camera
5 MP visual camera with LED lamp enhances scene documentation alongside thermal data.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Camera with 24° Lens
- NIST Calibration
- Teledyne FLIR Thermal Studio Pro Software License
- Rechargeable Li-ion Battery
- Removable SD Card
- USB Type-C Cable
- Hard Carrying Case
Specifications
-
IR Resolution: 640 x 480 pixels
-
Thermal Sensitivity/NETD: <40 mK at 30°C
-
Lens: 24° (17 mm)
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4-inch 640 x 480 LCD touchscreen
-
Zoom: 1-8x digital continuous
-
Image Frequency: 30 Hz
-
Laser Distance Meter: Yes
-
Video Output: DisplayPort over USB Type-C
-
Image File Format: JPEG with radiometric data
-
Storage Media: Removable SD card
-
Interfaces: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
-
Voice Annotation: 60 sec via mic or Bluetooth
-
Text Annotation: Predefined or keyboard input
-
Sketching: On-screen drawing on infrared images
-
Measurement Accuracy: ±2°C or ±2% of reading
-
Object Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
-
Spectral Range: 7.5 to 14 µm
-
GPS: Automatic image tagging
-
Battery Operating Time: >2.5 hours at 25°C
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
Shock/Vibration/Ingress Protection: 25g/2g/IP54
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
FAQ
Q: What is the resolution of the E96 camera?
A: It features a 640 x 480 resolution with UltraMax enhancement for higher clarity.
Q: Can I switch lenses without sending the unit for calibration?
A: Yes, AutoCal lenses are automatically recognized and calibrated by the camera.
Q: How is the device powered and how long does it last?
A: It uses a rechargeable Li-ion battery with over 2.5 hours of operating time under normal conditions.
Q: Does it support video recording?
A: Yes, it supports radiometric and non-radiometric video recording and streaming.
Q: Is it suitable for building diagnostics?
A: Absolutely. It can detect air leaks, moisture intrusion, and structural issues with precision.
