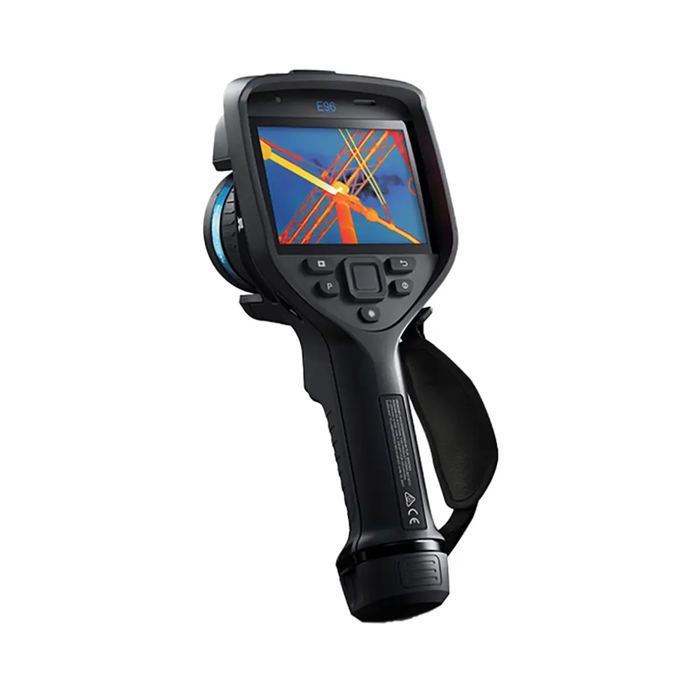

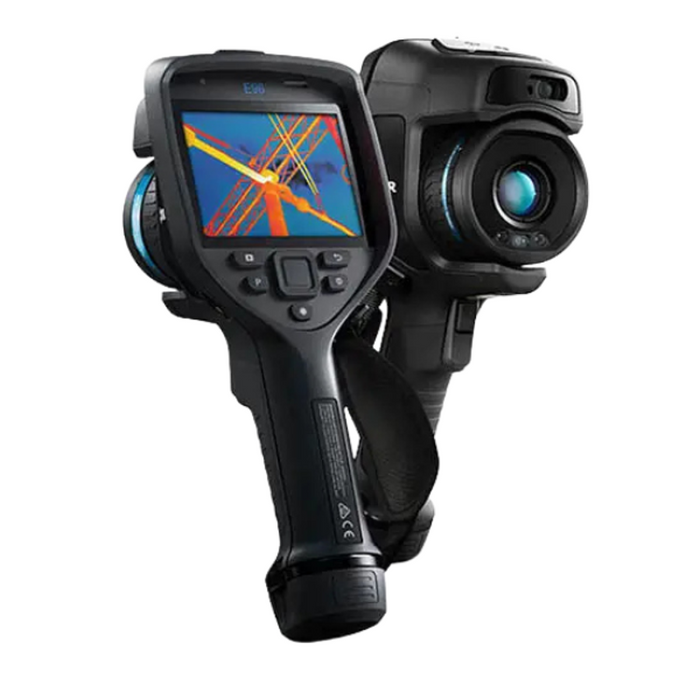

The Teledyne FLIR E96-42-NIST Advanced Thermal Imaging Camera is a powerful tool designed for professional thermographers needing precision, versatility, and high-resolution imaging in electrical, mechanical, and building diagnostics. It’s the first FLIR pistol-grip camera with 640 x 480 thermal resolution, paired with a 42° wide-angle lens for optimal field of view. The included NIST calibration ensures accurate, traceable temperature readings for critical inspection tasks.
With interchangeable AutoCal lenses, laser-assisted focusing, and enhanced image clarity via UltraMax and MSX technologies, the E96 empowers users to capture clear, detailed thermal data across a range of challenging environments. Its rugged build and advanced software integration—like FLIR Thermal Studio Pro and Inspection Route—streamline inspections, automate reporting, and reduce time spent post-processing.

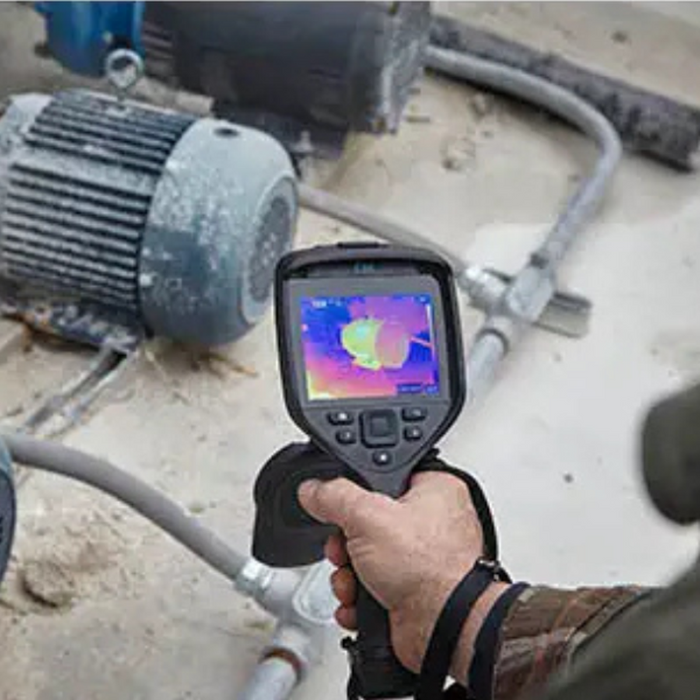

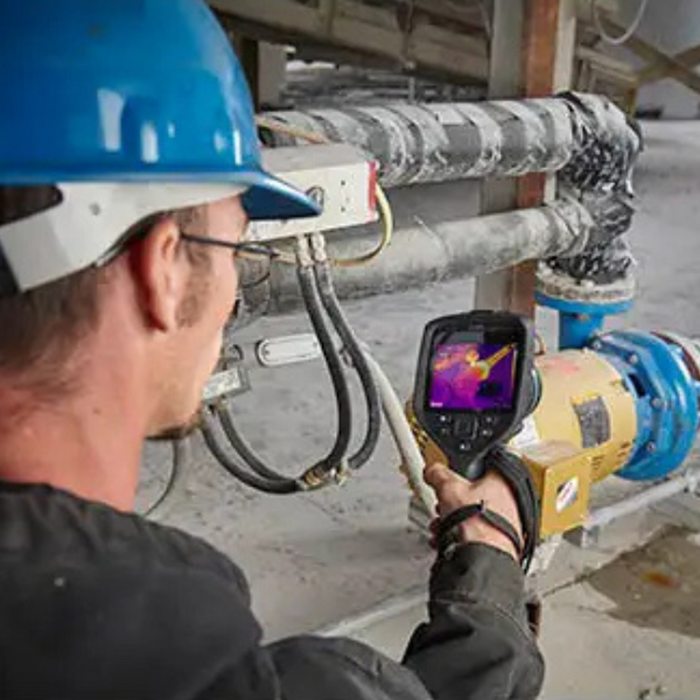

Whether you're identifying hidden building leaks, locating mechanical wear, or detecting electrical faults before they become failures, the E96 provides comprehensive features to boost safety, efficiency, and reporting accuracy.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 42° Wide-Angle Lens (10 mm)
- FLIR Thermal Studio Pro Software License
- UltraMax and MSX Image Enhancement Technologies
- NIST Calibration Certificate
Features
Wide-Angle 42° Lens
Captures a large field of view ideal for imaging expansive areas like buildings or rooftops in a single frame.
High Thermal Resolution
Delivers crisp thermal images with 640 x 480 resolution, enhanced further with UltraMax super-resolution and MSX for visible detail overlay.
AutoCal Interchangeable Lenses
Supports quick lens swaps with automatic calibration for precision targeting from close-up components to distant structures.
Integrated FLIR Routing and Reporting
Streamlines inspection workflow with built-in voice annotation, route guidance, and instant reporting tools.
Thermal Studio Pro Software
Allows advanced thermal analysis and professional-grade reporting across thousands of images and videos.
Laser-Assisted Autofocus
Ensures pinpoint focusing accuracy for reliable temperature readings on specific targets.
Durable and Weather Resistant
IP54-rated enclosure and shock/vibration resistance ensure reliable performance in the field.
Versatile Communication Options
Features USB 2.0, Wi-Fi, DisplayPort, and Bluetooth for flexible data transfer and remote operation.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 42° Wide-Angle Lens (10 mm)
- FLIR Thermal Studio Pro Software License
- UltraMax and MSX Image Enhancement Technologies
- NIST Calibration Certificate
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Lens: 42° wide-angle, 10 mm
-
Image Frequency: 30 Hz
-
Image Enhancement: MSX and UltraMax
-
Display: 4 in. touchscreen LCD, 640 x 480 pixels, auto-rotating
-
Zoom: 1-8x digital
-
Focus Modes: Manual, Continuous LDM, One-shot LDM, One-shot contrast
-
Minimum Focus Distance: 0.15 m
-
Measurement Accuracy: ±2°C or ±2% of reading
-
Thermal Sensitivity/NETD: <40 mK at 30°C
-
Spectral Range: 7.5–14 µm
-
Camera Type: Uncooled microbolometer, 12 µm pitch
-
Digital Camera: 5 MP with LED lamp
-
Image Storage: Removable SD card; JPEG with embedded data
-
Battery Life: >2.5 hours
-
Battery Type: Rechargeable Li-ion
-
Operating Temperature: -15°C to 50°C (5°F to 122°F)
-
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
-
Interfaces: USB 2.0, Wi-Fi, DisplayPort over USB-C, Bluetooth
-
Voice Annotation: 60-second recording via mic or Bluetooth
-
Video Output: H.264 recording; streaming over Wi-Fi/UVC
-
Picture-in-Picture: Resizable and movable
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Shock and Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Ingress Protection: IP54 (IEC 60529)
-
GPS: Built-in for automatic image tagging
-
Laser Distance Meter: Yes, with dedicated button
-
Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Preset 1/2
-
Compliance: EN/UL/CSA/PSE 60950-1
FAQ
Q: What resolution does the E96 camera capture at?
A: The E96 captures thermal images at 640 x 480 resolution, enhanced with UltraMax technology.
Q: Does the camera support interchangeable lenses?
A: Yes, it supports AutoCal lenses that automatically calibrate with the camera.
Q: How long does the battery last?
A: The rechargeable battery provides over 2.5 hours of operation under normal use.
Q: What software is included for analysis and reporting?
A: The package includes Teledyne FLIR Thermal Studio Pro for advanced image management and reporting.
Q: Can I stream live thermal video from the camera?
A: Yes, via H.264 or MPEG-4 over Wi-Fi or UVC connections.
