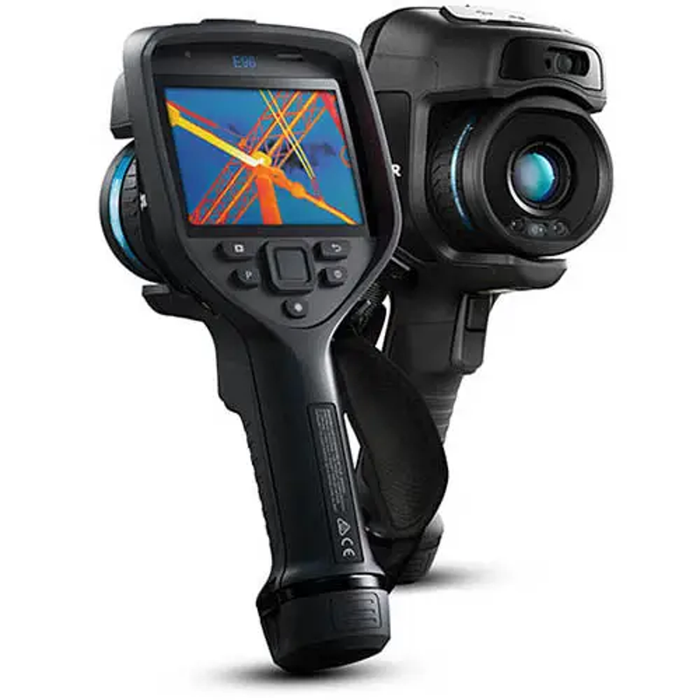

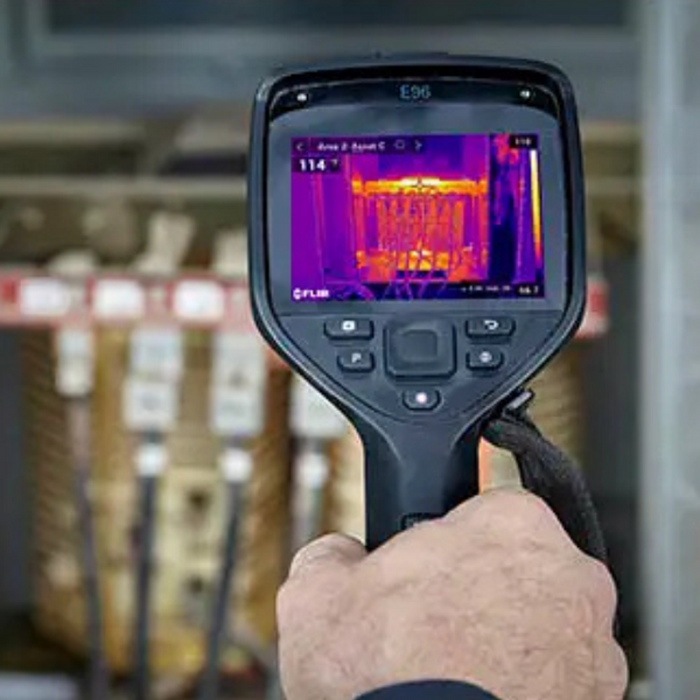

The Teledyne FLIR E96-24-14 Advanced Thermal Imaging Camera is engineered for professionals who demand precision, versatility, and productivity in a single device. With an impressive 640 x 480 thermal resolution and powerful Teledyne FLIR UltraMax and MSX enhancements, this rugged pistol-grip camera delivers clear, detailed images, making it ideal for diagnosing faults in electrical, mechanical, and building systems—safely and efficiently.
Interchangeable AutoCal lenses automatically calibrate for optimal performance and allow easy transitions between wide-angle and telephoto views. With features like laser-assisted autofocus, voice annotations, GPS tagging, and real-time radiometric video recording, the E96 streamlines inspections from field to report. The camera seamlessly integrates with FLIR Thermal Studio Pro and Inspection Route Creator, enabling structured workflows and fast, professional reporting.
What's Included:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° 17 mm Standard Lens
- 14° 29 mm Telephoto Lens
- FLIR Thermal Studio Pro Software License
- Battery and Charger
- Carrying Case
- USB Type-C Cable
- SD Card
- Documentation
Features
Dual Included Lenses
Comes with both a 24° standard lens and a 14° telephoto lens, giving you flexibility for close-range and distant inspections.
High Thermal Resolution
640 x 480 detector resolution with UltraMax enhancement captures sharp, high-contrast thermal images with full radiometric data.
MSX Image Fusion
MSX overlays visible edge detail onto thermal images, improving clarity without sacrificing radiometric accuracy.
AutoCal Lens Recognition
The camera automatically detects and calibrates new lenses for seamless transition and optimal imaging accuracy.
Laser Distance Measurement
Laser-assisted autofocus ensures precise focus and reliable temperature readings on every target.
On-Camera Inspection Routing
Inspection Route Creator plugin guides users through pre-defined inspection paths for consistent, organized data capture.
Rugged and Reliable
Withstands drops, vibration, and moisture, rated IP54 and tested to IEC 60068 standards for durability in the field.
Smart Communication Interfaces
Equipped with USB 2.0, Bluetooth, Wi-Fi, and DisplayPort for easy data transfer and connectivity.
Advanced Audio & Visual Features
Record voice notes, sketch on infrared images, and capture visible light photos with the built-in 5 MP camera and LED lamp.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Thermal Imaging Camera
- 24° 17 mm Standard Lens
- 14° 29 mm Telephoto Lens
- FLIR Thermal Studio Pro Software License
- Battery and Charger
- Carrying Case
- USB Type-C Cable
- SD Card
- Documentation
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Image Frequency: 30 Hz
-
Lenses Included: 24° (17 mm) and 14° (29 mm)
-
Focus Modes: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Digital Zoom: 1–8x continuous
-
Detector Type: Uncooled microbolometer, 12 µm
-
Spectral Range: 7.5–14 µm
-
Thermal Sensitivity: <40 mK at 30°C
-
Display: 4 in. 640 x 480 touchscreen LCD with auto-rotation
-
GPS: Automatic image tagging
-
Communication: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Storage: Removable SD card
-
Battery Life: >2.5 hours at 25°C
-
Video Output: DisplayPort over USB-C
-
Radiometric Video Recording: Real-time .csq format
-
Non-Radiometric Video Streaming: H.264, MPEG-4, MJPEG
-
Voice Annotation: 60-second recording per image/video
-
Shock/Vibration Rating: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Encapsulation: IP54 (IEC 60529)
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Accuracy: ±2°C or ±2% of reading
-
Measurement Range: -20 to 1500°C (-4 to 2732°F)
-
Image File Format: JPEG with embedded measurement data
-
Measurement Presets: Center Spot, Hot/Cold Spot, User Presets
-
Picture-in-Picture: Resizable and movable
FAQ
Q: What makes the E96 different from other FLIR models?
A: The E96 is FLIR’s first pistol-grip camera with 640 x 480 resolution and AutoCal lens compatibility, offering high precision and flexibility for diverse applications.
Q: Can I switch lenses easily in the field?
A: Yes, the E96 supports auto-calibrating lenses that can be hot-swapped without needing to send the unit for recalibration.
Q: Does the E96 support video recording?
A: It supports both radiometric and non-radiometric video recording and streaming in multiple formats including H.264 and MJPEG.
Q: How does UltraMax improve my images?
A: UltraMax combines data from 16 sub-frames to produce an image with up to 4x the thermal pixels, delivering sharper details and improved measurement accuracy.
Q: What software is included?
A: The camera includes a license for FLIR Thermal Studio Pro and supports the Inspection Route Creator plugin for efficient, guided workflows.
