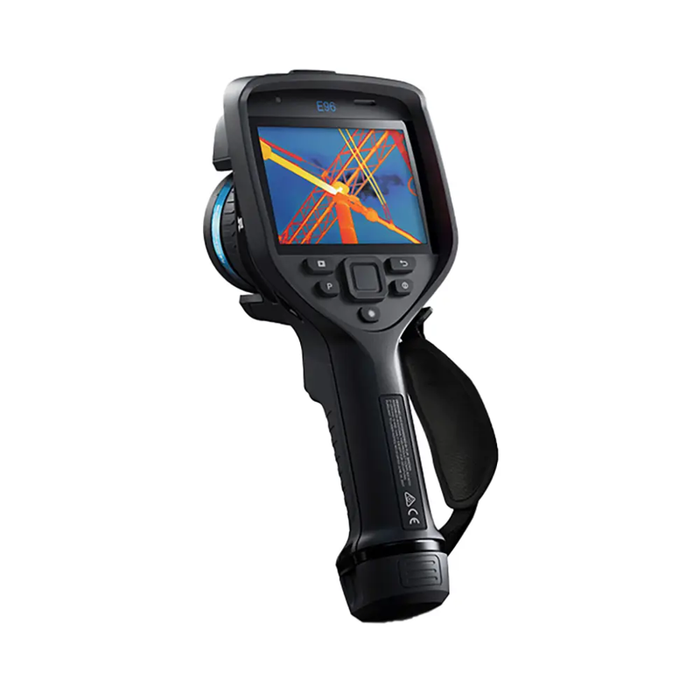

The Teledyne FLIR E96-42-14 Advanced Thermal Imaging Camera is the first pistol-grip model from Teledyne FLIR to offer 640 x 480 thermal resolution, enabling professionals to safely inspect high-voltage systems and rapidly identify electrical and mechanical issues. It features interchangeable AutoCal lenses for flexible targeting from close-up to long-range, with a laser distance meter ensuring pinpoint focus for precise temperature measurement.
Equipped with powerful image enhancement technologies like MSX and UltraMax, the E96 delivers vibrant, high-detail imagery for more accurate diagnostics. The built-in 4-inch touchscreen with auto-rotation and onboard integration with Teledyne FLIR’s Inspection Route software enables streamlined inspections and real-time reporting. Ideal for industrial, electrical, and building applications, the E96 is engineered for advanced performance, clarity, and efficiency.
What's Included:
- Teledyne FLIR E96 Camera
- 42° Wide-Angle Lens (10 mm)
- 14° Telephoto Lens (29 mm)
- FLIR Thermal Studio Pro Software
- Integrated Viewfinder
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 and DisplayPort Connectivity
Features
High Thermal Resolution with UltraMax
Delivers 640 x 480 native resolution, enhanced to higher clarity through UltraMax for improved detail and measurement accuracy.
MSX Image Enhancement
Blends visible and thermal images to highlight edges and text, making inspection results easier to interpret.
AutoCal Interchangeable Lenses
Camera recognizes and calibrates lenses automatically, providing precise thermal data for near and distant targets.
Wide and Telephoto Lens Combo
Includes 42° wide-angle and 14° telephoto lenses for maximum versatility in different inspection scenarios.
Advanced Measurement Tools
Supports up to three spot meters, image sketching, and predefined measurement presets for quick diagnostics.
Robust Communication Interfaces
Connects via USB, Wi-Fi, Bluetooth, and DisplayPort for fast data transfer and streaming options.
Voice and Text Annotation
Capture notes using the built-in mic or touchscreen keyboard for detailed documentation.
Rugged and Field-Ready
Built to endure challenging environments with IP54 rating and shock/vibration resistance.
Integrated Teledyne FLIR Software
Streamline inspections with Thermal Studio Pro and Inspection Route Creator for efficient workflows.
GPS and Laser Distance Meter
Enable accurate image tagging and distance measurement for consistent reporting.
What's Included
Included with Your Purchase:
- Teledyne FLIR E96 Camera
- 42° Wide-Angle Lens (10 mm)
- 14° Telephoto Lens (29 mm)
- FLIR Thermal Studio Pro Software
- Integrated Viewfinder
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 and DisplayPort Connectivity
Specifications
-
Thermal Resolution: 640 x 480 pixels
-
Image Frequency: 30 Hz
-
Lens Options: 42° (10 mm), 14° (29 mm)
-
Focus Options: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Zoom: 1–8x continuous digital
-
Display: 4 in. touchscreen LCD, 640 x 480 pixels
-
Storage: Removable SD card
-
Battery Operating Time: Over 2.5 hours at 25°C
-
Image File Format: JPEG with measurement data
-
Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
-
Thermal Sensitivity (NETD): < 40 mK at 30°C
-
Spectral Range: 7.5–14 µm
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Video Out: DisplayPort over USB Type-C
-
Environmental Rating: IP54, shock and vibration resistant
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
GPS: Automatic image tagging
-
Measurement Presets: Center Spot, Hot Spot, Cold Spot, User Presets
-
Laser Distance Meter: Yes
FAQ
Q: What resolution does the FLIR E96 offer?
A: The E96 provides a 640 x 480 thermal resolution, enhanced with UltraMax for even greater clarity.
Q: Are lenses interchangeable?
A: Yes, the E96 supports AutoCal interchangeable lenses that auto-calibrate for consistent precision.
Q: What temperature ranges can it measure?
A: The camera supports measurements from -20°C to 1500°C across three ranges.
Q: Does the E96 support voice annotation?
A: Yes, users can record up to 60 seconds of voice annotation per image or video clip using the built-in mic.
Q: Is the FLIR E96 compatible with FLIR software?
A: Absolutely, it integrates seamlessly with FLIR Thermal Studio Pro and the Inspection Route Creator plugin.
