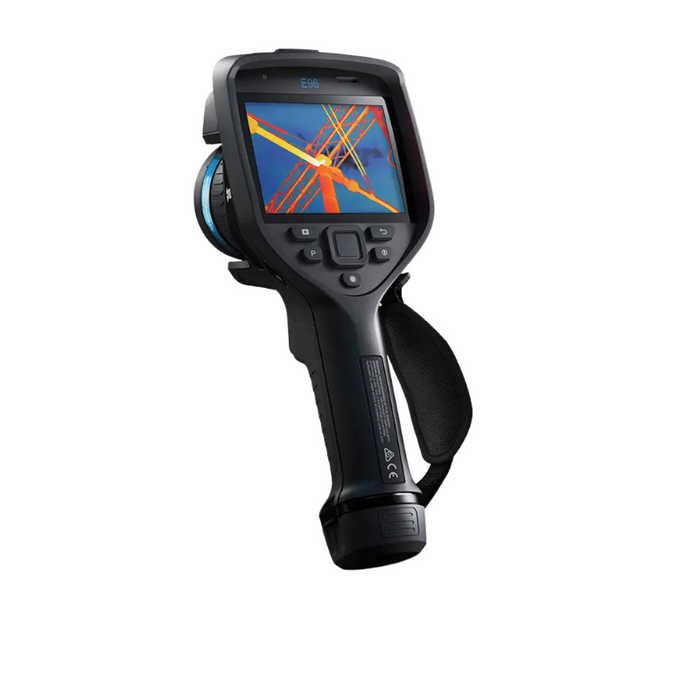

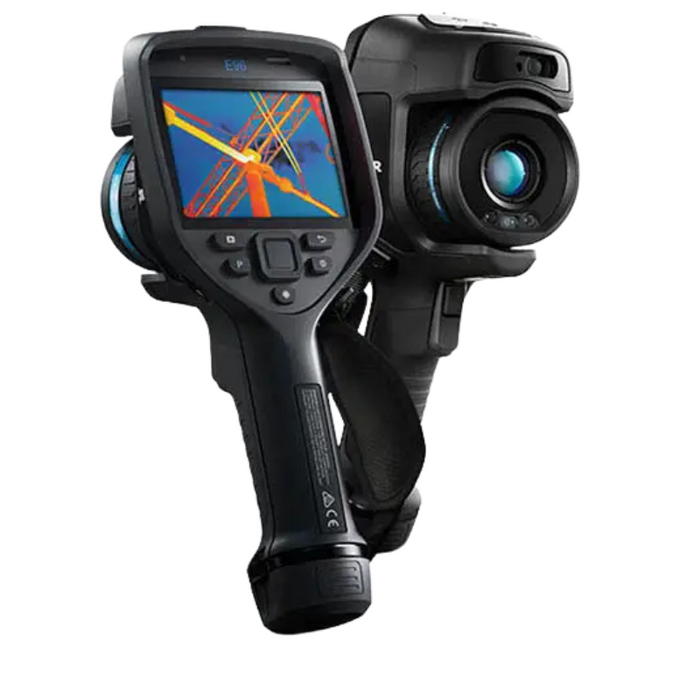

The Teledyne FLIR E96 Dual FOV 14° + 24° Thermal Imager delivers advanced thermal imaging capabilities with a single lens offering two field-of-view options. Equipped with FLIR FlexView technology, this imager allows seamless switching between a wide-angle and telephoto view at the touch of a button—eliminating the need to manually change lenses and minimizing the risk of damage from dust or debris.

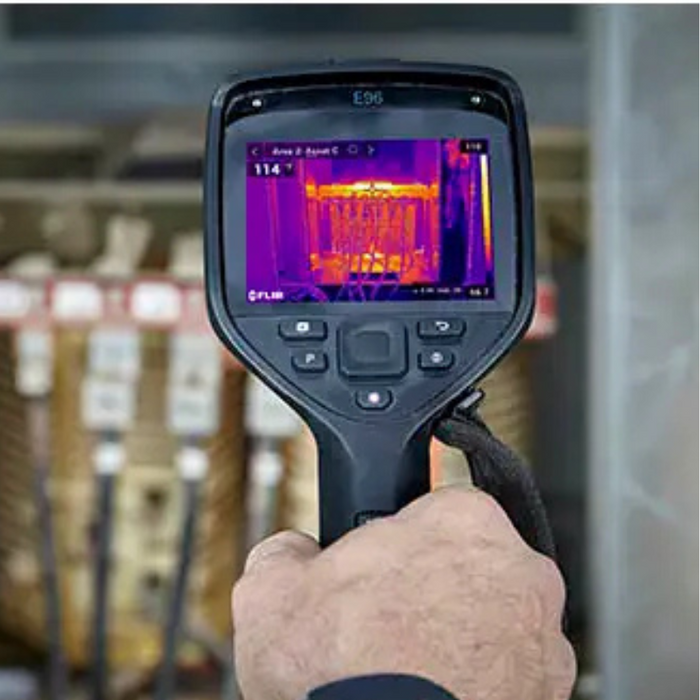

Built for high-performance inspections, the E96 is ideal for surveying high-voltage and hard-to-reach components with clarity and precision. Its high IR resolution of 640 x 480, radiometric zoom, and fast 1-second toggle speed ensure rapid and accurate thermal diagnostics in both electrical and mechanical applications. With robust construction and intuitive functionality, this imager is a critical tool for professionals demanding efficiency and safety.
What's Included:
- 1 - Power Supply
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Adapter
- 1 - USB Type-C to USB Type-C Cable
- 1 - Front Protection Fastener
- 1 - Left Hand Strap Bracket
- 1 - Right Hand Strap Bracket
- 1 - Torx T10 Wrench
- 1 - Carabiner Hook
- 1 - Front Protection
- 1 - Hand Strap
- 1 - Lanyard Strap
- 1 - Lens Cap Strap
- 1 - Wrist Strap
- 2 - Battery
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Infrared Camera with Lens
- 1 - Front Lens Cap
- 1 - Front and Rear Lens Cap (only for extra lenses)
- 1 - FLIR Thermal Studio
Features
Dual Field of View Flexibility
Switch seamlessly between 14° and 24° views with a single lens, offering both wide-area scanning and detailed inspections without manual lens changes.
High-Resolution Imaging
Delivers crisp thermal images with 640 x 480 resolution, enabling detailed detection of temperature anomalies in complex environments.
Radiometric Zoom
Enhances inspection accuracy by allowing magnified thermal measurements without compromising radiometric data.
Fast Toggle Technology
Switch between FOVs in just one second, streamlining your workflow and saving critical time during inspections.
Robust Safety Design
Reduces exposure to hazardous environments by allowing inspections from a safe distance using telephoto capabilities.
Wide Temperature Range
Measures temperatures from -20°C to 1500°C, accommodating both low-heat and high-heat applications.
Integrated FLIR Thermal Studio Software
Included software supports image analysis, report generation, and inspection data organization.
What's Included
Included with Your Purchase:
- 1 - Power Supply
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Adapter
- 1 - USB Type-C to USB Type-C Cable
- 1 - Front Protection Fastener
- 1 - Left Hand Strap Bracket
- 1 - Right Hand Strap Bracket
- 1 - Torx T10 Wrench
- 1 - Carabiner Hook
- 1 - Front Protection
- 1 - Hand Strap
- 1 - Lanyard Strap
- 1 - Lens Cap Strap
- 1 - Wrist Strap
- 2 - Battery
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Infrared Camera with Lens
- 1 - Front Lens Cap
- 1 - Front and Rear Lens Cap (only for extra lenses)
- 1 - FLIR Thermal Studio
Specifications
-
IR Resolution: 640 x 480
-
Image Frequency: 30 Hz
-
Thermal Sensitivity (NETD): <40 mK at 86°F
-
Field of View: Dual FOV 14° + 24°
-
Temperature Measurement Range: -20°C to 1500°C
-
Radiometric Zoom: Yes
-
Toggle Time Between FOVs: 1 second
-
Included Software: FLIR Thermal Studio
FAQ
Q: Can I switch between lenses manually on the E96?
A: No manual lens change is needed—the built-in DFOV lens allows quick toggling between 14° and 24° views.
Q: What temperature range does the E96 cover?
A: It supports a wide temperature range from -20°C up to 1500°C.
Q: What’s the resolution of the thermal sensor?
A: The E96 offers 640 x 480 IR resolution for sharp, clear thermal images.
Q: Is software included for analyzing thermal images?
A: Yes, the unit includes FLIR Thermal Studio software for detailed image analysis and reporting.
Resources
Documents:
