The Teledyne FLIR A700-SS-DFOV-42-24 Smart Sensor Fixed-Mount Thermal Imager delivers robust, high-performance thermal imaging with advanced computing capabilities built right into the device. Ideal for monitoring critical infrastructure, ensuring product quality, or enabling early fire detection, this thermal camera features intelligent analytics that operate directly on the camera for real-time results. The smart sensor model supports seamless integration with web applications and SCADA systems through multiple connectivity protocols.

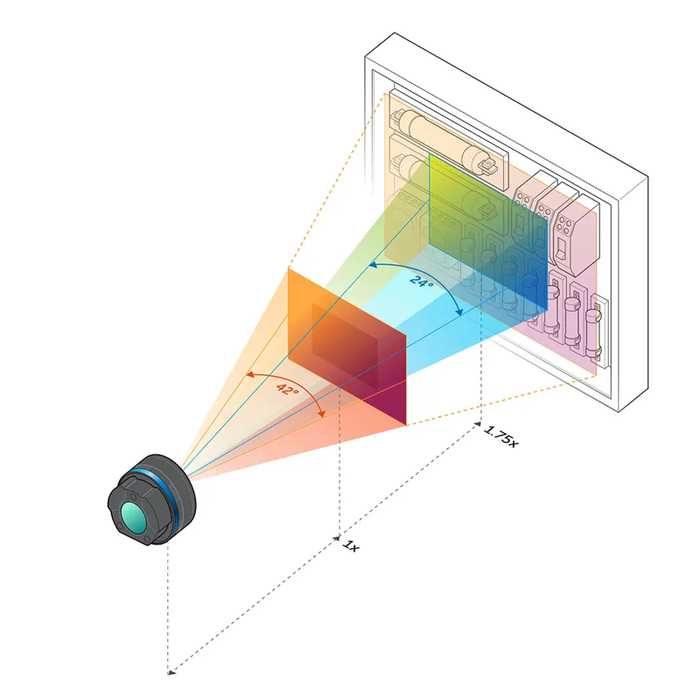

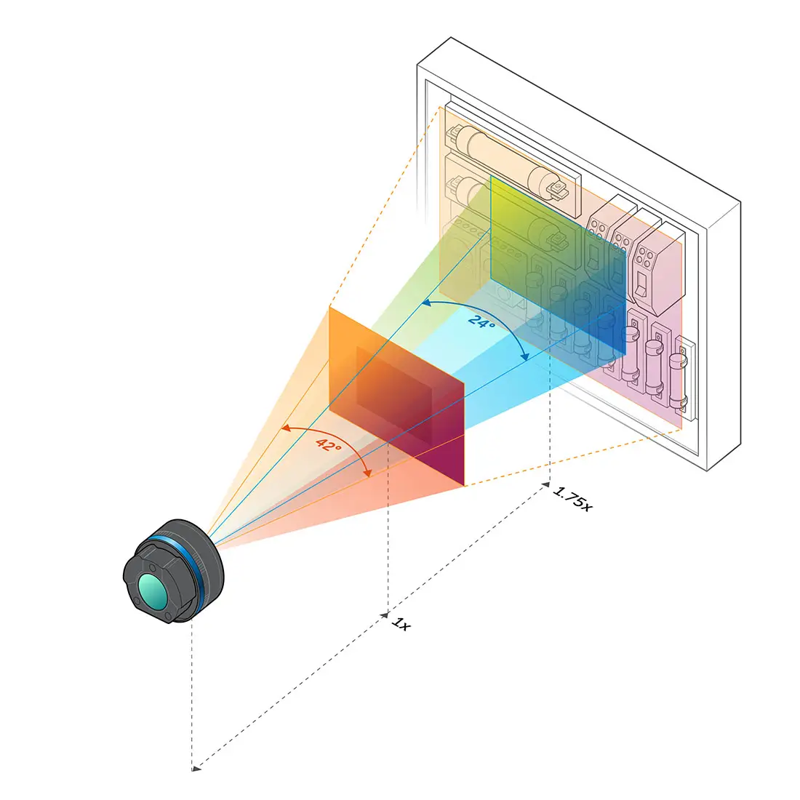

This model includes the innovative FlexView Dual Field of View 42°/24° Lens, which improves both image detail and measurement accuracy without compromising usability. A wide FOV enables rapid area scanning, while a narrow FOV enhances resolution and precision for targeted monitoring. Operators can easily toggle between fields of view with a simple push/pull motion, increasing both flexibility and safety, especially when operating in environments with arc flash hazards.
What's Included:

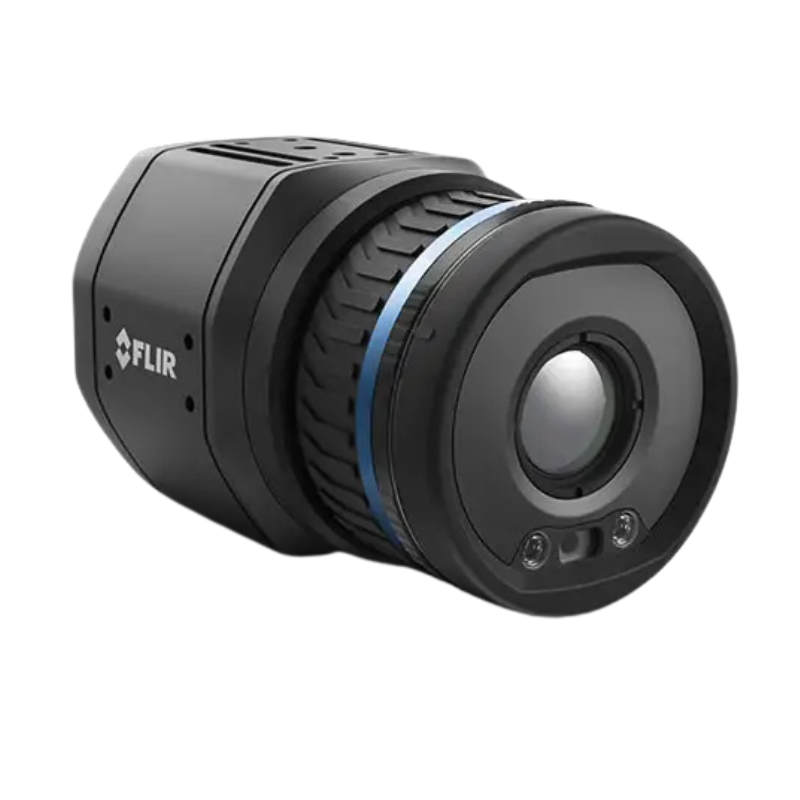

- FLIR A700 Smart Sensor Thermal Camera

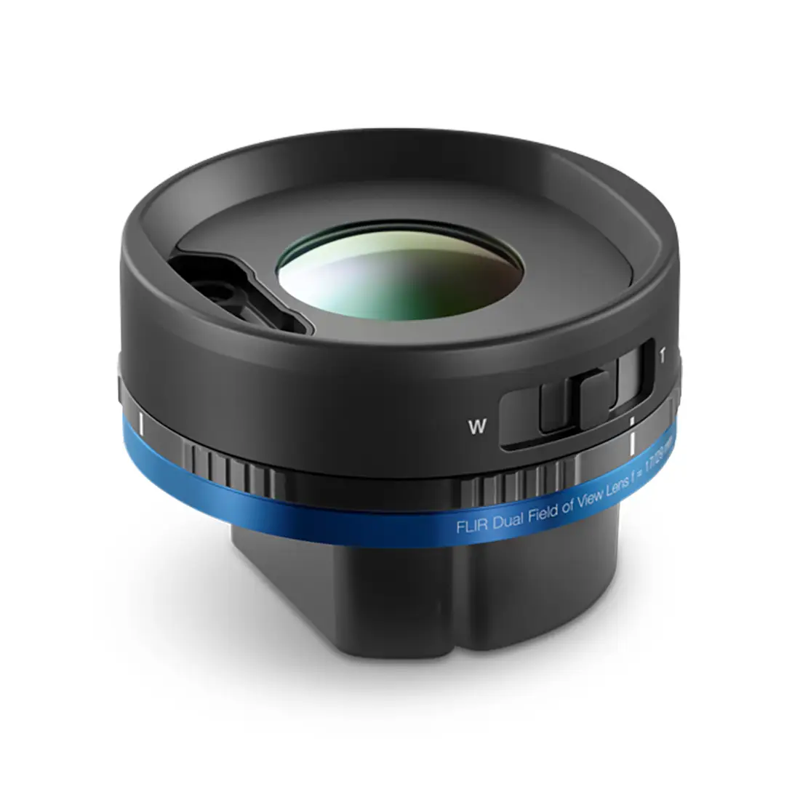

- FlexView DFOV 42°/24° Lens
- Ethernet connectors
- Mounting hardware
- Quick Start Guide
Features
Reliable Thermal Imaging for Critical Applications
Engineered for scenarios where thermal precision matters, including automation and safety-critical monitoring environments.
Smart Sensor Capabilities
Built-in temperature measurement, alarms, and edge analytics ensure immediate actionable insights directly from the camera.
Dual Field of View Lens
FlexView DFOV allows seamless switching between wide 42° and narrow 24° fields for convenience and precision.
Enhanced Safety Operation
The narrow FOV enables safe operation from a distance, keeping users outside hazardous arc flash zones.
Intuitive Focus Options
Supports one-shot contrast, motorized, and manual focusing modes for maximum flexibility.
Easy System Integration
Supports EtherNet/IP, Modbus TCP, MQTT, and REST API protocols for efficient integration into automation systems.
Advanced Alarm Features
Trigger alarms based on temperature thresholds or internal camera conditions, with outputs via multiple industrial protocols.
Streaming and Imaging Versatility
RTSP-enabled with dual streams for IR, MSX, and visual feeds, encoded in H.264, MPEG4, or MJPEG formats.
What's Included
Included with Your Purchase:
- FLIR A700 Smart Sensor Thermal Camera
- FlexView DFOV 42°/24° Lens
- Ethernet connectors
- Mounting hardware
- Quick Start Guide
Specifications
-
IR Resolution: 640 x 480
-
Visual Resolution: 1280 x 960
-
Focal Plane Array/Spectral Range: 30 mK to 50 mK (lens dependent)
-
Lens: FlexView DFOV 42°/24°
-
IR Camera Focus: One-shot contrast, motorized, manual
-
Image Frequency: 30 Hz
-
Object Temperatures: -4° to 248°F, 32° to 1202°F, 572° to 3632°F
-
Accuracy: ± 3.6°F / ± 2% of reading
-
Standard Functions: 10 spotmeters, 10 boxes, 3 Deltas, 1 isotherm, 1 iso-coverage, 1 reference temperature
-
Hot/Cold Detection: MAX/MIN values and positions shown in measurement boxes
-
Measurement Frequency: ~10 Hz
-
Read-Out Protocols: EtherNet/IP, Modbus TCP, MQTT, REST API
-
Dynamic Range: 16-bit
-
Alarm Function: Based on measurements, digital input, or camera temperature
-
Alarm Output: EtherNet/IP, Modbus TCP, REST API, e-mail
-
Streaming Protocol: RTSP (Unicast/Multicast, multiple streams)
-
Encoding Formats: H.264, MPEG4, MJPEG
-
Video Sources: IR, Visual, MSX
-
Ethernet Interface: Wired (M12 8-pin), optional Wi-Fi via RP-SMA
-
Ethernet Type/Standard: 1000 Mbps, IEEE 802.3
-
Power Supply: PoE IEEE 802.3af Class 3
FAQ
Q: What is the benefit of the FlexView DFOV lens?
A: It allows users to switch between a wide and narrow field of view for either broad scanning or detailed inspection, improving both coverage and accuracy.
Q: Can this camera be integrated into industrial networks?
A: Yes, it supports EtherNet/IP, Modbus TCP, MQTT, and REST API for seamless integration into SCADA and automation systems.
Q: How does the camera improve safety?
A: The narrow FOV enables monitoring from a safe distance, helping operators stay outside arc flash zones during inspection.
Q: What video output formats are supported?
A: The A700 supports H.264, MPEG4, and MJPEG video encoding with RTSP streaming capability.
