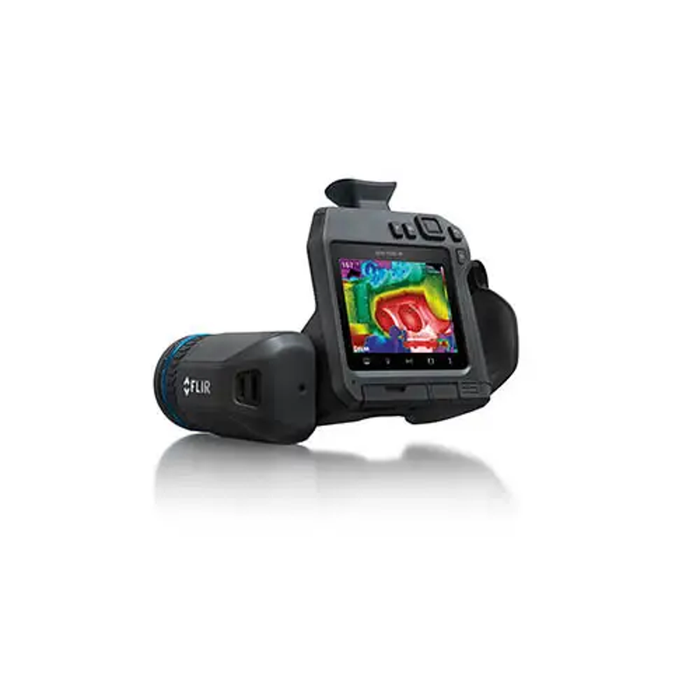

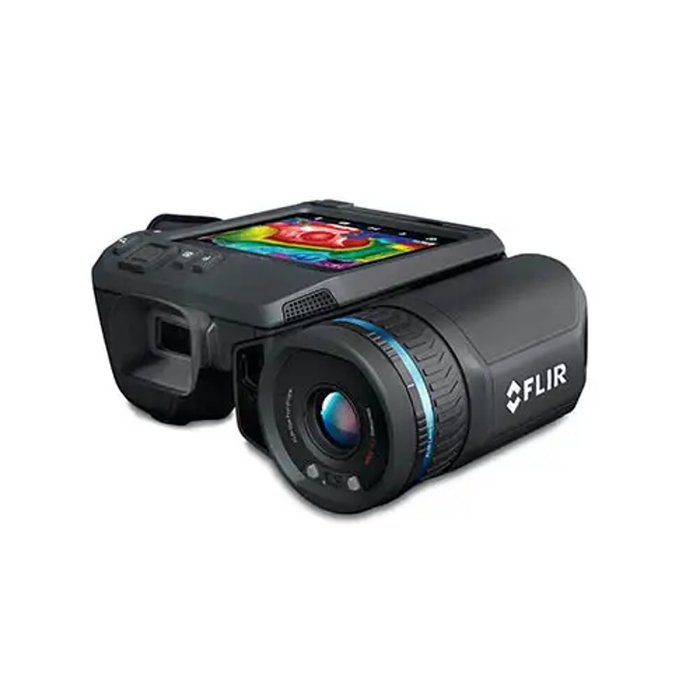

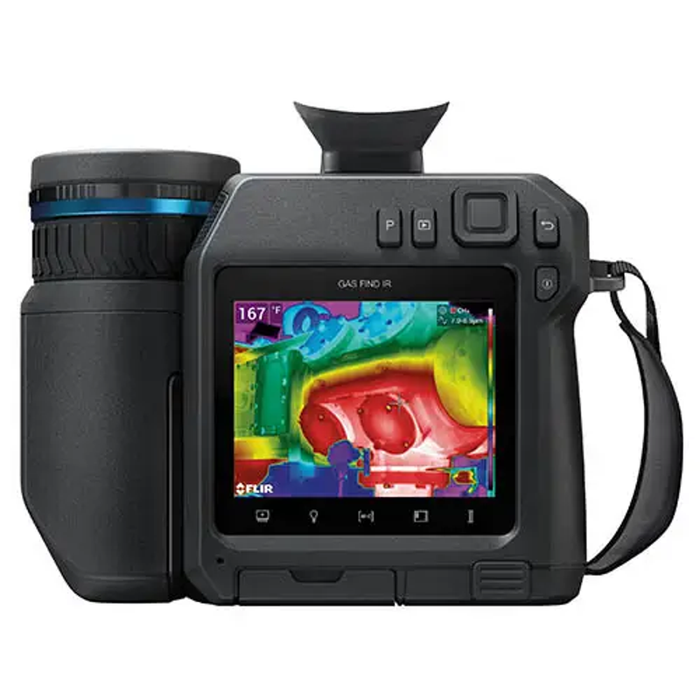

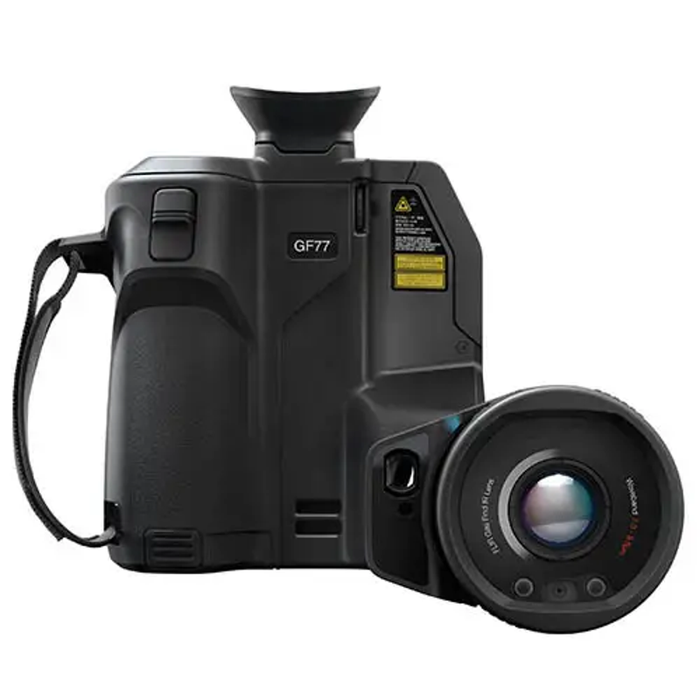

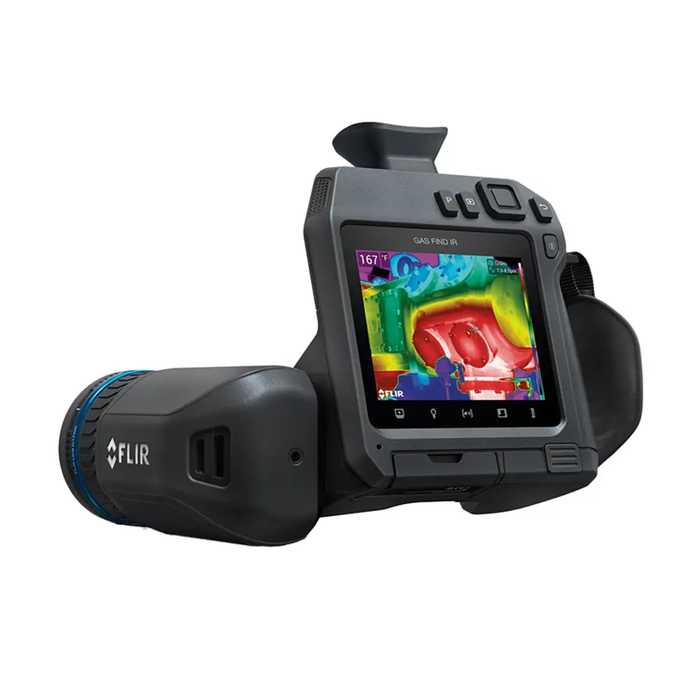

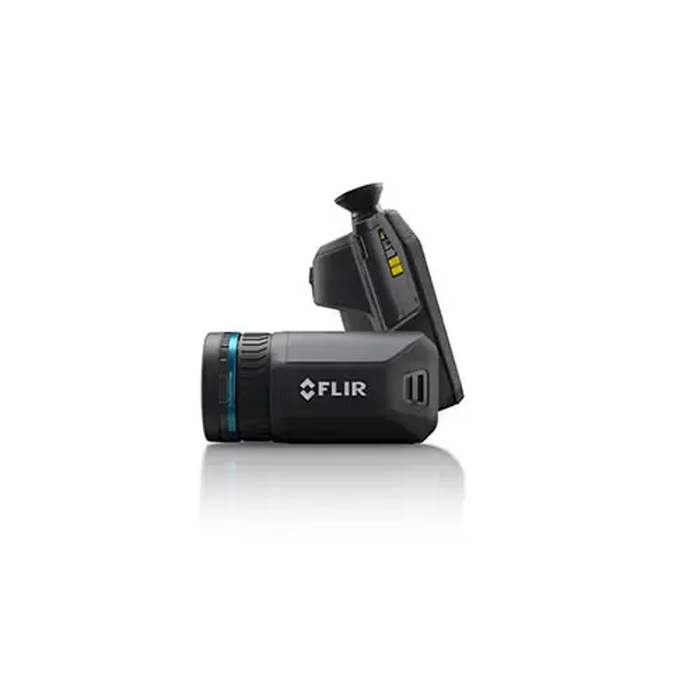

The Teledyne FLIR GF77-25-LR Thermal Imaging Camera with Industrial Gas Detection and 25° Low-Range Lens is a groundbreaking, uncooled optical gas imaging solution designed to detect methane (CH4), sulfur hexafluoride (SF6), ethylene (C2H4), ammonia (NH3), and a wide range of gas emissions. Offering both radiometric temperature measurement and gas detection capabilities, this versatile tool is perfect for electric utilities, oil and gas operations, manufacturing, agriculture, and emergency services.
Featuring an award-winning T-Series design, the GF77-25-LR includes a vivid 4-inch touchscreen LCD, a 180° rotating optical block, and an integrated eyepiece for clear viewing in bright conditions. With its ability to switch lenses, operators gain unmatched flexibility in detecting different gases while benefiting from fast, efficient inspections.
What's Included:
- 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
- 1 - 25° Low-Range Lens
- 1 - Power Supply for Battery Charger
- 1 - Power Supply 15 W/3 A
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI and PD Adapter
- 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
- 1 - Lens Cap Strap
- 1 - Lens Cleaning Cloth
- 1 - Neck Strap
- 1 - Small Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lens Cap Front
Features
Combined Radiometric and Gas Detection
Detects gas emissions while simultaneously measuring accurate temperatures from -20°C to 500°C with ±3°C or 3% accuracy.
Interchangeable Lens Versatility
Supports multiple lenses to detect an expansive list of gases, enabling users to tailor inspections to their needs.
Teledyne FLIR Cloud Connectivity
Automatically transfers, stores, backs up, and shares images to reduce reporting time and streamline operations.
Advanced Visualization and Measurement
Visualizes CH4, SF6, NH3, and C2H4 emissions and uses a built-in thermal imager to inspect critical components.
Safe Distance Scanning
Identifies leaks from a safe distance, helping technicians track emissions back to the source quickly.
Sunlight-Optimized Viewing
Easily switches to a viewfinder mode for clear image viewing in bright, sunny environments.
One-Touch Level/Span Adjustment
Enhances gas detection contrast with a simple, automated adjustment feature.
High Sensitivity Mode (HSM)
Improves the detectability of small leaks, revealing otherwise invisible emissions.
Laser-Assisted Autofocus
Delivers pinpoint focus accuracy on target areas to ensure sharp imaging.
Built-In Area Measurement Tool
Calculates tank levels and volumes directly from thermal images for efficient inspections.
Route Creation and Workflow Optimization
Optional Teledyne FLIR Thermal Studio Pro and Route Creator software streamline inspection processes (sold separately).
Automatic GPS Tagging
Every captured image is geotagged for easy tracking and reporting.
Wi-Fi Connectivity
Instantly connects to mobile devices for fast image transfers and enhanced reporting.
Included 25° Low-Range Lens
Specially designed for detecting methane, nitrous oxide, propane, sulfur dioxide, R-134a, and R-152a gases.
What's Included
Included with Your Purchase:
- 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
- 1 - 25° Low-Range Lens
- 1 - Power Supply for Battery Charger
- 1 - Power Supply 15 W/3 A
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI and PD Adapter
- 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
- 1 - Lens Cap Strap
- 1 - Lens Cleaning Cloth
- 1 - Neck Strap
- 1 - Small Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lens Cap Front
Specifications
-
IR Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Spectral Range: 9.5 µm - 12 µm
-
Temperature Measurement Range: -20°C to 500°C
-
Temperature Accuracy: ±3°C or 3%
-
Display: 4-inch touchscreen LCD
-
Optical Block Rotation: 180°
-
Connectivity: Wi-Fi, USB-C
-
GPS: Built-in GPS tagging
-
Focus: Laser-assisted autofocus
-
Modes: High Sensitivity Mode (HSM)
-
File Storage: 8 GB SD Card
FAQ
Q: Can the GF77-25-LR detect multiple gases?
A: Yes, it can detect gases like methane, sulfur hexafluoride, ethylene, ammonia, and many more by using interchangeable lenses.
Q: Does the camera also measure temperatures?
A: Absolutely, it offers radiometric temperature measurements from -20°C to 500°C with high accuracy.
Q: Can I use this camera outdoors in bright sunlight?
A: Yes, the integrated viewfinder and rotating optical block allow clear imaging even in direct sunlight.
Q: Is software required for route planning included?
A: No, Teledyne FLIR Thermal Studio Pro and Route Creator are optional add-ons available separately.
Q: How does the camera transfer images?
A: Images can be transferred wirelessly via Wi-Fi or by using the included USB-C cable.
