The Teledyne FLIR T840-DFOV-24-42 is a high-performance handheld thermal imager designed for accurate, efficient inspection of electrical and mechanical systems. Built for comfort and safety, its 180° tilting optic block and ergonomic design allow users to scan overhead or at low angles without strain. Its high-resolution 464 x 348 detector and advanced features such as MSX image enhancement, UltraMax, and laser-assisted autofocus ensure sharp, clear thermal images with precision temperature measurements in any environment.

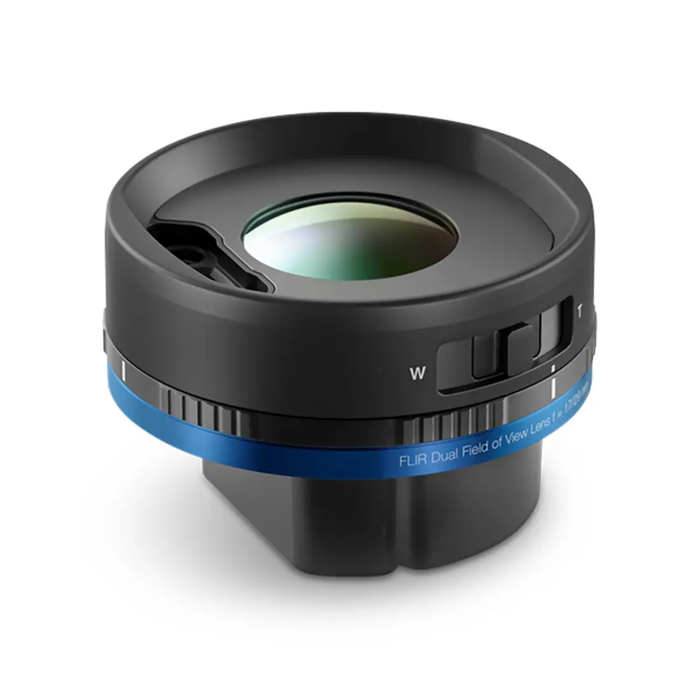

Equipped with the innovative FlexView Dual FOV 42°/24° lens, this model lets users quickly switch between wide and narrow views with a simple push-pull toggle—ideal for scanning large areas or zeroing in on problem spots. With FLIR Thermal Studio PRO and the Route Creator Plugin, professionals can streamline inspections by uploading predefined survey routes and automatically organizing findings with embedded GPS and METERLiNK data. Fast image capture, intuitive touch controls, and FLIR Ignite cloud integration ensure you can capture, analyze, and share data with minimal downtime.
What's Included:
- FLIR T840 Thermal Camera with FlexView DFOV 42°/24° Lens
- FLIR Thermal Studio PRO Software
- Route Creator Plugin
- Battery and Charger
- USB Cable
- Carrying Case
- Standard Documentation
Features

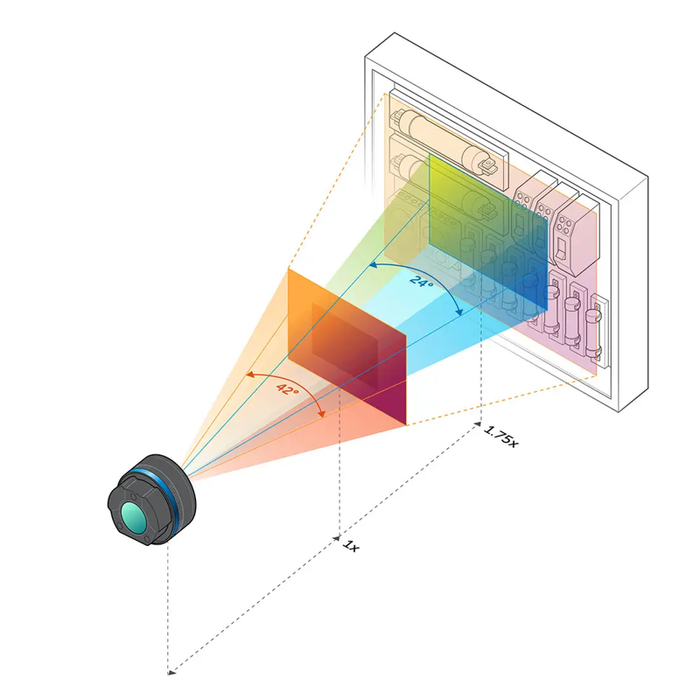

Advanced Dual Field-of-View Lens
Switch seamlessly between wide-angle and narrow FOVs for efficient scanning and detailed thermal analysis without swapping lenses.
Ergonomic, Rotating Optics
180° rotating optical block enables inspections from any angle with less physical strain.
High Sensitivity and Accuracy
Thermal sensitivity down to 30 mK and laser-assisted autofocus ensure precise temperature readings every time.
MSX and UltraMax Imaging
Enhance image clarity using FLIR’s patented MSX edge enhancement and UltraMax for up to 645,888 pixels.
Intelligent Navigation
Route Creator plugin allows preloaded inspection plans; navigate and organize inspection steps directly from the camera.
Flexible Data Capture
Capture thermal and visual images, voice notes, sketches, and GPS tagging all from the camera interface.
Wireless Connectivity
Upload imagery to FLIR Ignite cloud for secure sharing, storage, and fast integration into reports.
Built-In Viewfinder
Integrated eyepiece viewfinder supports outdoor operation in bright sunlight.
Laser Distance Meter
Accurately measure object distance and embed measurements into images and reports.
Rugged and Portable
Compact, lightweight design reduces fatigue during extended inspections while improving durability.
What's Included
Included with Your Purchase:
- FLIR T840 Thermal Camera with FlexView DFOV 42°/24° Lens
- FLIR Thermal Studio PRO Software
- Route Creator Plugin
- Battery and Charger
- USB Cable
- Carrying Case
- Standard Documentation
Specifications
-
IR Resolution: 464 x 348 (645,888 with UltraMax)
-
Object Temperature Range: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
-
Digital Zoom: 1 to 6x continuous
-
Thermal Sensitivity/NETD: 30 mK at 86°F (42° lens)
-
Image Frequency: 30 Hz
-
Lens: FlexView DFOV 42°/24° (automatic identification)
-
Focus: Manual, one-shot contrast, continuous with laser distance meter
-

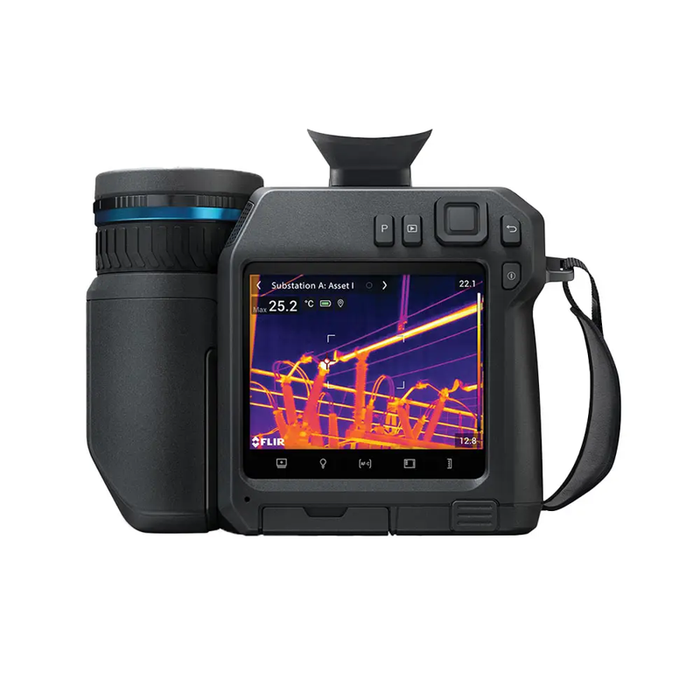

Display: 4 in., 640 x 480 LCD touchscreen with auto-rotation
-
Digital Camera: 5 MP with LED lamp
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Image Modes: IR, visual, MSX, Picture-in-Picture (resizable/movable)
-
Measurement Presets: No measurement, Center spot, Hot spot, Cold spot, User presets
-
Laser Pointer and Distance Meter: Yes
-
Annotations: Voice, text, sketch, GPS, METERLiNK-enabled
-
Storage: Removable SD card, FLIR Ignite cloud
-
Video Recording: Radiometric (.csq), H.264
-
Video Streaming: H.264/MPEG-4 (Wi-Fi), MJPEG (UVC/Wi-Fi)
-
Interfaces: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
FAQ
Q: What is the advantage of the FlexView DFOV lens?
A: It allows you to instantly switch between wide and narrow fields of view for faster inspections without changing lenses.
Q: Can the camera be used outdoors in bright sunlight?
A: Yes, it includes an integrated eyepiece viewfinder specifically for high-brightness environments.
Q: How is data transferred or shared from the camera?
A: Images and videos can be uploaded wirelessly to FLIR Ignite cloud for sharing and reporting.
Q: What software is included for post-processing?
A: FLIR Thermal Studio PRO and Route Creator Plugin are included for advanced reporting and route planning.
Q: How does the laser distance meter assist inspections?
A: It enables accurate distance measurements that are automatically embedded into image metadata for precise documentation.
