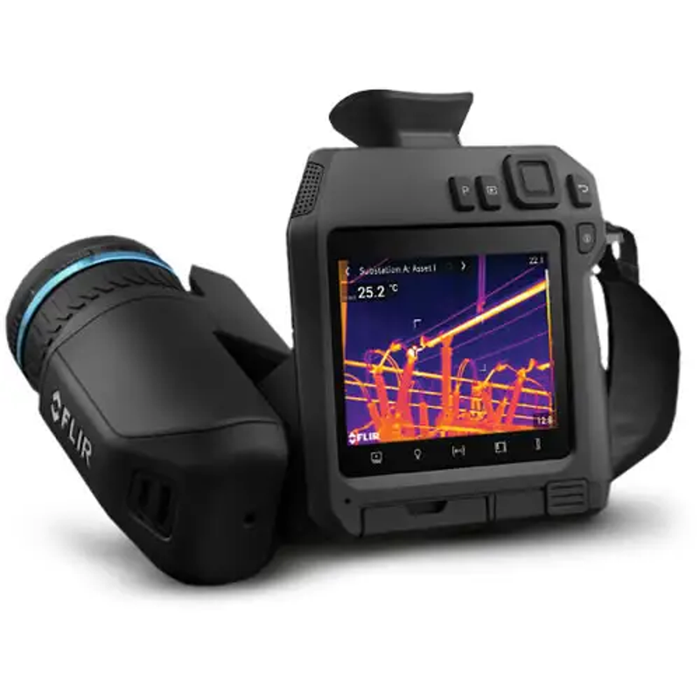

The Teledyne FLIR T865-24-14-42 High-Performance Thermal Camera is engineered for professionals who demand exceptional thermal imaging clarity and accuracy. This advanced system delivers precise temperature measurements and sharp visuals, featuring MSX and UltraMax imaging enhancements for improved target detail. Its tilting optical block enables users to inspect hard-to-reach areas with ease and safety, minimizing strain while maximizing accuracy.
The T865 camera is designed with ergonomic efficiency and technical precision, making it a vital tool for predictive maintenance and equipment monitoring. It features laser-assisted autofocus, 1-Touch Level/Span for fast contrast adjustments, and compatibility with interchangeable AutoCal lenses. The system supports voice annotations, customizable folders, and Wi-Fi sync to streamline workflows and reporting. With powerful analysis and data organization tools via FLIR Thermal Studio Pro, users can inspect, document, and act with confidence and speed.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
Features

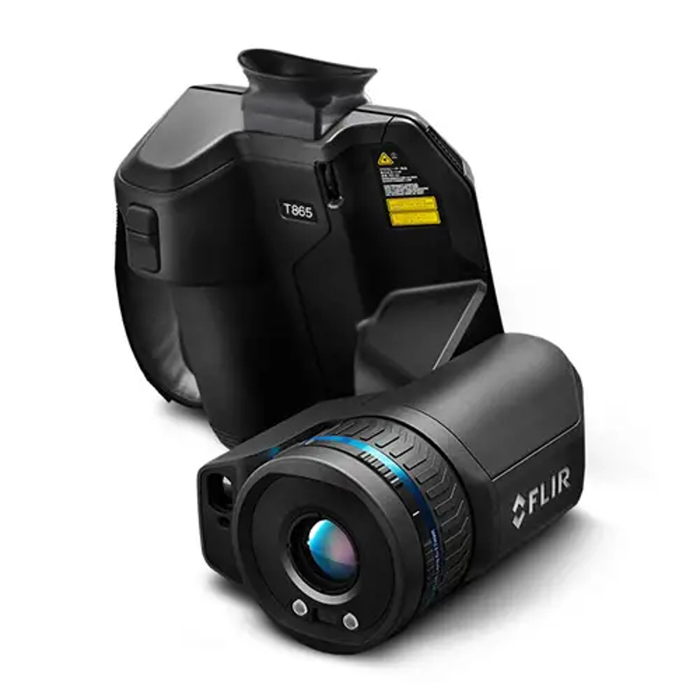

Interchangeable 14°, 24°, and 42° Lenses
Provides flexibility to inspect large areas or zoom in on small targets with precise thermal clarity.
Streamlined Inspections with Route Creator
Plan and upload inspection routes directly to the camera using Teledyne FLIR Route Creator for efficient asset monitoring.
Thermal Studio Integration
Organize and automate reporting tasks with easy file transfers to Teledyne FLIR Thermal Studio software.

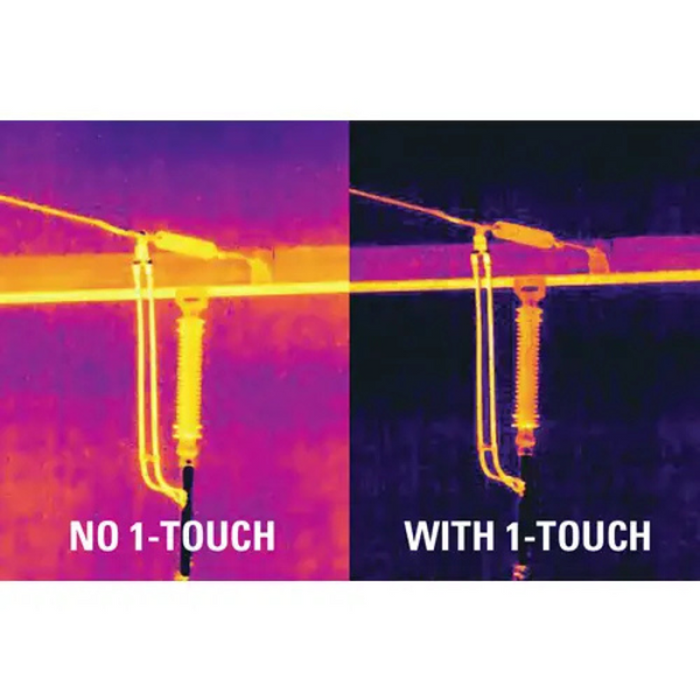

Laser-Assisted Autofocus and 1-Touch Level/Span
Quickly adjust focus and contrast to ensure sharp images and precise measurements.
180° Rotating Optical Block
Ergonomically designed for imaging overhead or down low without discomfort.
Teledyne FLIR Vision Processing
Combines MSX, UltraMax, and filtering algorithms for industry-leading image detail.
Built-in Reporting Features
Includes voice annotations, custom folders, and wireless syncing for smooth data handling.

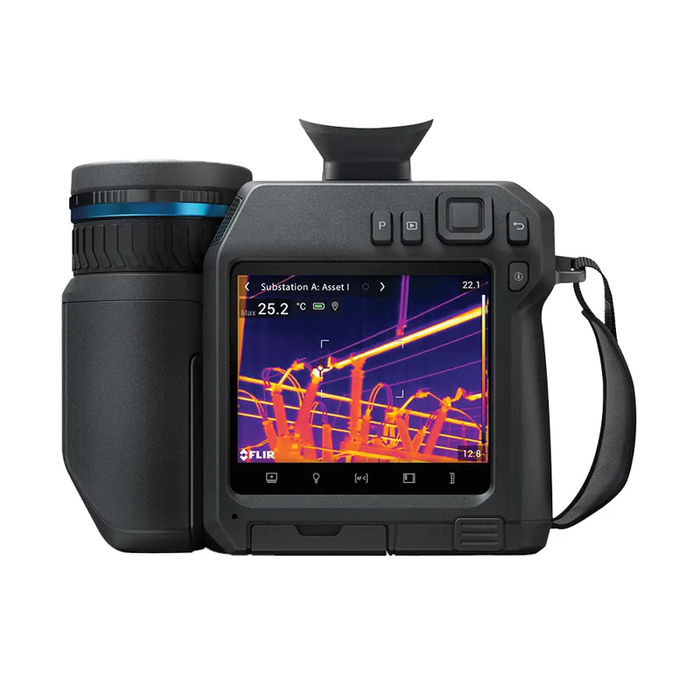

Large 4-Inch Touchscreen and Integrated Eyepiece
View images clearly indoors or outdoors in any lighting condition.
High Accuracy Measurements
Delivers temperature accuracy as tight as ±1°C or ±1% for confident diagnostics.
Wi-Fi and Bluetooth Connectivity
Transfer files, stream video, and sync apps wirelessly for on-the-go analysis.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
Specifications
-
IR Resolution: 640 x 480 (307,200 pixels / 1,228,800 pixels with UltraMax)
-
Detector Pitch: 12 μm
-
Object Temperature Range: -40°F to 248°F, 32°F to 1202°F, 572°F to 3632°F
-
Digital Zoom: 1–8x continuous
-
Macro Mode: 50 μm minimum focus distance (24° lens)
-
Thermal Sensitivity: <30 mK @ 30°C (42° lens)
-
Image Frequency: 30 Hz
-
Spectral Range: 7.5 to 14.0 μm
-
Focus Options: Continuous, One-shot LDM, One-shot contrast, Manual
-
Display: 4-inch 640 x 480 touchscreen LCD with auto-rotation
-
Digital Camera: 5 MP with built-in LED
-
Image Modes: Infrared, Visual, MSX, Picture-in-picture
-
Measurement Presets: Center spot, Hot/Cold spot, User presets
-
Voice Annotation: 60 seconds via built-in mic or Bluetooth
-
GPS: Automatic image tagging
-
Storage: Removable SD card, JPEG with measurement data
-
Radiometric Video: Real-time recording in .csq format
-
Streaming: UVC, H.264, MJPEG via Wi-Fi
-
Battery: Li-ion, ~4 hours of operation at 77°F
-
Operating Temperature: 5°F to 122°F
-
Durability: 25 g shock, 2 g vibration, IP54 rated
FAQ
Q: What imaging modes does the T865 support?
A: The camera supports infrared, visual, MSX, and resizable picture-in-picture modes.
Q: Can I record radiometric video with this camera?
A: Yes, it supports real-time radiometric recording in .csq format.
Q: What is the battery runtime?
A: The Li-ion battery provides approximately 4 hours of operation at 77°F.
Q: Is the T865 compatible with other FLIR lenses?
A: Yes, it supports AutoCal interchangeable lenses, including optional telephoto lenses.
