The Teledyne FLIR T865-24-6 High-Performance Thermal Camera is engineered for precise, non-contact inspections in demanding environments. Designed with a 180° rotating optical block and ergonomic body, it enables comfortable use when assessing critical systems from any angle or position. The camera includes both 24° and 6° lenses to handle wide or long-range thermal imaging applications, making it ideal for inspecting small targets at a distance without sacrificing accuracy.
With features like MSX and UltraMax technology, laser-assisted autofocus, and exceptional thermal resolution, the T865-24-6 delivers incredibly sharp thermal images for identifying and diagnosing problems faster. The integrated FLIR Inspection Route, combined with FLIR Thermal Studio Pro software, allows technicians to capture, organize, and analyze data efficiently—streamlining preventative and predictive maintenance operations.
The system is also fully equipped for on-the-go operation with built-in voice annotations, customizable folders, and FLIR Ignite cloud upload functionality, ensuring data is securely transferred and reports are automatically generated for rapid decision-making.
What's Included:
- FLIR T865 Thermal Camera
- 24° Lens
- 6° Lens
- FLIR Thermal Studio Pro Software
- Hard Transport Case
- Battery and Charger
- Power Supply
- USB Cable
- SD Card
- Quick Start Guide
Features
Dual-Lens Flexibility
Includes 24° and 6° lenses for wide-angle and telephoto imaging, enabling clear visuals whether up close or from long distances.
Advanced Route Management
Supports FLIR Inspection Route for structured, repeatable inspections to increase accuracy and speed.
UltraMax and MSX Image Enhancements
Improves image clarity by quadrupling thermal pixel count and overlaying visible light detail for sharper visuals.
Laser-Assisted Autofocus
Ensures precise focus on targets, especially at long distances or in complex environments.

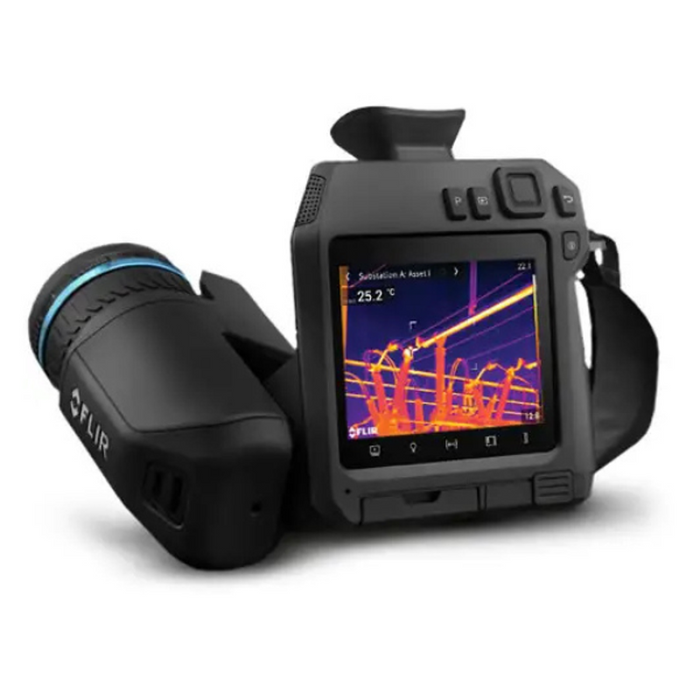

Rotating Optical Block
180° rotating lens head and ergonomic body help reduce operator strain during overhead or low-angle inspections.

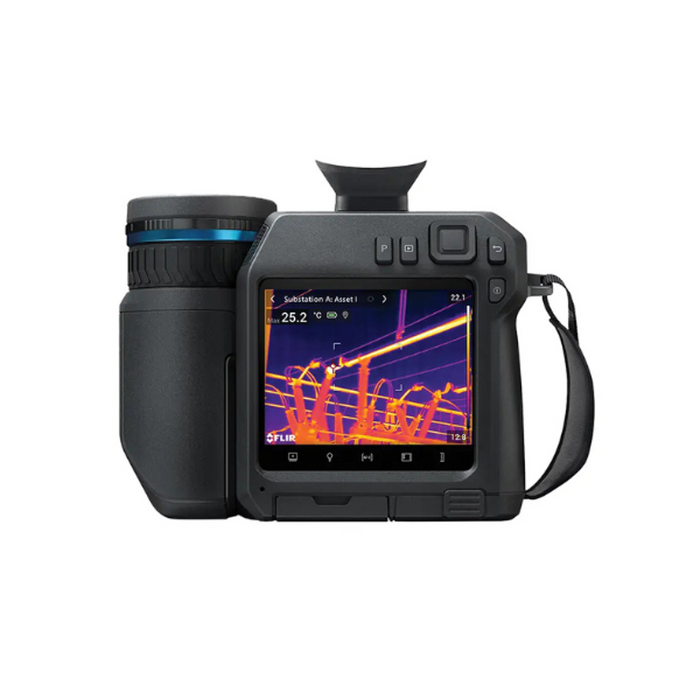

Robust Display and Viewfinder
Equipped with a 4-inch touchscreen LCD and an eyepiece viewfinder for optimal usability in any lighting condition.
Seamless Data Management
Automatically uploads files to FLIR Ignite cloud and syncs with Thermal Studio Pro for fast reporting.
Voice and Image Annotation
Enables in-field documentation with voice notes, sketches, and GPS tagging directly from the camera.
High Temperature Range and Accuracy
Measures from -40°C to 2000°C with accuracy as tight as ±1°C, making it ideal for extreme industrial applications.
What's Included
Included with Your Purchase:
- FLIR T865 Thermal Camera
- 24° Lens
- 6° Lens
- FLIR Thermal Studio Pro Software
- Hard Transport Case
- Battery and Charger
- Power Supply
- USB Cable
- SD Card
- Quick Start Guide
Specifications
-
IR Resolution: 640 x 480 (1,228,800 with UltraMax)
-
Image Frequency: 30 Hz
-
Object Temperature Ranges: -20°C to 120°C, 0°C to 650°C, 300°C to 2000°C
-
Detector Type: Uncooled microbolometer
-
Spectral Range: 7.5 to 14.0 μm
-
Display: 4 in. 640 x 480 pixel touchscreen LCD
-
Digital Camera: 5 MP with LED lamp
-
Zoom: 1 to 8x continuous digital zoom
-
Focus: Laser distance meter, manual, and automatic modes
-
Accuracy: ±1°C or ±1% depending on range
-
Minimum Focus Distance: 0.15 m (24° lens), 5.0 m (6° lens)
-
Image Storage: SD card and FLIR Ignite cloud
-
Video Recording: Radiometric (.csq), H.264 non-radiometric
-
Video Streaming: Compressed via UVC, H.264, or MJPEG
-
Battery Life: Approx. 4 hours
-
Operating Temperature: -15°C to 50°C
-
Protection Rating: IP54
FAQ
Q: What’s the difference between the 24° and 6° lenses?
A: The 24° lens is best for general use and wide scenes, while the 6° telephoto lens is ideal for distant or small target imaging.
Q: Does the camera come with software?
A: Yes, it includes FLIR Thermal Studio Pro and supports FLIR Route Creator for managing inspections.
Q: Can I use the camera in bright outdoor conditions?
A: Absolutely. It includes a viewfinder and high-brightness LCD to work effectively in sunlight.
Q: How is data uploaded and managed?
A: Files can be uploaded directly to FLIR Ignite and synced with FLIR Thermal Studio Pro for automated reporting.
Q: What’s the advantage of UltraMax?
A: UltraMax enhances image resolution and reduces noise by combining multiple thermal images for clearer detail and better measurement accuracy.
